DS18 DBPM100.MX Digital Bass Processor - Mexico Design

DS18 DBPM100.MX Digital Bass Processor (Mexico Design) is a compact, vehicle-friendly bass processor that lets you sculpt low-end output with precision, featuring a dual-knob dash remote for quick on-the-fly control.

• Operating Voltage: 8-17V — designed to cope with the typical automotive power range, ensuring consistent bass performance across voltage swings.
• Power Consumption: 0.24A — low current draw helps minimize parasitic load on the electrical system during bass-intensive use.
• Remote Turn-on (Input / Output): Yes — simplifies integration with head units and amplifiers, enabling automatic or manual activation of the processor.

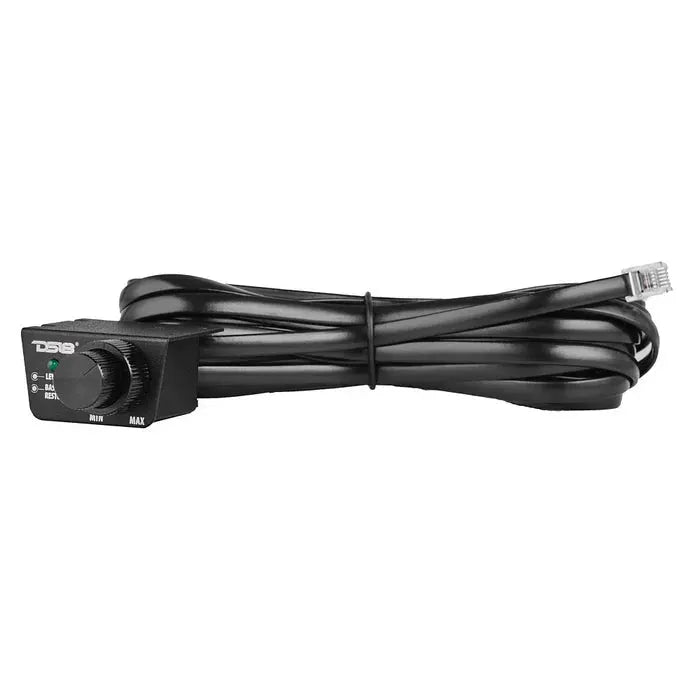

• Remote Level Control: Yes (Bass Enhancer) — adjust bass levels from the dash to dial in your preferred impact without reaching for the processor.
• Ground Isolation Switch: Yes (GND/ISO/200Ω) — provides flexible grounding options to reduce noise in diverse installation scenarios.
• RCA Connector Type: Tiffany (Silver) — high-quality connector standard for clean signal transfer.
• Frequency Response: 10Hz-20kHz — wide, flat-like response across the audible band to preserve nuance while bass shaping.
• Subsonic Infrasonic Cut-off: 35/50/80Hz (selectable) — removes ultra-low frequencies that can muddy bass, improving clarity and headroom.
• Gain: 0~8.8V — broad adjustment range to finely scale bass output to the rest of your system.
• Center Frequency (Sweep): 75Hz~120Hz; Q Factor (Wide): 1~3 — precise control over the bass potentiation region for tailoring impact vs. muddiness.
• Output Voltage Selectable: 5V/7.5V/10V — lets you match the processor’s output level to your amplifier chain.
• Output Impedance: 100 ohms — defined impedance for predictable interconnect performance.
• Input Impedance: 20 kΩ — high enough to work well with low-level sources while maintaining signal integrity.
• SNR: 120dB; THD: 0.0022% — low noise and ultra-low distortion for clean bass even at higher levels.
• Hi-Level Speaker Input: No — designed for low-level input, ensuring clean signal handling from compatible sources.
• Auto Turn-on Function: No — relies on the remote or head unit control for activation in installations that need it.
• LED Indicator: Power / Bass Enhancer / Clip — visual feedback to monitor power, boost state, and potential distortion in real time.
• PCB/Construction: Anti-corrosion coating on the PCB; Housing: Aluminum; Overall size: 4.72" × 4.4" × 1" (120 × 113 × 26 mm) — durable, compact design for flexible installation.
• Remote Level Control (additional): Yes — enhances the usability of bass adjustments during playback.
• Custom Features: Surface Mount Component Technology; Quality Control verified with Audio Precision instruments; Mexico Theme color option Red/Green/White.

In a real car audio build, the DBPM100.MX sits in the signal chain to boost and shape bass from the source with selectable infrasonic filtering, precise gain, and a dash-mounted remote for hands-on control. Its compact aluminum enclosure and corrosion-resistant PCB suit installs where space is tight or harsh environments are a consideration, while the LED indicators and high signal-to-noise performance help you dial in clean, impactful bass without sacrificing clarity.
