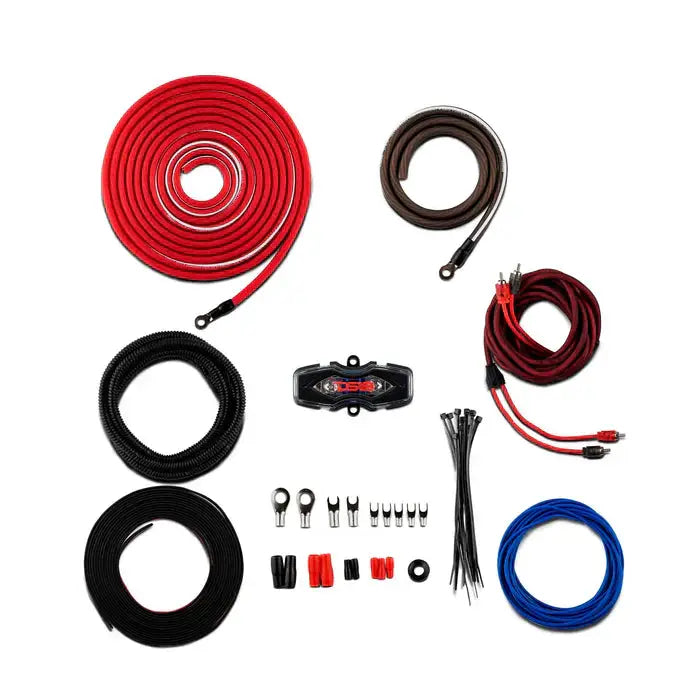

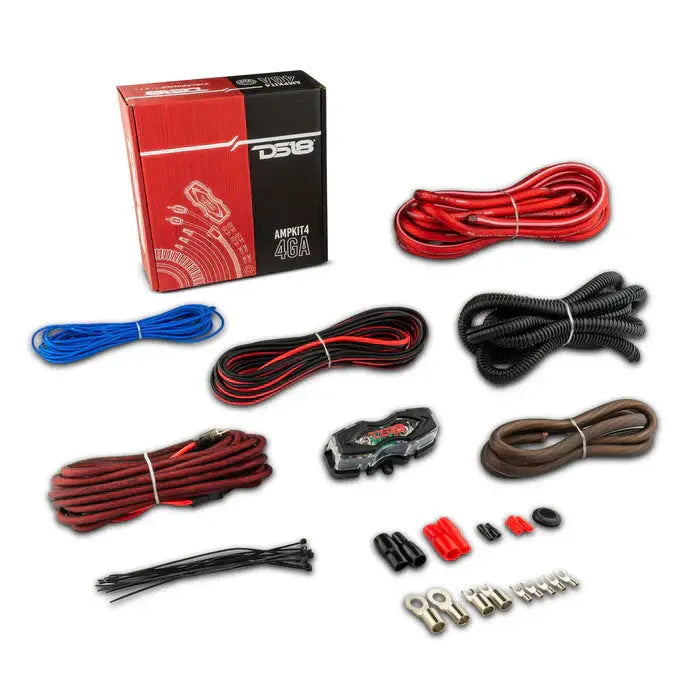

DS18 AMPKIT4 Advance 4-GA Installation Kit RED

DS18 AMPKIT4 Advance 4GA Installation Kit RED is a complete power, ground, and signal wiring bundle built for car audio amplifiers—delivering a clean, professional install with protected, high-current wiring.

• Mini-ANL Fuse Holder with 120A: Provides overcurrent protection for the power path, helping safeguard your amp and wiring during installs.
• 6 ft. 4GA Loom Tube: Shields and organizes heavy power and ground runs, reducing chafing and making routing easier in tight engine bays or trunks.
• Black Ground Cable: 3 ft, 21mm² (OD 10mm): Short, high-capacity ground run designed to minimize impedance and voltage drop back to the chassis.
• Red Power Cable: 17 ft, 21mm² (OD 10mm): Primary battery-to-amp power lead with ample length for common vehicle layouts and a high-current cross-section for reduced resistance.
• Twisted RCA Cable: 17 ft, Red/Black: Signal path designed to resist electrical interference and preserve audio clarity over a full-length run.
• Turn-On Remote Cable: 17 ft: Enables reliable amplifier turn-on control with flexible routing across the vehicle interior.
• Red/Black Speaker Cable: 17 ft, 1.31mm² x 2C, OD 3.2 x 6.4mm: Dual-conductor speaker wiring for amp outputs, sized for adequate current and straightforward installation.
• Product Weight: 3 lbs
• Product Dimensions: 7.75 x 7.75 x 3

The kit uses cables engineered to deliver maximum power transfer and minimize signal loss, supporting your amplifier’s performance with durable protection and organized routing—perfect for a clean, reliable high-current installation in a typical car audio build.
