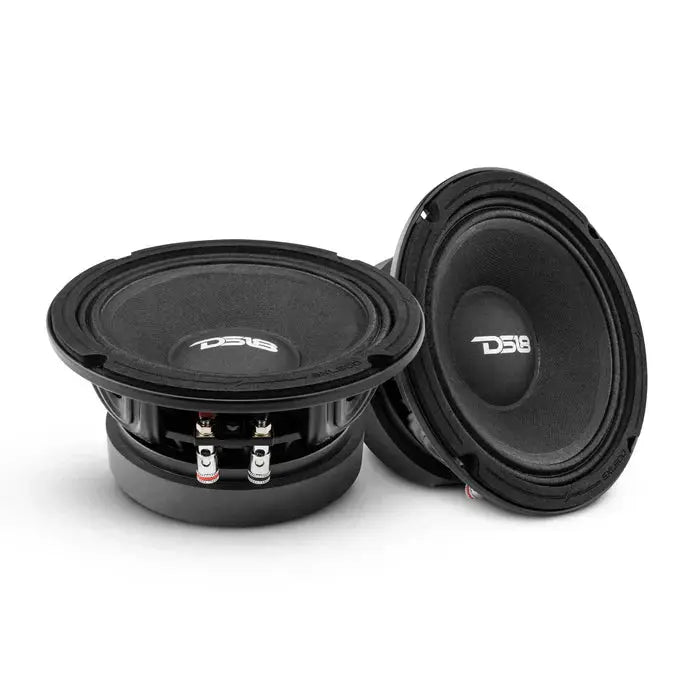

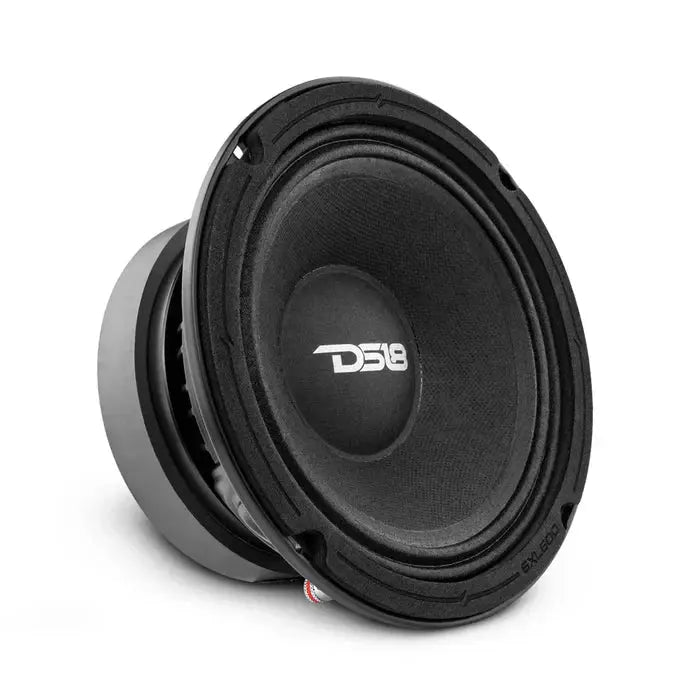

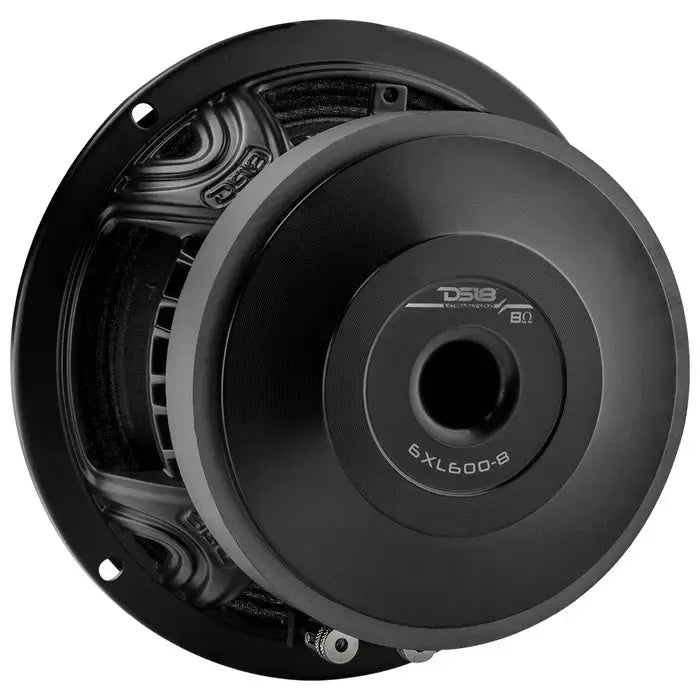

DS18 6XL600-8 XL 6.5" Mid-Range Loudspeaker 300 Watts Rms 8-Ohm (each)

The DS18 6XL600-8 is a 6.5” mid-range loudspeaker designed for high‑power car audio builds, delivering 300W RMS (600W max) with 97 dB sensitivity for assertive, articulate midrange. It’s built for enthusiasts who demand real‑world vocal clarity and reliable performance from a compact midrange driver.

• Nominal Diameter: 6.5" / 165mm — a standard midrange footprint suitable for a variety of enclosure and mounting options.
• Nominal Impedance: 8 Ohm — compatible with common car audio amplifiers and multi‑driver setups, helping manage load and heat across channels.
• RMS Power Handling: 300 Watts — indicates continuous power the driver can sustain without distortion under typical use.
• MAX Power Handling: 600 Watts — supports short bursts of higher power for dynamic peaks in music and film content.
• Sensitivity: 97 dB (1W/1m) — higher efficiency means more output with less amplifier demand, contributing to louder sound from the same power level.
• Frequency Response: 60Hz-12.5kHz — covers low to high midrange and extends toward the highs, reducing gaps in the mid/high spectrum.
• Recommended Hi Pass Crossover: 100Hz — suggests a low‑frequency cutoff to preserve midrange clarity and minimize bass masking.
• Voice Coil Diameter: 2" / 50.8 mm — a larger coil supports better heat dissipation and stable power handling at high drive levels.
• Basket Material: Aluminum, Satin Black — rigid frame design that helps minimize unwanted vibrations and distortion.
• Magnet Material: Ferrite, 34 Oz — substantial magnetic force to control the cone for steady performance under demanding levels.
• Cone/Suspension/Dust Cap: Non-pressed Paper cone with Cloth surround and Paper dust cap — balances stiffness, damping, and efficiency for midrange clarity.
• Overall Dimensions: 6.7" (170 mm) diameter, 3.5" (89 mm) depth; Front Mount Cutout 5.9" (150 mm); Mounting Depth 3.14" (80 mm) — precise fitment data for planning installations.
• Ventilation: Ample ventilation for heat dissipation during prolonged high‑volume listening, supporting consistent performance.
• Terminals: Polished high‑quality spring‑loaded push terminals — quick, secure connections with reliable contact.

In a real car build, the 6XL600-8 excels as a robust midrange driver in high‑power front stages or components where vocal clarity and dynamic highs are essential. The combination of a rigid aluminum basket, substantial ferrite magnet, and ventilated construction helps maintain distortion‑free sound at elevated volumes, while the 8Ω impedance and 97 dB sensitivity promote strong output without overtaxing the amplifier. The included mounting geometry and reinforced terminals simplify installation and reliability in daily use.
