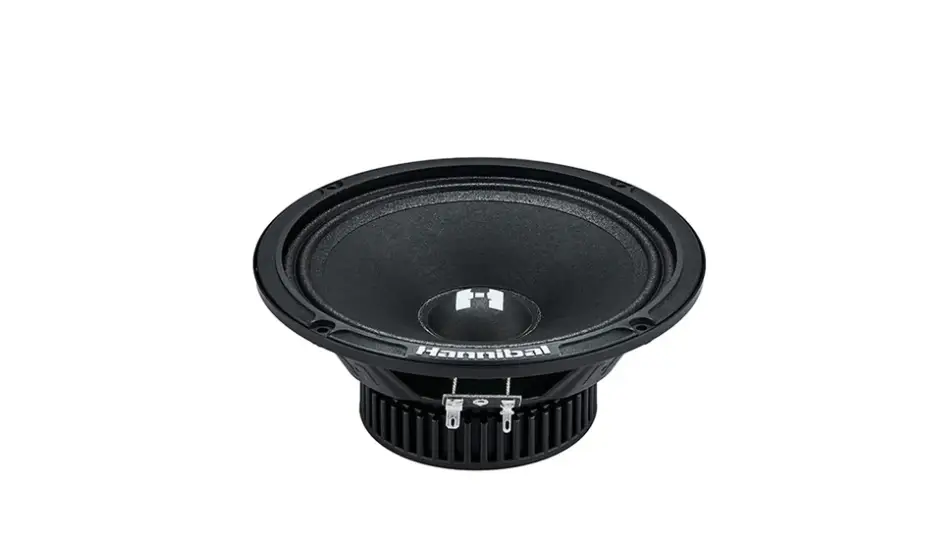

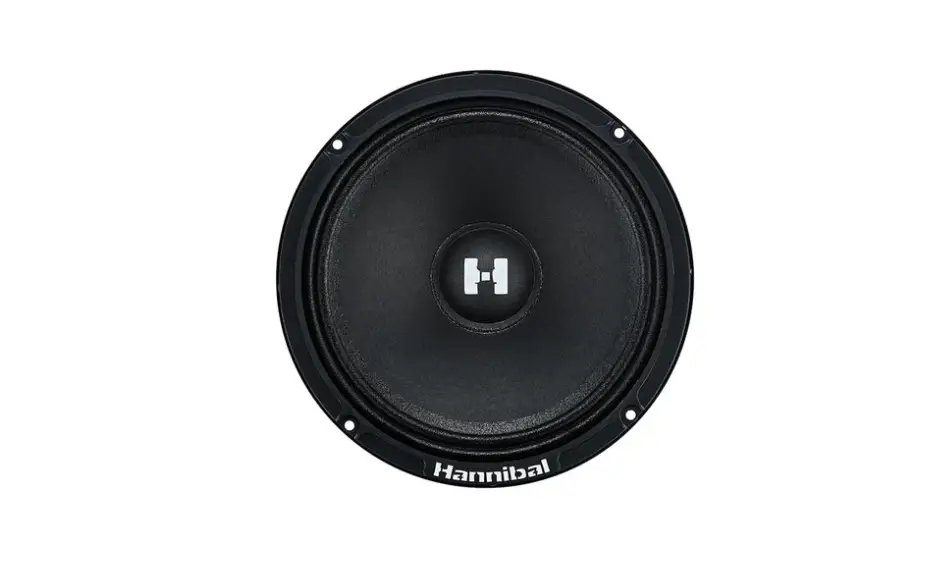

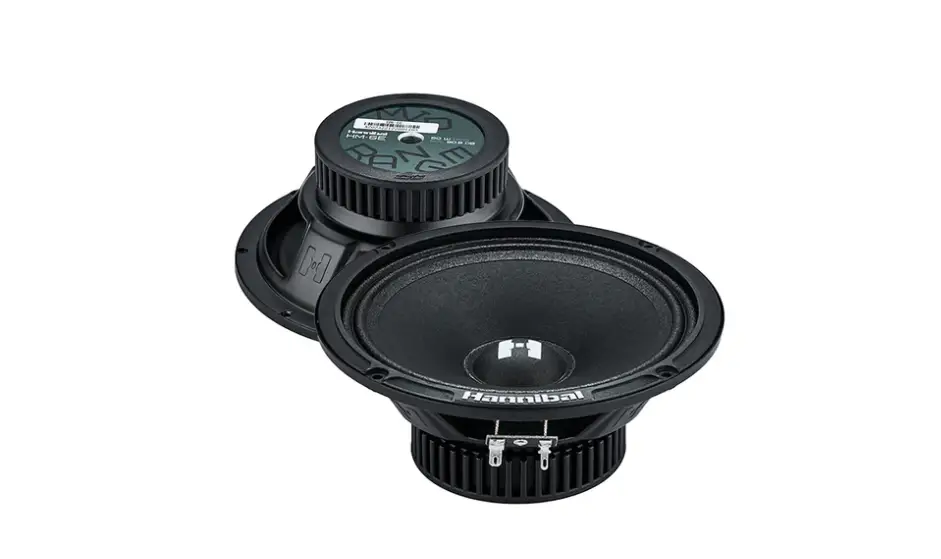

Deaf Bonce Hannibal HM-6E | 6.5" Mid-Range Speakers (Pair)

The Deaf Bonce Hannibal HM-6E is a 6.5" midrange pair engineered for accurate midband performance in car audio builds, delivering clear vocal articulation across a wide 100–12000 Hz range.

• Size and type: 6.5" midrange pair designed for dedicated midrange reproduction in a car audio system.
• Frequency response: 100–12000 Hz, enabling vocal clarity and detail from lower midrange up through the upper midrange and into the lower treble when paired with appropriate crossovers.
• Power handling: RMS 70 W / MAX 140 W, indicating the continuous and peak power levels the driver is built to tolerate without compromising performance.
• Impedance: 4 Ohm, which affects amplifier compatibility and crossover design for a balanced system.
• Sensitivity: 92 dB SPL, reflecting the efficiency of converting electrical power into sound pressure and guiding amplifier choice for desired loudness.
• Construction: Voice coil size 1" with CCAW wire; Cone material Paper; Surround Cloth; Magnet Ferrite; Frame Stamped steel — a compact, rigid assembly designed for reliable midrange performance.
• Mechanical/electrical parameters: Fs 102 Hz, Qts 1.26, BL 3.46, Vas 9.01 L — these figures inform crossover design and enclosure considerations for accurate midrange behavior.

In a typical car audio build, the HM-6E serves as the midrange element in two- or three-way setups, pairing with other drivers to deliver clear vocal presence and detailed upper midrange without demanding excessive amplifier power. Its 4-ohm impedance and 92 dB sensitivity help achieve balanced output with a reasonable amplifier, while the ferrite magnet and 1" CCAW voice coil contribute to reliable performance under typical listening conditions.
