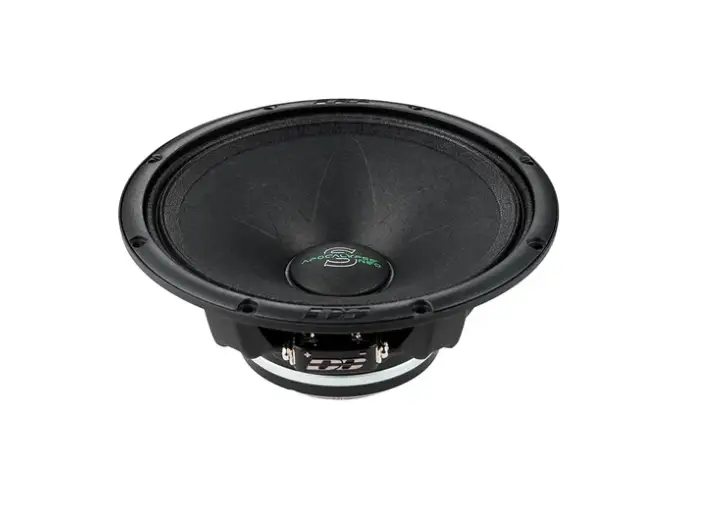

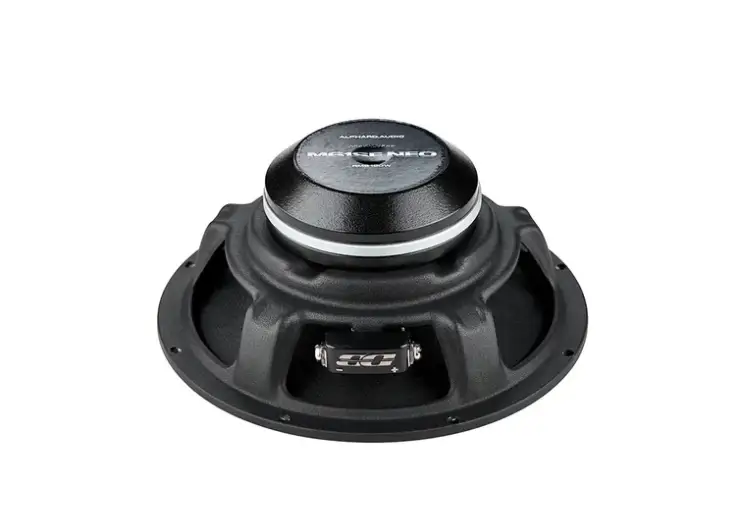

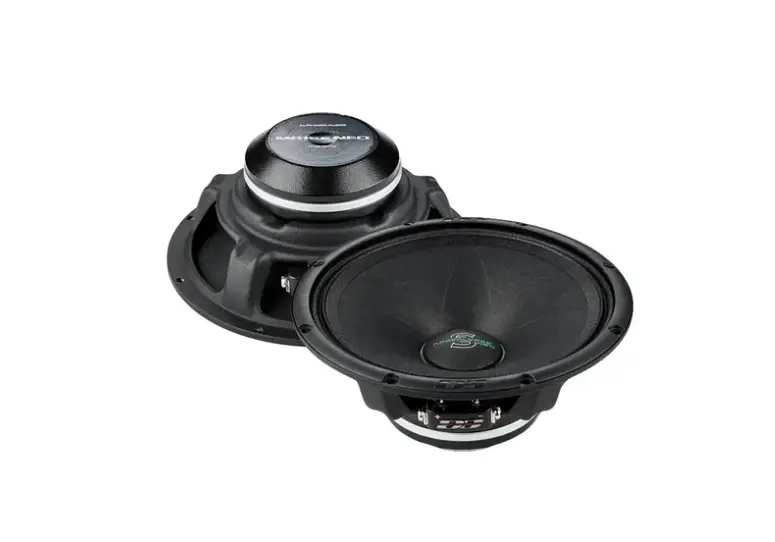

Deaf Bonce Apocalypse AP-M61SE NEO | 6.5" Mid-Range Speakers (Pair)

The Deaf Bonce Apocalypse AP-M61SE NEO is a 6.5 inch midrange pair built for automotive systems that demand accurate midband clarity and solid power handling. Featuring a neodymium magnet, 1.25 inch voice coil, and a 4 Ohm impedance, this pair delivers 180 W RMS and 360 W peak with a broad 100–15500 Hz range.

• Size: 6.5 inch — Standard midrange diameter that fits common 6.5 inch openings in doors and panels, making installation straightforward.
• Type: Midrange — Optimized for the midband, providing clear vocal and instrument reproduction when paired with a dedicated tweeter in a multi‑way setup.
• Frequency response: 100-15500 Hz — Covers most of the vocal range up through high treble, enabling cohesive integration with other drivers in a full-range system.
• Package quantity: Pair — Sold as a two‑speaker set for stereo front stage applications.
• Voice coil size: 1.25 inch — A larger coil supports higher power handling and stable excursion under demanding signals.
• Cone: Paper — Lightweight, damping-friendly material that contributes to controlled midrange articulation.
• Magnet: Neodymium — Provides strong magnetic field with reduced moving mass for improved transient response and efficiency.
• Voice coil wire: CCAW — Copper-clad aluminum wire lowers weight while preserving current capability.
• RMS Power: 180 W — Continuous power rating indicating the amount of steady input the driver can handle without excessive heating.
• MAX Power: 360 W — Peak handling for brief musical transients without clipping or damage when used within safe limits.
• Frame: Steel — Durable, rigid structure that aids mounting stability and reduces vibration during operation.
• Impedance: 4 Ohm — A common load that pairs well with a wide range of amplifiers and helps balance system efficiency.
• SPL: 104.50 dB — Sensitivity indicates the potential output level relative to input power, contributing to higher perceived loudness with the same amp.
• Fs: 102.00 Hz — Resonant frequency in free air, important for understanding enclosure behavior and starting point for tuning midrange response.
• Qts: 0.29 — Electrical Q factor that influences how the driver interacts with enclosure and damping to shape bass/midrange alignment.
• BL: 8.38 — Motor strength parameter affecting control at high excursion and overall efficiency.
• Vas: 8.76 L — Equivalent box volume guidance used for enclosure tuning and performance prediction.
• Mounting depth: 70.1 mm / 2.76'' —DIM height requirement to fit into common door panels and enclosures.
• Cut-out dimension: 154.26 mm / 6.07'' — Hole size needed for proper installation in panels or OEM cavities.

Benefits: In a multi‑way front stage, this AP-M61SE NEO pair serves as the midrange core, delivering clear vocal presence and detailed instrument articulation across a wide frequency span. The neodymium magnet and 1.25" voice coil enable solid transient response and power handling, while the 4 Ohm impedance pairs well with a variety of amplifiers. With a 100 Hz lower limit, it integrates with bass drivers without overdriving the woofer, and the high end extends the audible spectrum for crisp, airy highs when paired with a suitable high‑frequency driver.
