DC Audio Single 12" NEO 3.5 Ported Enclosure

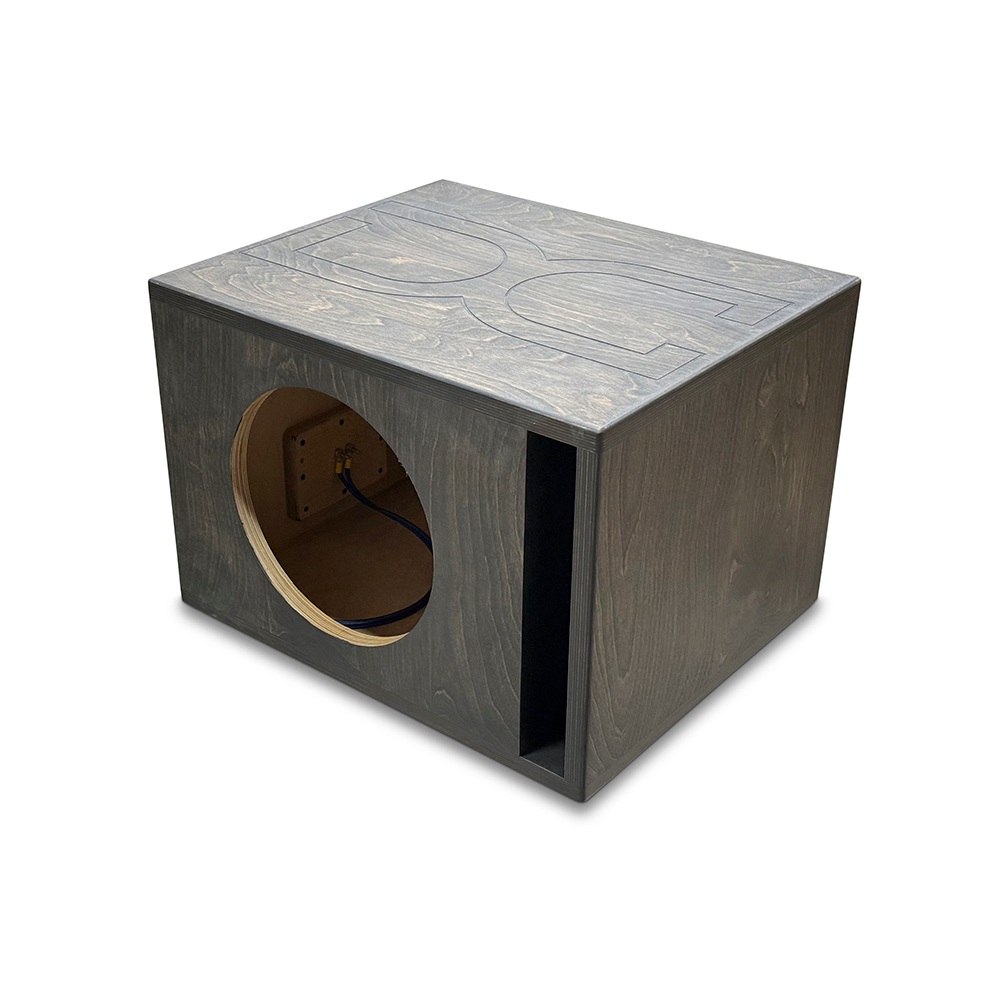

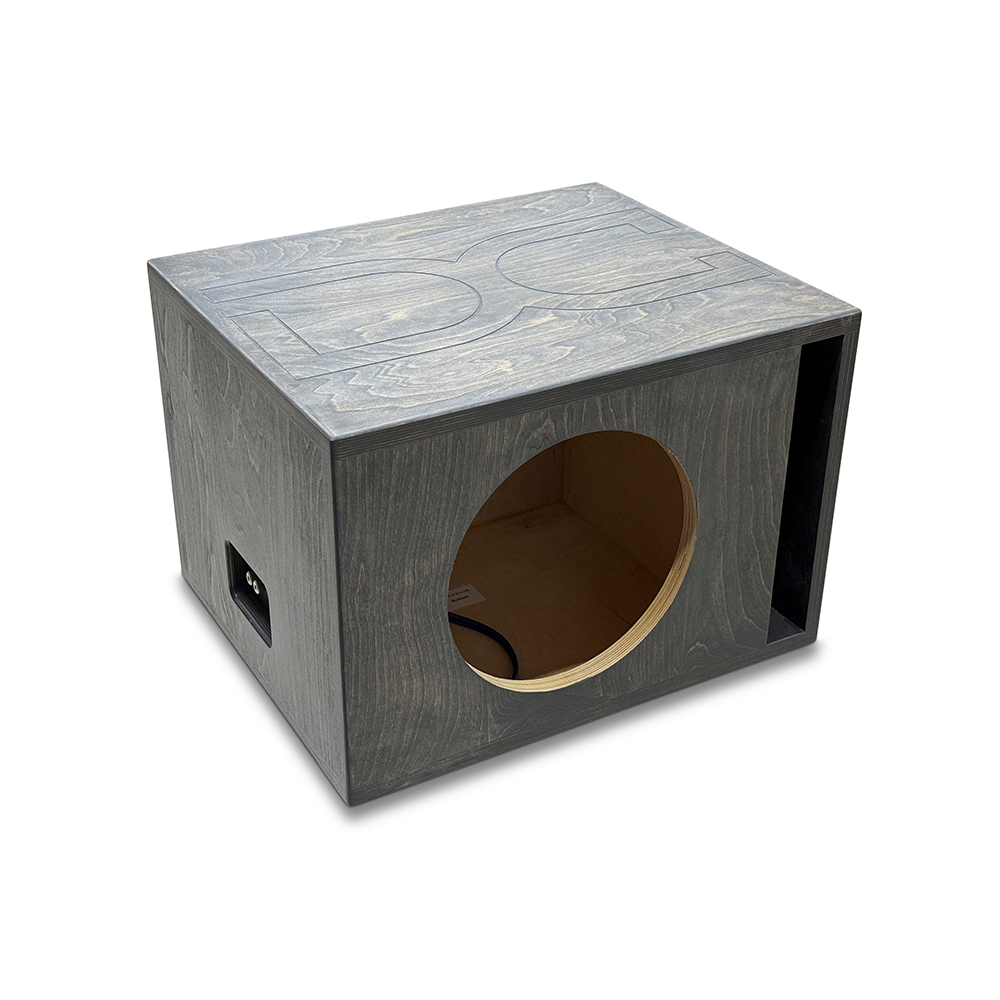

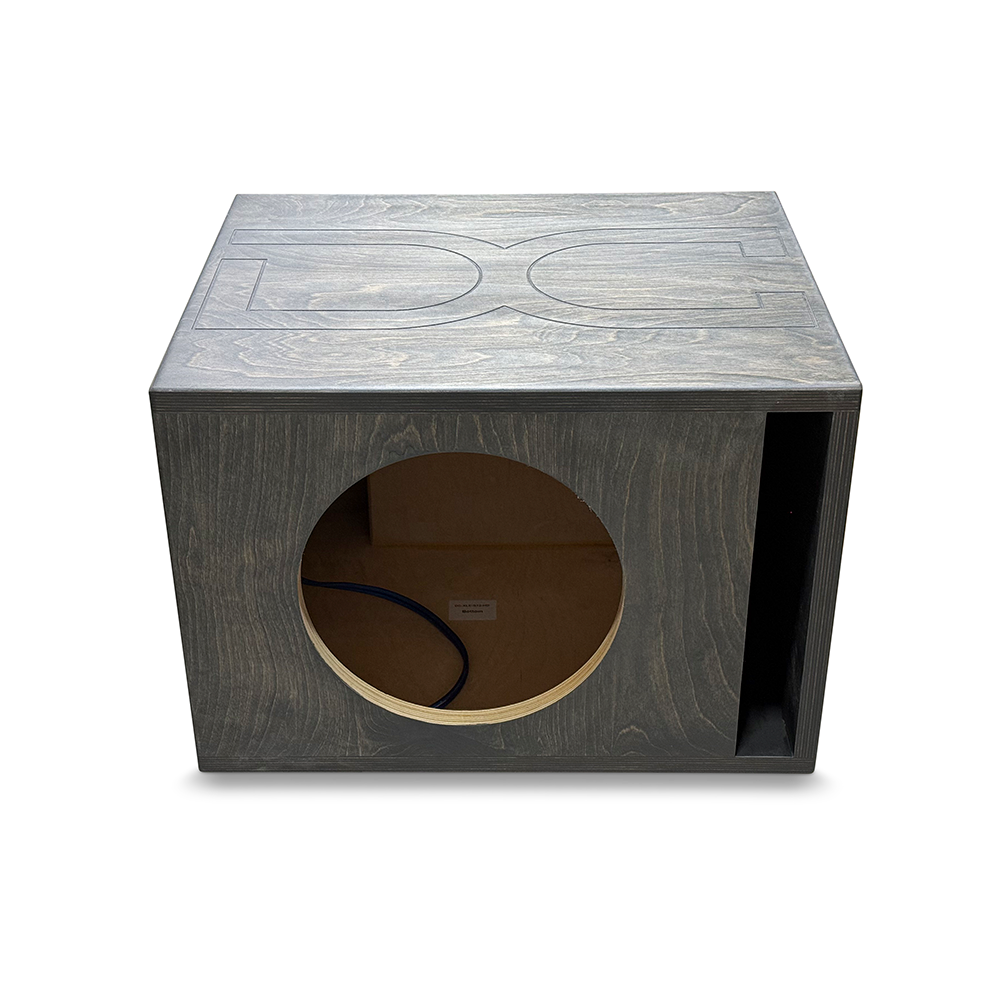

The DC Audio Single 12" NEO 3.5 Ported Enclosure is a 2.0 cubic foot, 32 Hz tuned box built specifically for the DC Audio NEO 3.5 12" sub to deliver deep, controlled bass in a handcrafted USA cabinet.

• Engineered for: DC Audio NEO 3.5 12" sub — Specifically tuned to pair with the NEO 3.5 12" for optimal airspace and bass control.
• Net Volume: 2.0 cubic feet — Provides the interior space needed to support deep low-frequency output while maintaining enclosure rigidity.
• Tuning: 32 Hz — Targeted low-end extension that emphasizes bass depth without excessive cone excursion.
• Port Area: 28.88 sq in — Port dimensions designed to balance air flow and low-frequency response at the tuned frequency.
• Port Size: 14.002" x 2.063" — Rectangular port dimensions that establish the intended air velocity and tuning characteristics.
• Cutout: 11.15" — Diameter/mounting opening sized to fit the 12" subwoofer with secure seating.
• Construction: 1" (24mm) Russian Baltic Birch — 17-ply panels provide high stiffness and reduced panel flex for cleaner bass transients.
• Baffle: 1" front baffle — Adds rigidity at the woofer interface to minimize vibrational leakage.
• Finish: Carbon gray stain with polyurethane topcoat — Durable, showroom-ready finish that resists daily use in a vehicle environment.

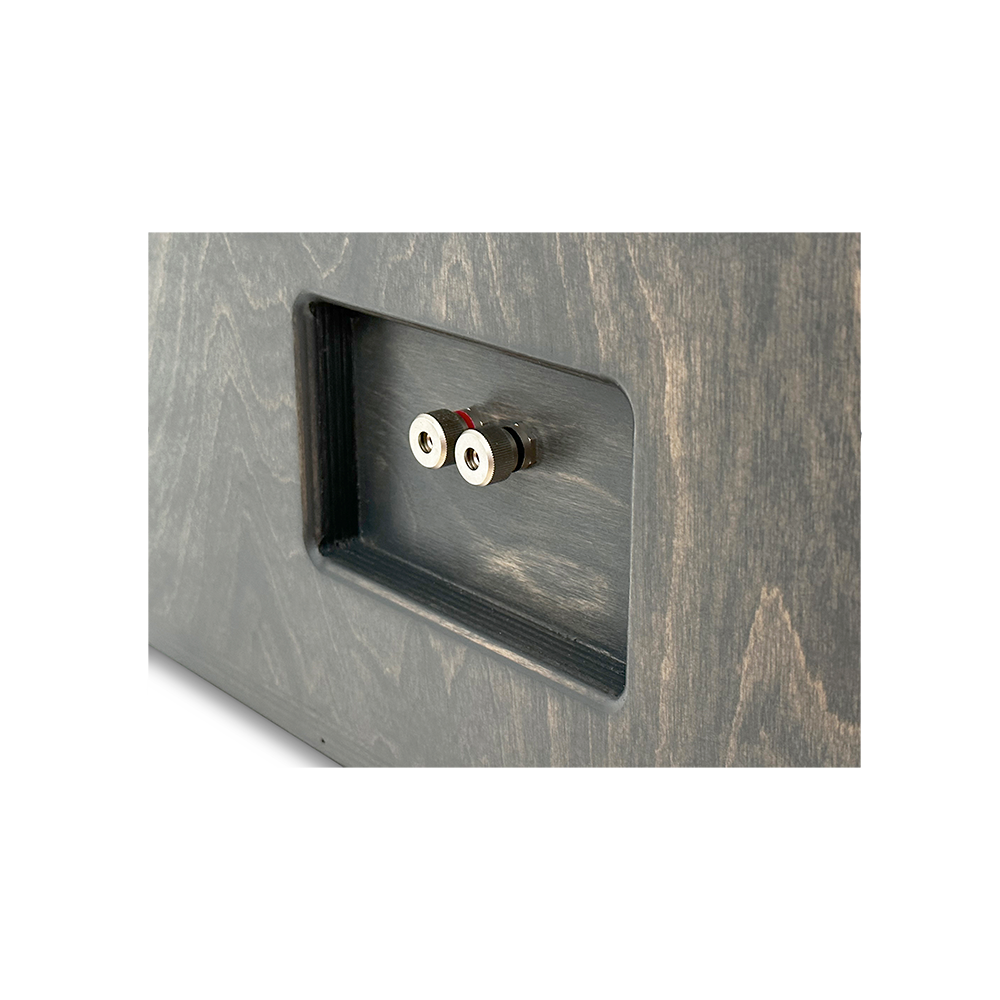

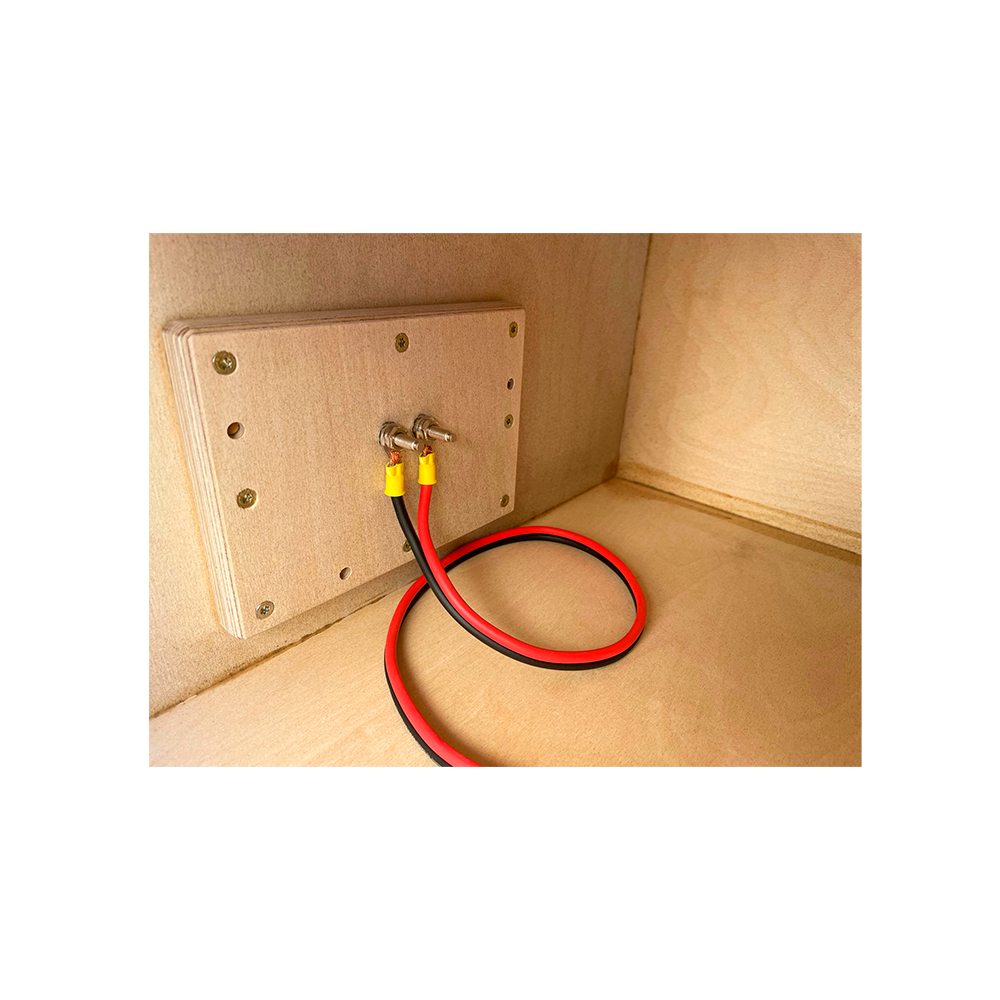

• Wiring: Pre-wired 10ga OFC with metal binding post — Simplifies installation and ensures solid high-current connections.
• Power Rating: High power systems — Designed to handle demanding amplifiers and sustained bass demands.
• Dimensions: Height 16.0", Width 22.75", Depth 19.0" — Size details to confirm fitment in your vehicle’s enclosure space.
• Handcrafted in the USA — Built by hand in the United States with attention to airtight construction and finish quality.
• Lead Time: Built to order. Ships in 2-3 weeks. All sales final.

In a real-world install, this enclosure provides a precise, tuned home for the NEO 3.5 12" driver, delivering deep bass with controlled decay thanks to its rigid Baltic Birch construct and exacting port design. The pre-wired wiring and metal binding posts speed up installation on high-power systems, while the no-visible-screw exterior offers a clean, showroom-like appearance. Built to order in the USA with airtight seams guaranteed by Titebond III, it’s made to endure the rigors of automotive use. Plan for a 2–3 week ship time and consider the all-sales-final policy when ordering.
