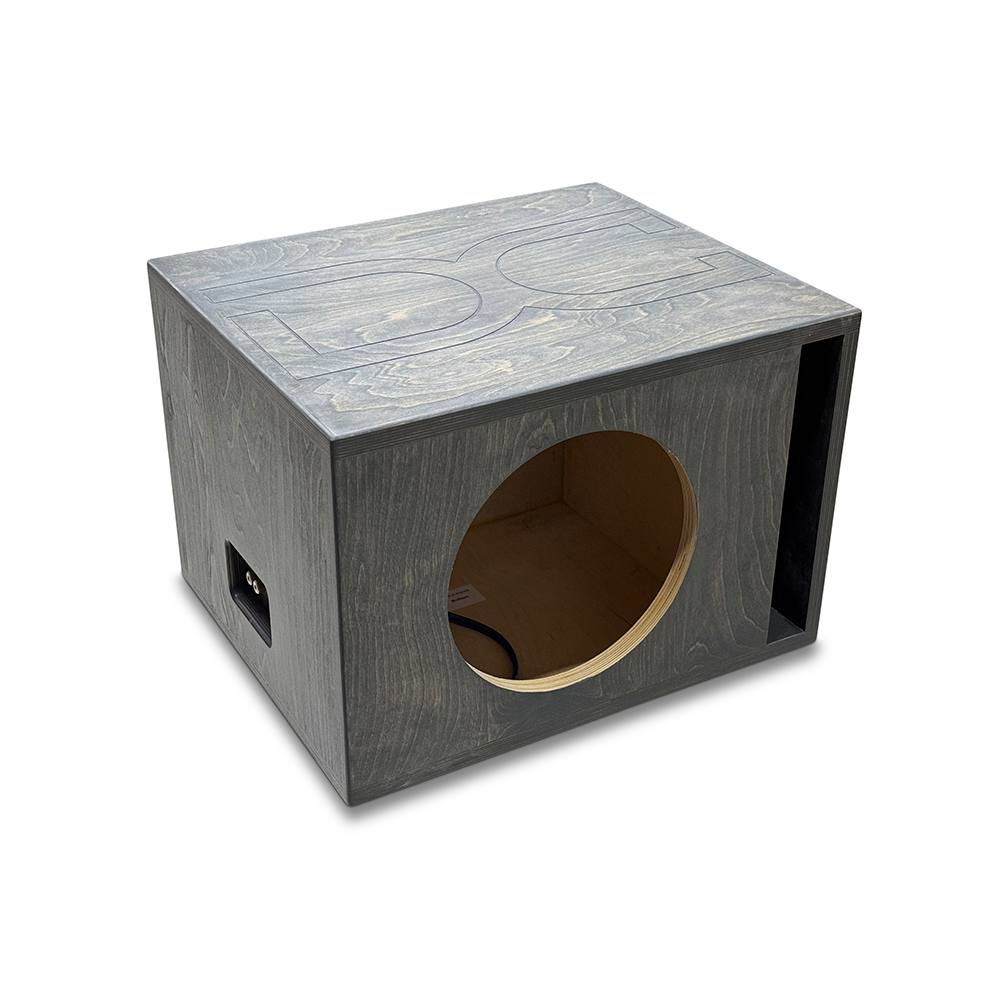

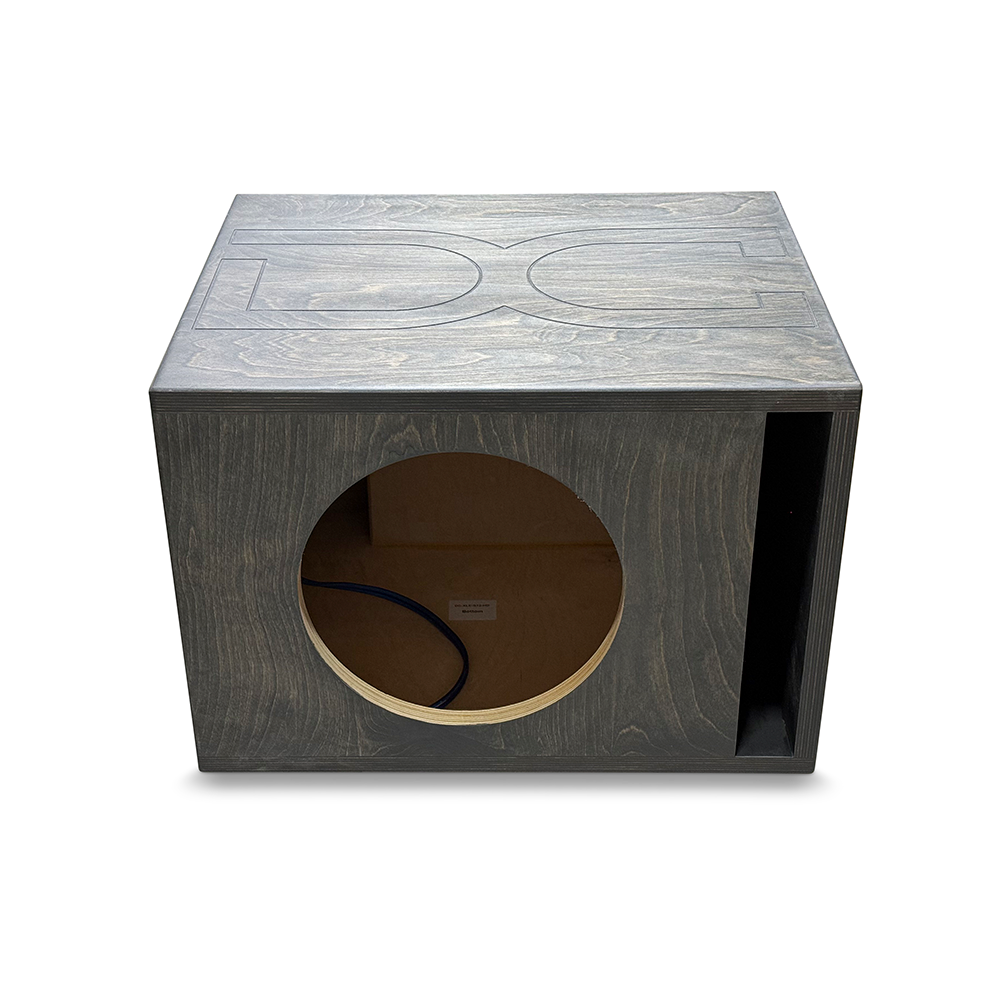

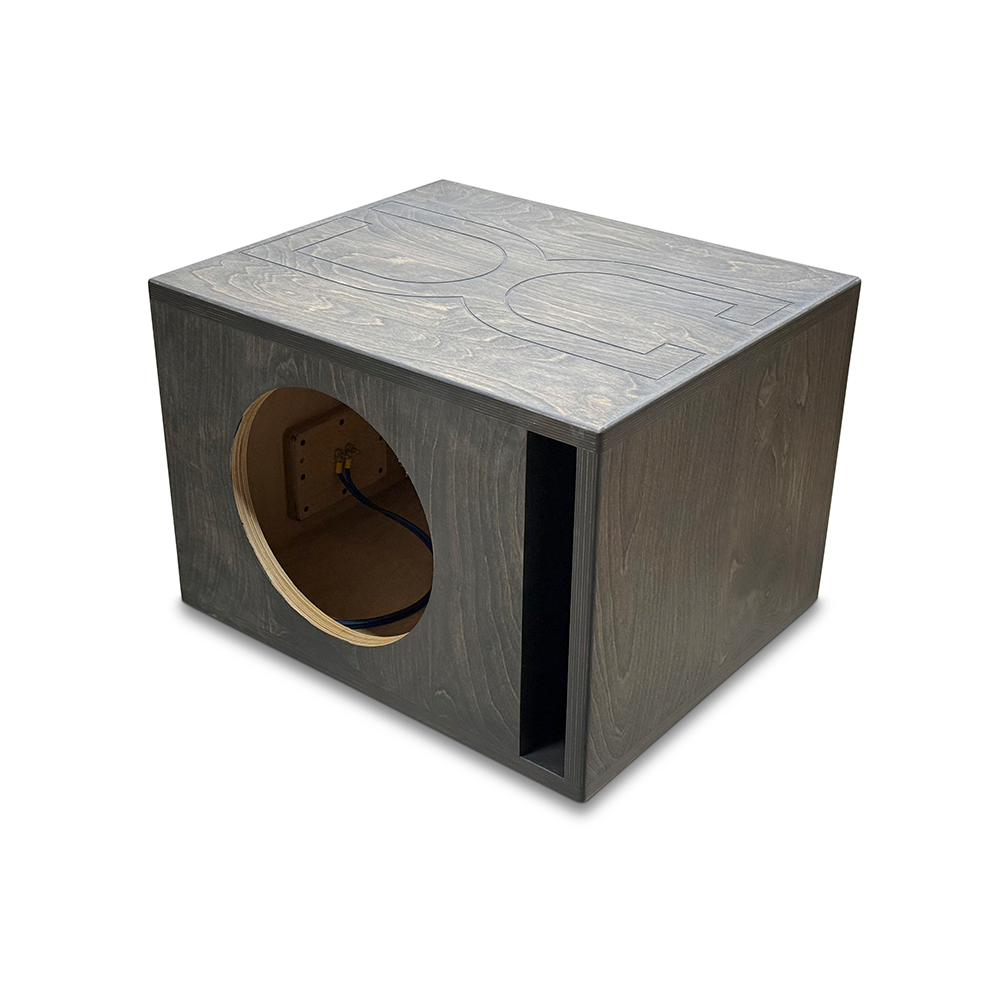

DC Audio Single 12" Level 5 Ported Enclosure

DC Audio Single 12" Level 5 Ported Enclosure is a hand-built, single-driver enclosure engineered for the DC Audio Level 5 12" sub, optimized to 2.0 cu ft of airspace at 32 Hz for deep, controlled bass.

• Net Volume: 2.0 cubic feet — internal space tuned to support the Level 5 12" sub, balancing deep bass extension with enclosure rigidity.
• Tuning: 32 Hz — targets strong low-end output at a frequency where ported designs deliver measurable bass without excessive slow decay.
• Port Area: 28.88 sq in — adequate port cross-section to move air at the tuned frequency, contributing to clean low-end response.
• Port Size: 14.002" x 2.063" — port dimensions that influence tuning and enclosure length for this design.
• Cutout: 11.15" — required woofer mounting hole diameter for proper fit in a single-12" configuration.
• Construction: 1" (24 mm) Russian Baltic Birch — 17-ply structure provides high stiffness to resist panel flex under high-power bass.
• Baffle: 1" (24 mm) front baffle — adds rigidity and helps seal the enclosure for consistent performance.
• Finish: Carbon gray stain with polyurethane topcoat — durable, show-ready exterior finish.

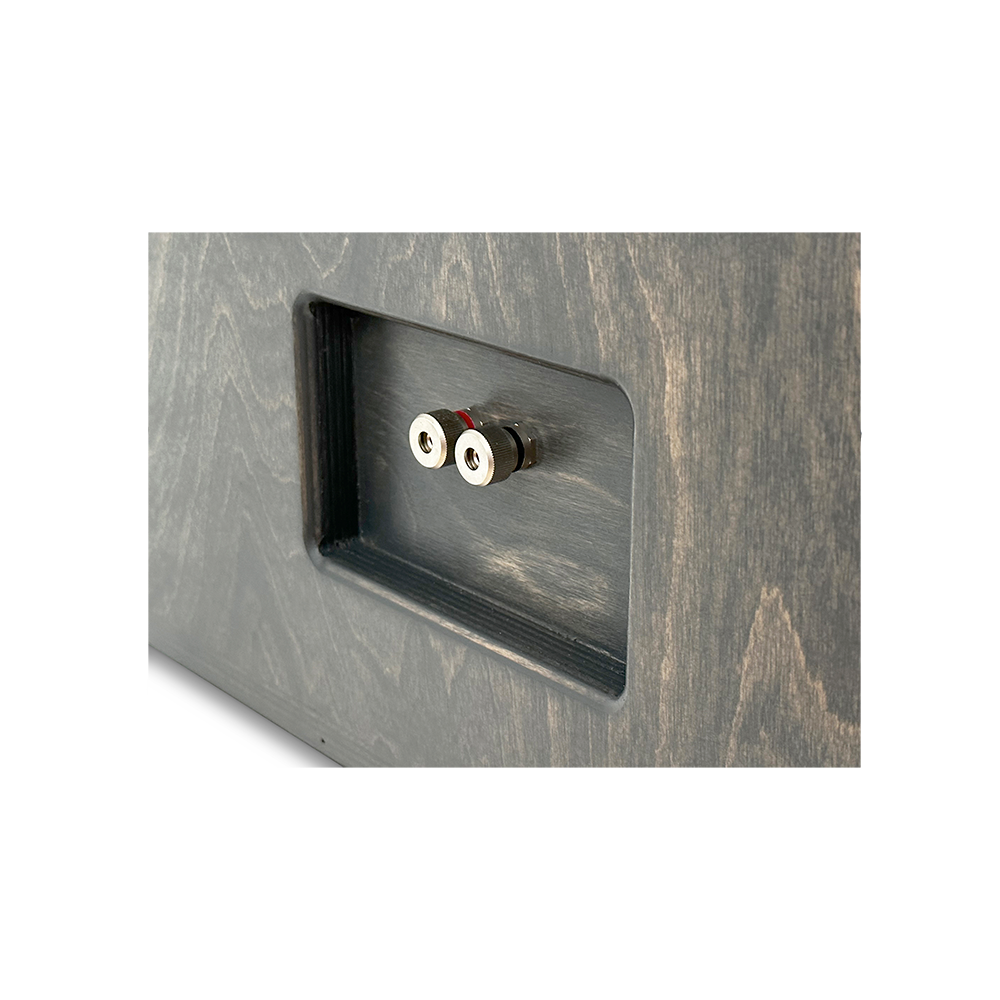

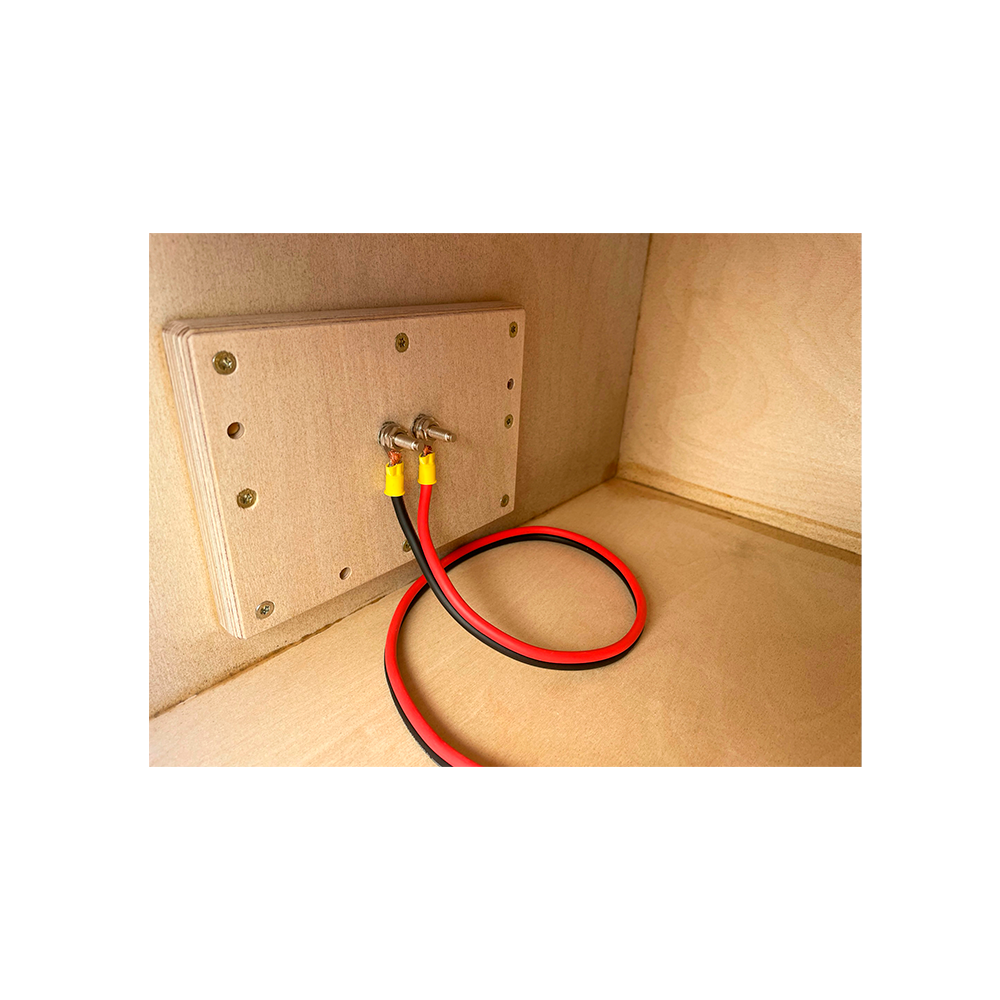

• Wiring: Pre-wired 10ga OFC with metal binding post — simplifies installation and secure electrical connections.
• Power Rating: High power systems — designed to handle demanding bass peaks without compromising integrity.
• Dimensions: Height 16.0", Width 22.75", Depth 19.0" — compact footprint that fits a variety of vehicle locations while preserving internal volume.
• Exterior construction: Zero visible screw holes on the exterior; fully glued with Titebond III for airtight integrity and long-term durability.
• Handcrafted in the USA: Built by hand in the United States, delivering a show-quality build with meticulous assembly.
• Lead Time: Built to order. Ships in 2-3 weeks.
• All Sales Final: All sales final.

In a real car audio build, this enclosure pairs with the Level 5 12" sub to deliver deep bass with tight control. The combination of the precise 2.0 cu ft volume and 32 Hz tuning provides a focused low end, while the rigid Baltic Birch construction minimizes panel flex during high-power playback. Ready to install with pre-wired wiring and a clean exterior finish, it arrives as a complete, hand-built solution from the USA, with a 2–3 week lead time and a strict final-sale policy.
