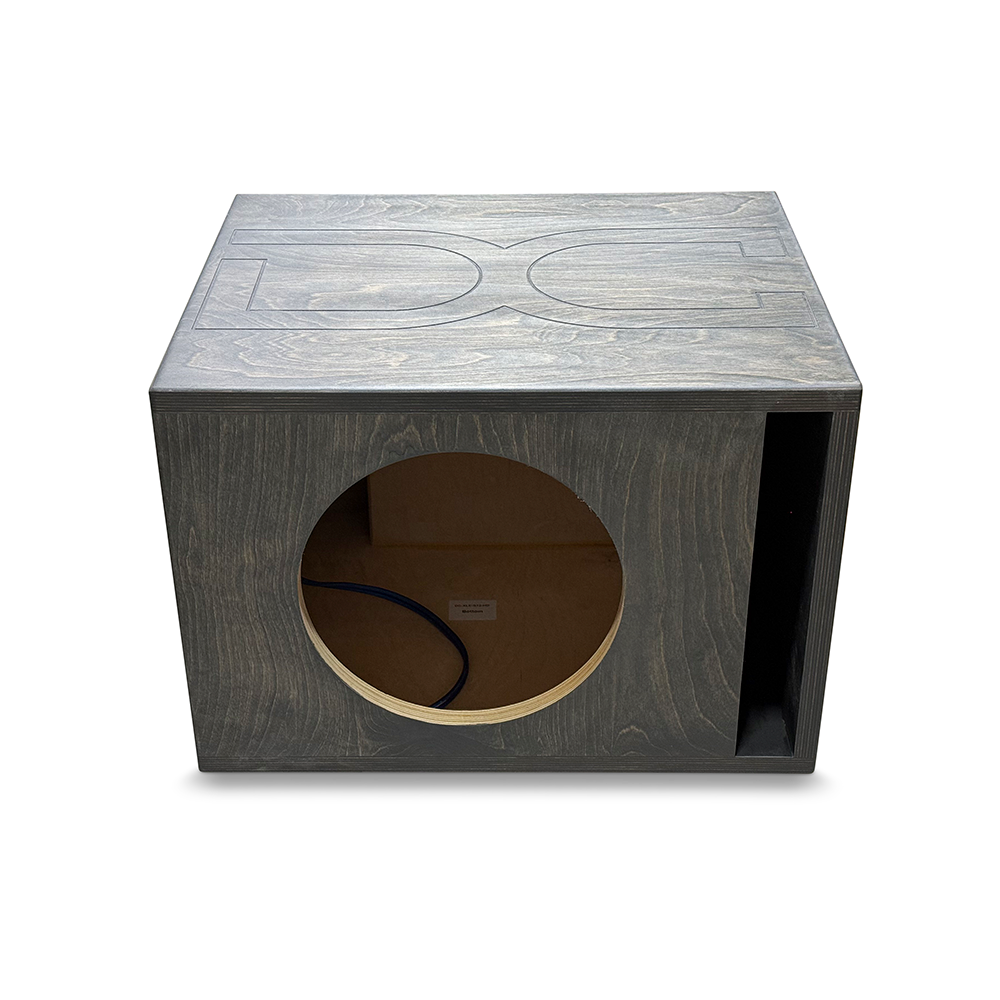

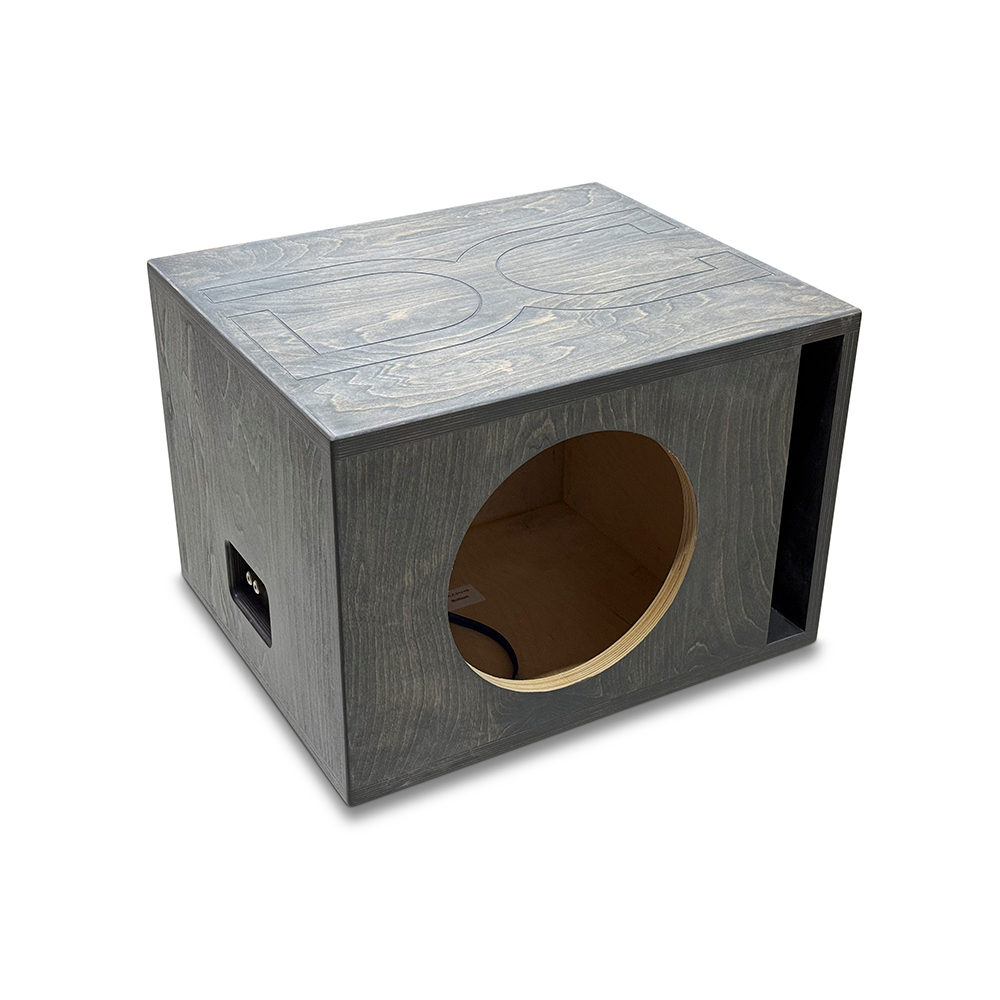

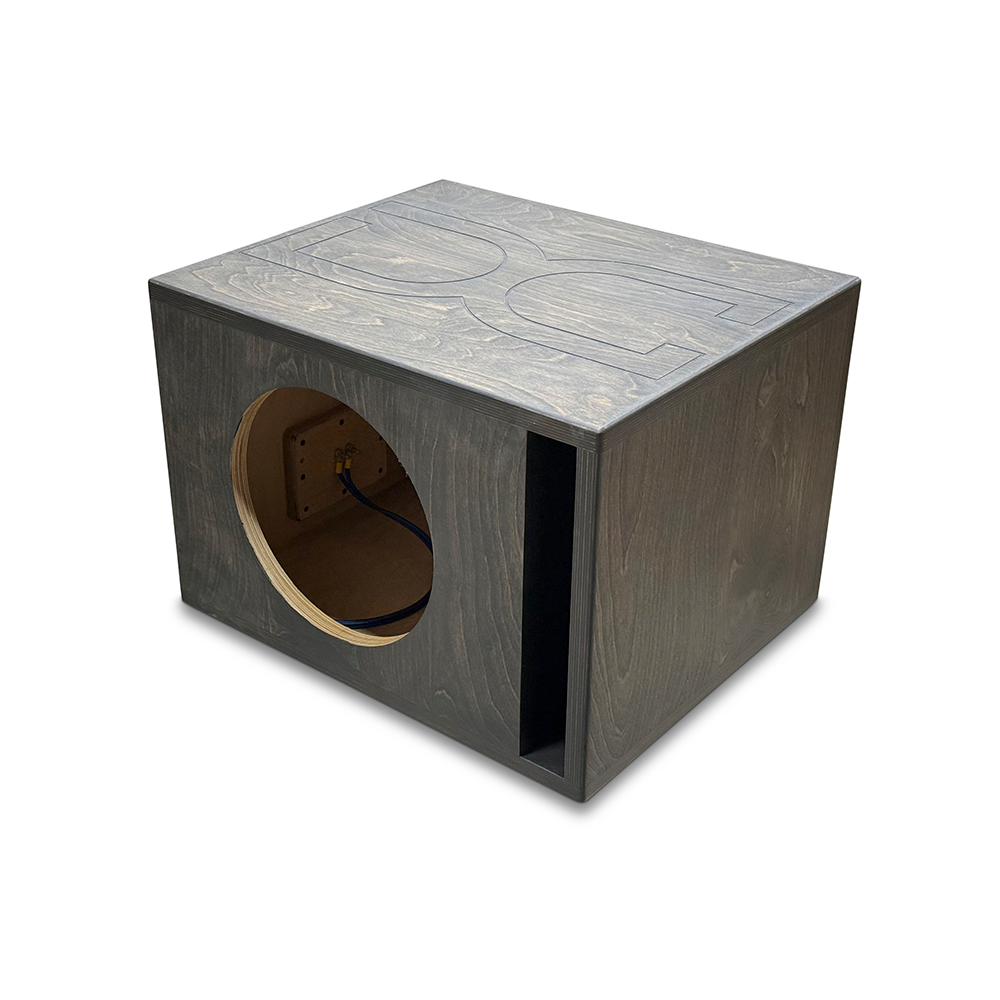

DC Audio Single 10" Level 4 Ported Enclosure

Engineered specifically for the DC Audio Level 4 10" subwoofer, this 1.15 cu ft ported enclosure is tuned to 34 Hz for deep, controlled bass in a compact, install-ready package.

• Net Volume: 1.15 cubic feet of internal airspace precisely sized for the Level 4 10" driver, balancing low-end extension with cone control in a ported design.
• Tuning: 34 Hz tuning to promote deep bass output while maintaining manageable motor strength and excursion in typical vehicle environments.
• Port Area: 16.68 sq in port area provides a dedicated vent path to support the tuned response without excessive chuff at high output.
• Port Size: 11.503" x 1.45" slot dimensions, indicating a single-slot port design optimized for the enclosure's target frequency.
• Cutout: 9.35" mounting cutout for the 10" subwoofer, ensuring proper fitment and seal.
• Construction: 3/4" (18mm) Russian Baltic Birch with 13 plies, offering rigidity and minimal panel flex under load.
• Baffle: Front baffle is solid 1" (24mm) thick with 17 plies for stiffness and reduced resonance.
• Finish: Carbon gray stain with polyurethane topcoat for a durable, show-quality appearance.

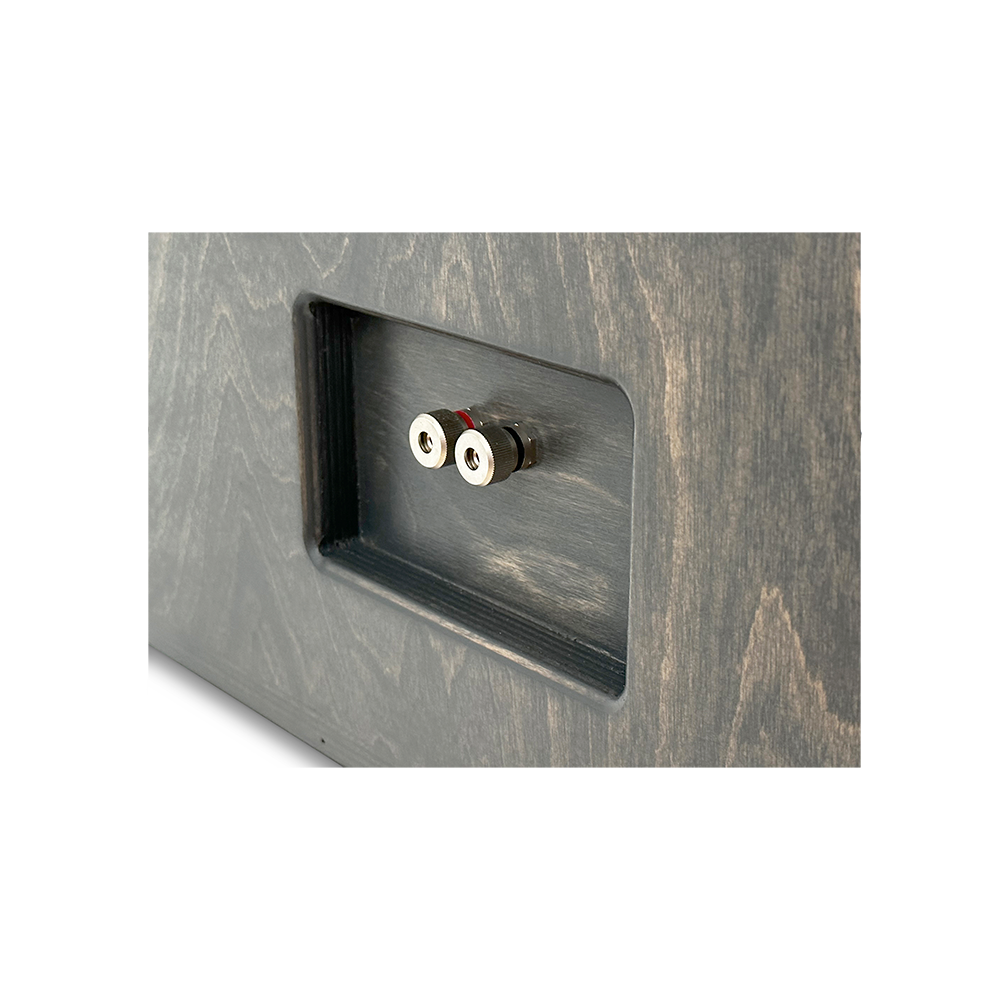

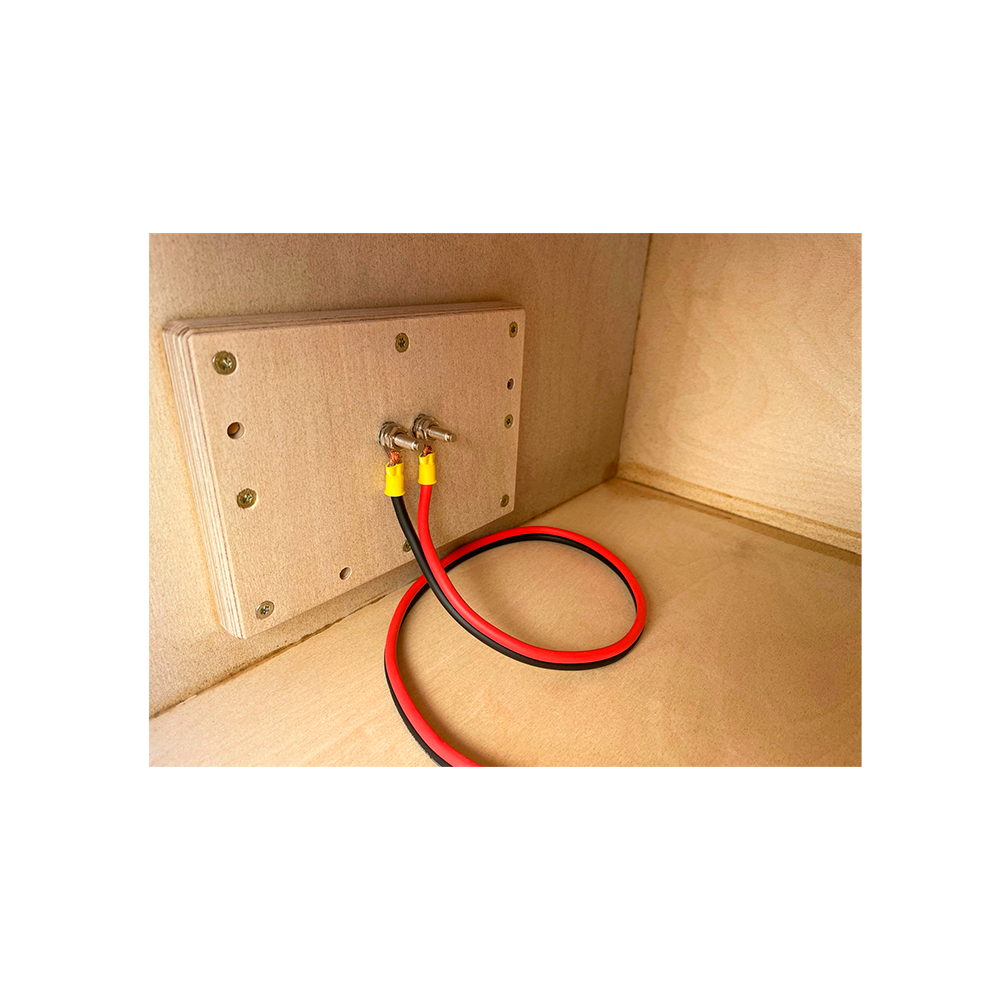

• Wiring: Pre-wired 10ga OFC with metal binding post for straightforward, high-current connections.
• Power Rating: Up to 1750W RMS, compatible with high-powered DC Audio Level 4 setups when paired with the appropriate amplifier.
• Dimensions: Height 13.0", Width 21.875", Depth 14.0"—precise footprint for planning installations.
• Handcrafted in the USA: Built by hand in the United States; exterior features zero visible screw holes for a clean, premium look; fully glued with Titebond III for airtight integrity and long-term durability.
• Lead Time: Built to order. Ships in 2-3 weeks.
• All Sales Final: All sales final.

Designed to maximize the performance of the DC Audio Level 4 10" subwoofer, this enclosure combines a precisely tuned 1.15 cu ft interior with a 34 Hz target, a robust 16.68 sq in port, and a stiff Baltic Birch construction to deliver deep, controlled bass in real-world car environments. The pre-wired wiring and heavy-duty 10ga OFC with binding posts simplify installation, while the American craftsmanship, airtight Titebond III joints, and no-exterior-screw exterior deliver a premium, durable enclosure that ships ready to install after the 2–3 week build time.
