DC Audio Dual 12" XL Elite Ported Enclosure

DC Audio Dual XL Elite 12" Ported Enclosure is a handcrafted cabinet engineered for the DC Audio XL Elite 12" subwoofer, delivering 4.0 cu ft of internal airspace tuned to 32 Hz for deep, controlled bass. It features a clean exterior with zero visible screw holes and a rugged Baltic Birch build for rigidity and durability.

• Net Volume: 4.0 cubic feet — Provides the designed airspace to let the XL Elite’s movement breathe, supporting deep bass without excessive port compression.
• Tuning: 32 Hz — Sets where the enclosure emphasizes bass; tuned for extended low end with responsive transient behavior.
• Port Area: 58.12 sq in — Port cross-section influences airflow and port velocity at high output, helping reduce port noise.
• Port Size: 14.999" x 3.875" — Rectangular port geometry that, with the volume and tuning, shapes the enclosure’s low-frequency performance.
• Cutout: 11.15" — Driver mounting hole diameter for a precise, airtight seal with the baffle.
• Construction: 1" Russian Baltic Birch - 17 ply — High-density, multi-ply Birch yields stiffness and low enclosure coloration for cleaner bass.
• Baffle: 1" front baffle — Thick front surface helps resist flex and maintain consistent woofer alignment.
• Bracing: 1" center baffle brace — Internal reinforcement reduces panel resonance under high excursion.
• Finish: Carbon gray stain with polyurethane topcoat — Durable, show-ready finish resistant to wear and environmental factors.

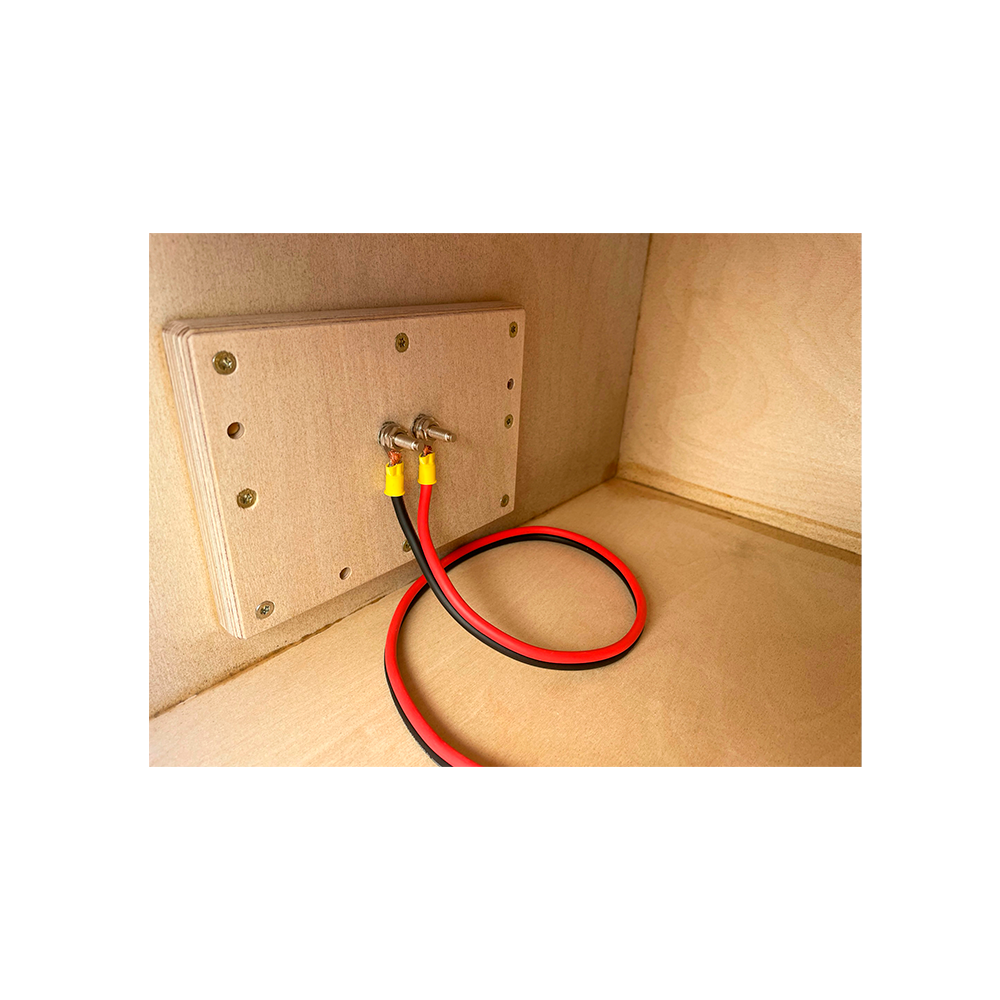

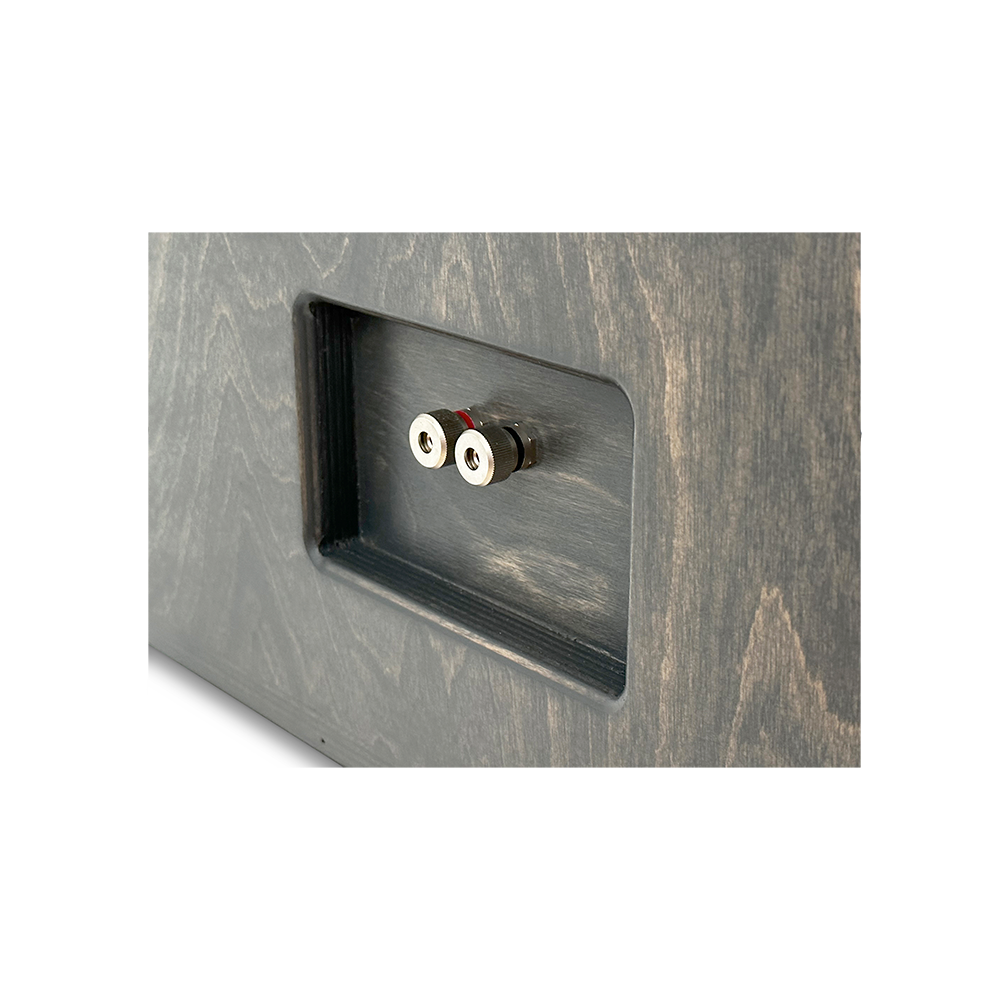

• Wiring: Pre-wired 10ga OFC with metal binding post — Enables quick, solid connections with low resistance for high-power use.
• Power Rating: High power systems — Designed to handle demanding amplifier output while maintaining enclosure integrity.
• Dimensions: Height 17.0", Width 36.0", Depth 20.5" — Precise external footprint to plan space in the vehicle.
• Handcrafted in the USA: Built by hand in the United States with meticulous assembly for a clean, long-lasting enclosure.
• Glue/Sealing: Fully glued with Titebond III for airtight integrity and durability — Creates a robust seal to preserve performance over time.
• Lead Time: Built to order; ships in 2-3 weeks — Each enclosure is assembled to specification and ready to wire up upon arrival.

In a real car audio build, this enclosure translates driver movement into substantial, low-distortion bass. The 4.0 cu ft volume and 32 Hz tuning deliver deep extension with controlled output, while the rigid Baltic Birch construction and bracing minimize flex that can color the signal. Pre-wired wiring and a clean exterior with hidden screw lines save installation time and keep the look showroom-clean. Built to order in the USA, it arrives ready to install and enjoy.
