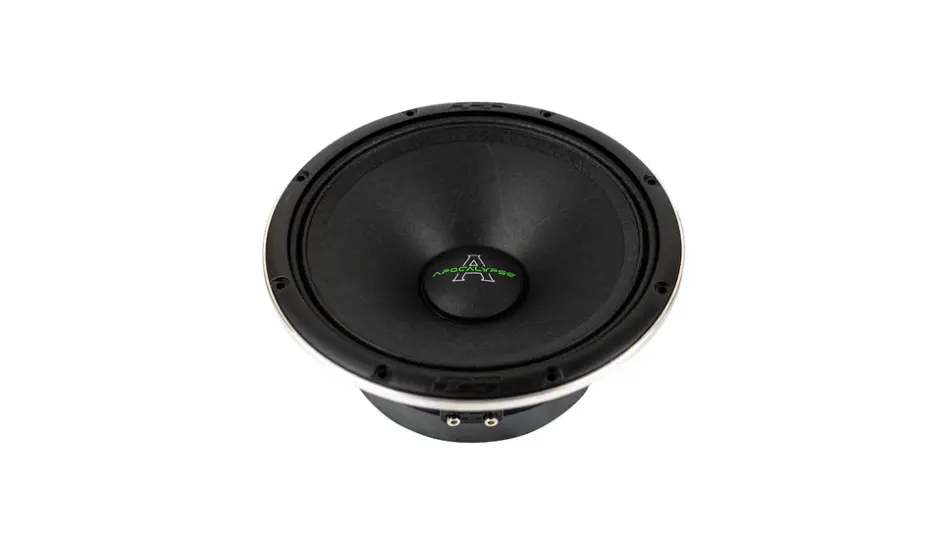

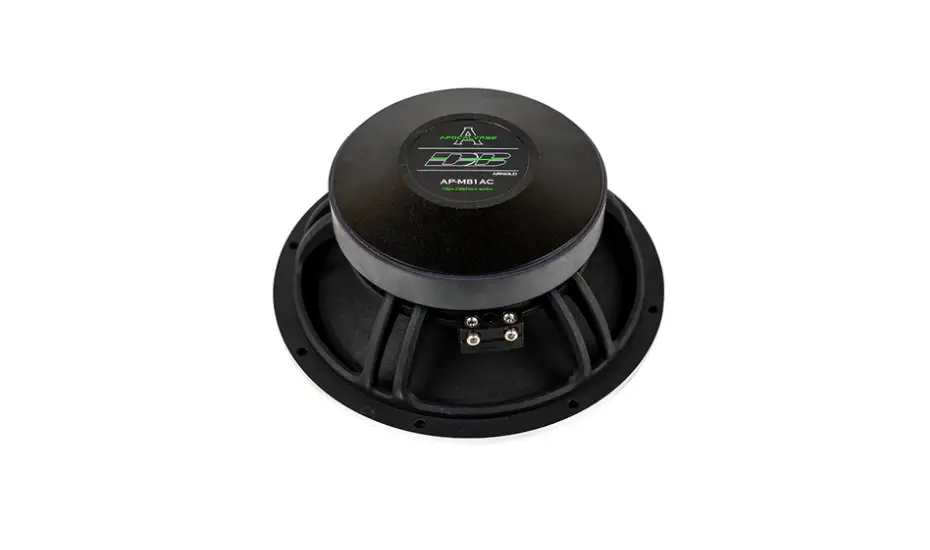

The Deaf Bonce Apocalypse AP-M81AC is an 8" midrange driver pair designed for high-detail vocal and midband performance in serious car audio builds. With 300 W RMS and 600 W peak handling, it provides solid power headroom while maintaining clarity across its midrange range.
- Size: 8" diameter driver; built to fit standard 8" midrange installations and uses a 7.56" (192 mm) cut-out for mounting.
- Type: Midrange; optimized for clear vocal articulation and midband content within the 110–10000 Hz range.
- Frequency response: 110–10000 Hz; covers lower midrange up to higher treble, enabling solid vocal presence and instrument realism.
- RMS Power: 300 W; continuous power handling for steady performance without clipping under normal use.
- MAX Power: 600 W; peak capability for brief bursts, giving headroom during transient musical peaks.
- Impedance: 4 Ohm; compatible with a wide range of amplifiers and easy to impedance-match in multi-driver systems.
- SPL: 97.50 dB; higher sensitivity means more output from the same amplifier power, aiding loud, detailed midrange performance.
- Voice coil: 2.00" with CCAW wire; larger coil diameter supports power handling and thermal management for sustained output.
- Cone & surround: Paper cone with cloth surround; chosen combination balances midrange clarity with mechanical control.
- Magnet & frame: Ferrite magnet and cast aluminum frame; rigid construction aids linearity and durability in automotive environments.
- Mounting depth: 3.3" (84 mm); practical clearance requirement for installation in typical doors or kick-panel spaces.
- Cut-out: 7.56" (192 mm); defines the installation opening needed for proper fit.

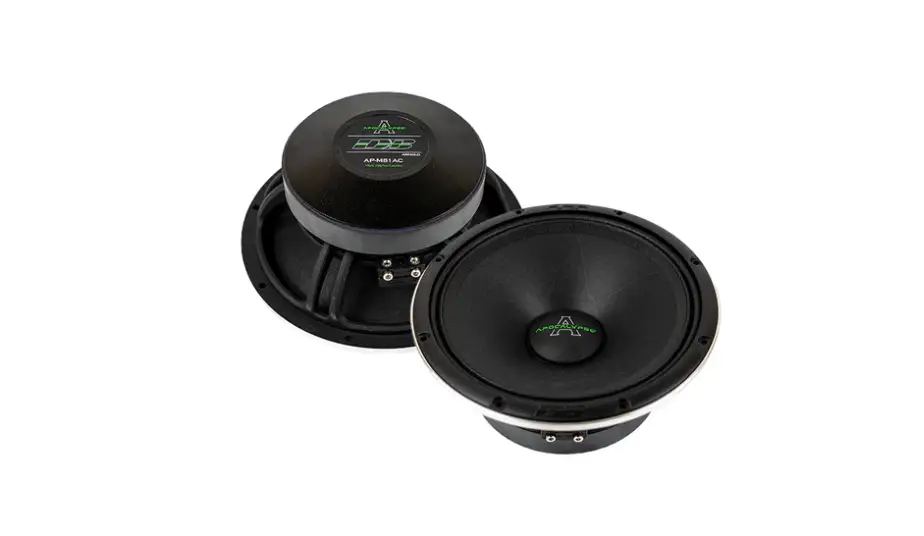

- Packaging: Package quantity is Pair; ready for stereo installation in front or rear stage configurations.
In a multi-driver front stage, AP-M81AC provides focused midrange output with reliable power handling and a 4 Ohm load that pairs well with many amps. The combination of a solid 2.00" voice coil, ferrite magnet, and cast aluminum frame delivers stable, repeatable midrange performance across demanding listening sessions. The 88 Hz Fs and 0.39 Qts contribute to controlled low-frequency onset and tight midbass integration, helping your system achieve a cohesive vocal image without excessive cone excursion.
| Model | AP-M81AC |
| Type | Midrange |
| Size | 8" |
| Frequency response | 110-10000 Hz |
| Package quantity | Pair |
| Voice coil size | 2.00" |
| Cone | Paper |
| Magnet | Ferrite |
| Voice coil wire | CCAW |
| Surround | Cloth |
| RMS Power | 300 W |
| MAX Power | 600 W |
| Frame | Cast Alu |
| Impedance | 4 Ohm |
| SPL | 97.50 dB |
| Fs | 88.00 Hz |
| Qts | 0.39 |
| BL | 9.10 |
| Vas | 19.80 L |
| Mounting depth | 3.3" (84 mm) |
| Cut-out dimension | 7.56" (192 mm) |
| Gross weight | 16.36 lb (7.42 kg) |
