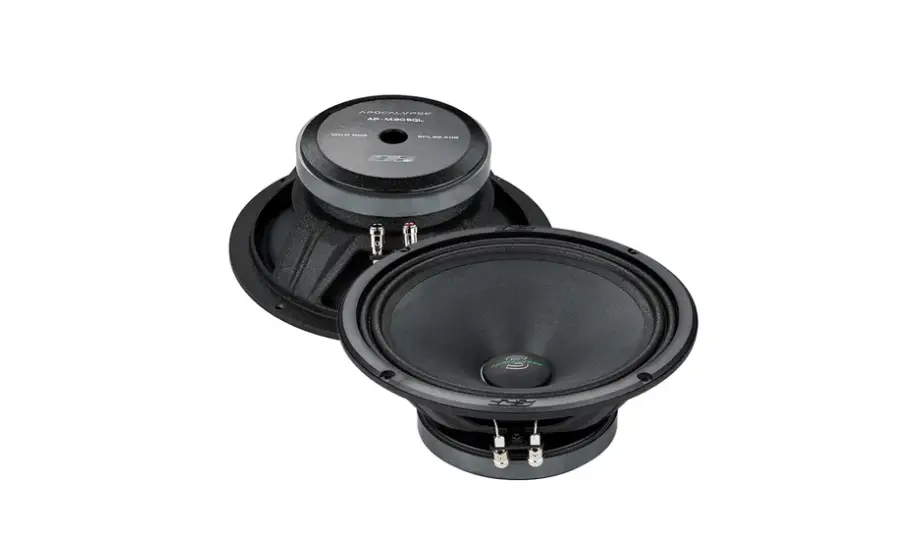

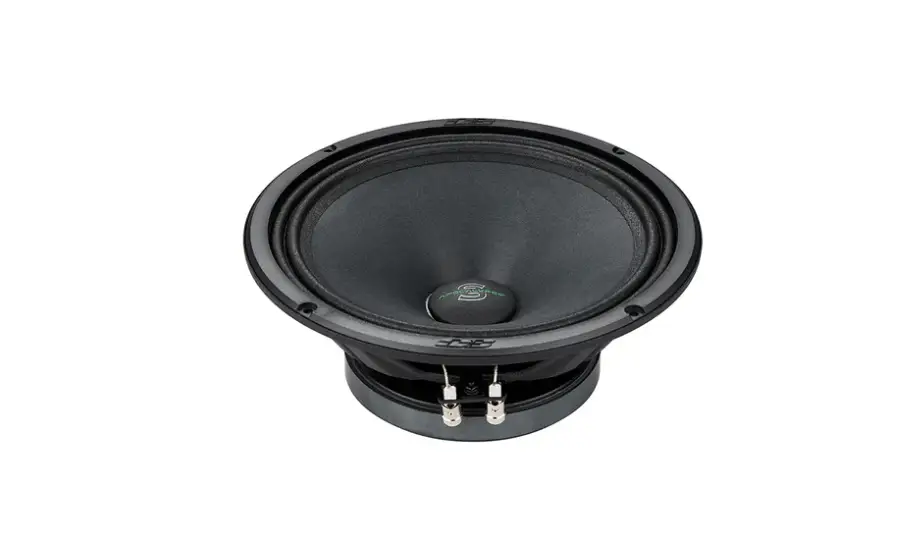

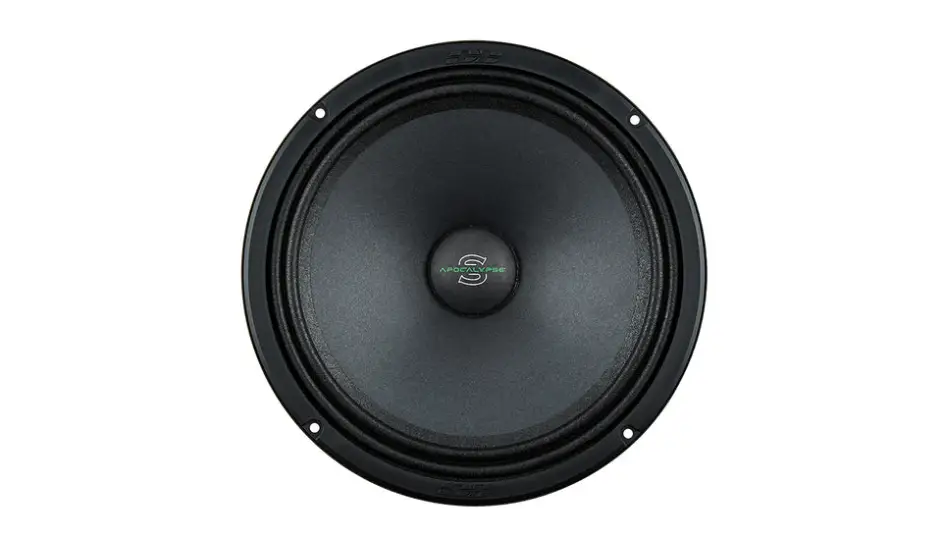

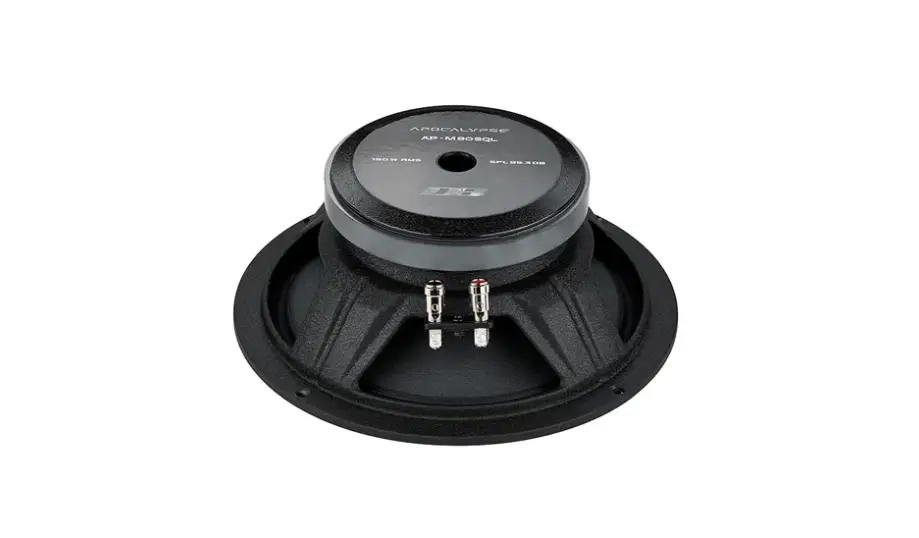

Deaf Bonce Apocalypse AP-M80SQL 8" Mid-Range Speakers (Pair)

The Deaf Bonce Apocalypse AP-M80SQL is an 8-inch midrange driver built for car-audio enthusiasts who demand precise vocal mids and detailed instrument texture. With 150 W RMS handling, 300 W peak, and a 4 Ω impedance, it delivers efficient, controlled midrange output in a compact package.

• Size: 8" diameter — standard footprint for direct-fit midrange locations in many vehicles.
• Type: Midrange — focused output in the middle of the frequency spectrum for clear vocals and instrument detail within a multi-way system.
• Frequency response: 80–14000 Hz — covers the lower midrange up through the upper treble for balanced midrange presentation.
• RMS Power / MAX Power: 150 W RMS / 300 W max — steady continuous handling with headroom for brief transients.
• Impedance: 4 Ω — typical load that works with a wide range of aftermarket amplifiers and crossover designs.
• SPL: 95.3 dB — sensitivity indicating how loud the driver will play with a given power input.
• Voice coil size: 1.50" diameter, CCAW — larger coil with copper-clad aluminum wire supports power handling and heat dissipation.
• Cone: Paper — lightweight and stiff for fast midrange response and accurate transient reproduction.
• Magnet: Ferrite — proven, compact magnet suitable for durable, consistent performance.
• Surround: Cloth — durable edge material designed to withstand daily driving flexing.
• Frame: Steel — rigid chassis that helps maintain mounting integrity and consistent performance.
• Thiele–Small parameters: Fs 80 Hz; Qts 0.41; BL 7.44; Vas 22.42 L — technical data to guide enclosure sizing, crossover points, and system tuning.
• Package quantity: Pair — ships as a matched two-driver set for balanced stereo or dual-midrange applications.

In a real car build, AP-M80SQL excels as the midrange in a two- or three-way system, delivering prominent vocal presence and instrument detail while integrating with subwoofers and tweeters. The 4 Ω load and 95.3 dB sensitivity help maximize loudness with compatible amplifiers, and the 150 W RMS rating provides reliable power handling without excessive heat. The included Thiele–Small data supports proper enclosure design and crossover planning for smooth midrange integration across vehicle acoustics.
