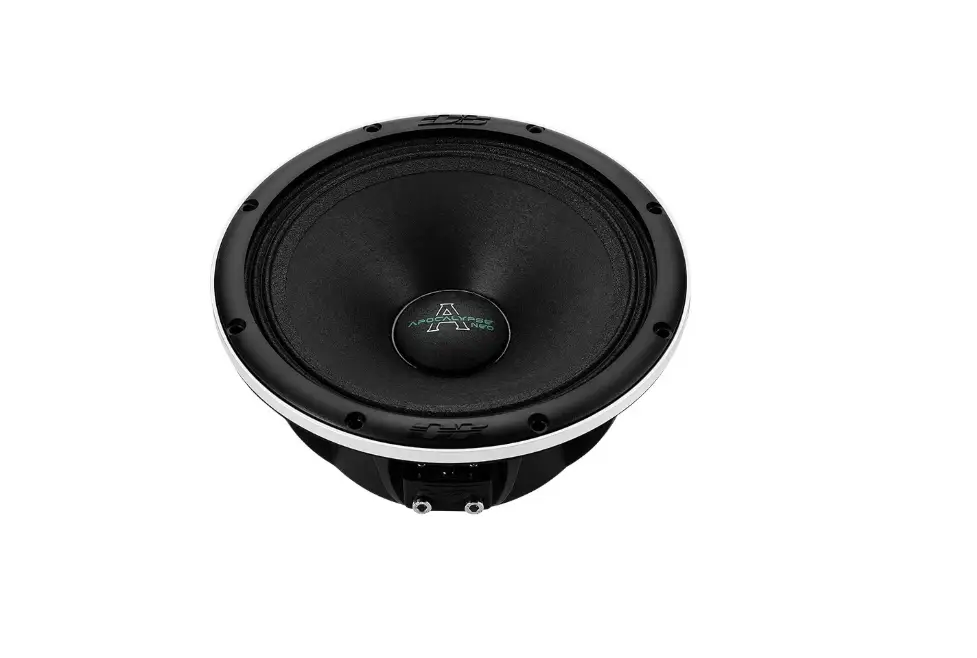

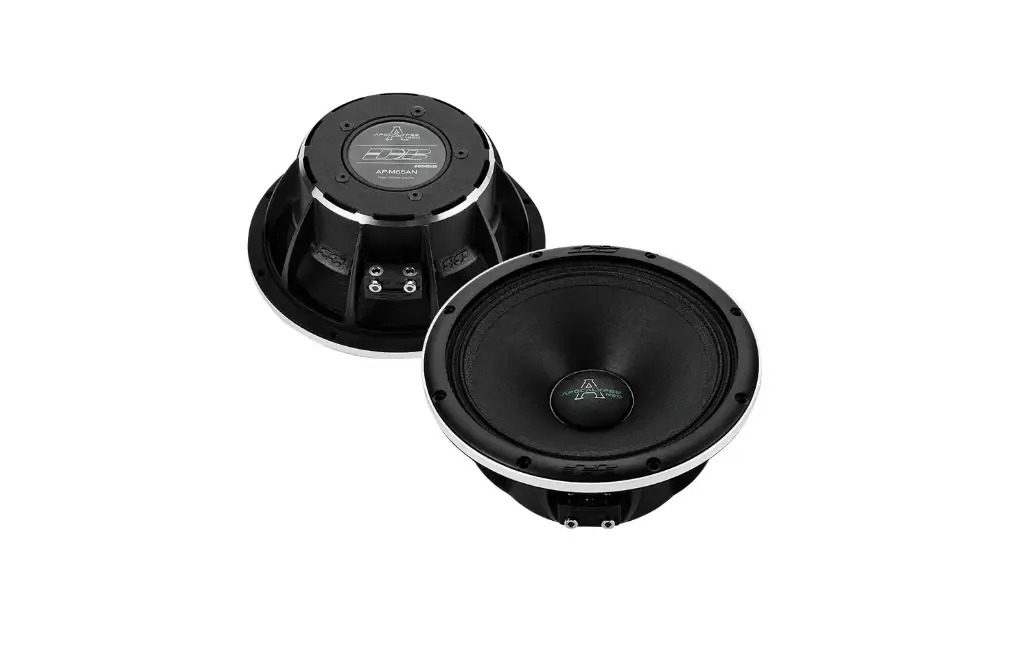

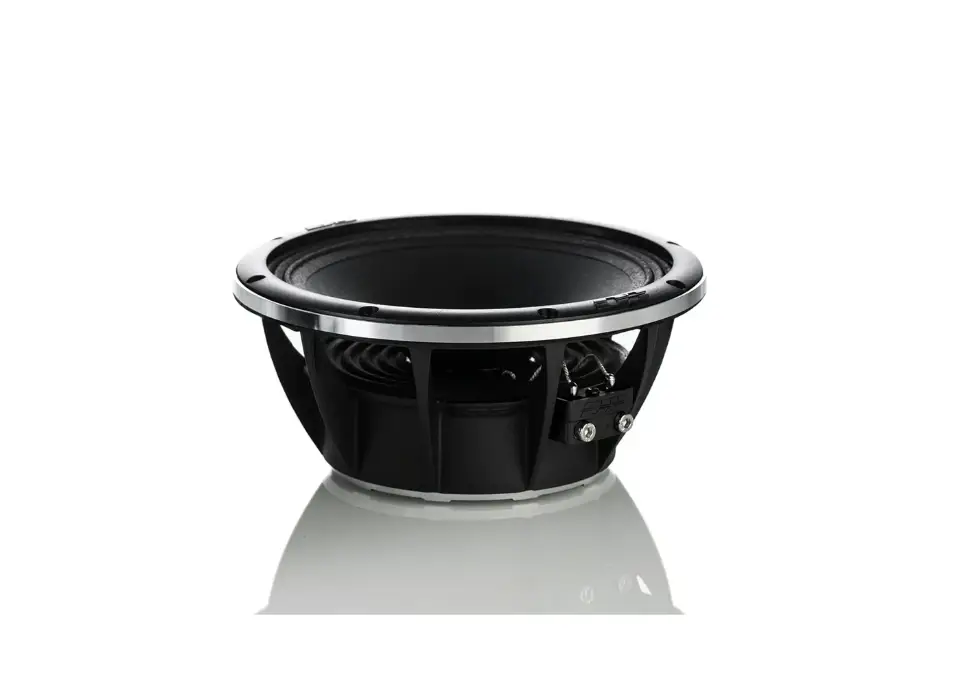

Deaf Bonce Apocalypse AP-M65AN PRO NEO Mid-Range Speakers (Pair)

Deaf Bonce Apocalypse AP-M65AN PRO Neo Mid-Range Speakers (Pair) are 6.8-inch midrange drivers engineered for precise vocal clarity and extended upper-frequency response in premium car audio builds.

• Size: 6.8 inch — places the driver in the midrange category, suitable for dedicated midrange paths in multi-driver systems.
• Frequency response: 120–14000 Hz — covers vocal fundamentals through to upper treble for balanced in-car mids and detailed highs.
• Package quantity: Pair — designed to be used as a matched pair in a two-channel midrange setup.
• Voice coil size: 1.75 inch — a sizable coil that supports robust power handling within the driver’s compact form.
• Cone: Pressed Paper — provides stiffness and damping characteristics typical of midrange drivers, aiding clear midband reproduction.
• Magnet: Neodymium — magnet material specified, contributing to the driver’s architecture and magnetic design.
• Voice coil wire: CCAW — copper-clad aluminum wire used for winding, offering a balance of conductance and light weight.
• Surround: Cloth — damping around the cone that helps control excursion and response smoothness.
• RMS Power: 220 W — continuous power handling capability for steady in-car listening without clipping when paired with suitable amplification.
• MAX Power: 440 W — peak power handling for brief push periods before distortion limits are reached.
• Frame: Alu — aluminum frame construction contributing to rigidity and reduced weight.
• Impedance: 4 Ohm — standard car-audio load that interacts with most amplifiers for efficient transfer of power.
• SPL: 102.9 dB — sensitivity indicating the approximate output level achievable with a given input power.
• Fs: 126 Hz — resonant frequency parameter affecting low-end behavior and enclosure alignment considerations.
• Qts: 0.32 — thiele-small parameter reflecting the driver’s overall acoustic alignment for typical midrange use.
• BL: 12.9 — motor strength indicator related to control of cone motion under excitation.
• Mounting depth: 2.8 inch — shallow mounting capability suitable for tight-fit installations.
• Cut-out dimension: 6.14 inch — the required cut-out diameter to install the speaker.

Benefits: This midrange driver excels as a dedicated midchannel in high-performance systems, delivering clear vocal articulation and extended highs when paired with appropriate amplification. With 220 W RMS handling and 440 W peak capability, it accommodates lively in-car listening without overdriving the coil, while the 4 Ω impedance and 102.9 dB SPL sensitivity help achieve strong, audible mids from a range of amplifiers. The combination of a pressed-paper cone, cloth surround, and neodymium magnet is configured to yield solid midrange presentation within a compact aluminum frame, and the 2.8" mounting depth with a 6.14" cut-out defines its install footprint for integration into a variety of dash or door locations.
