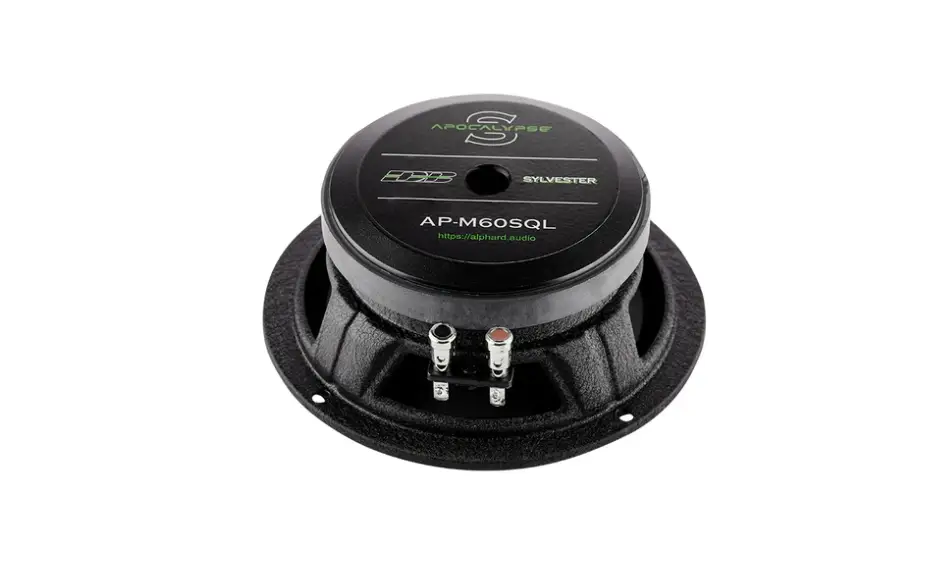

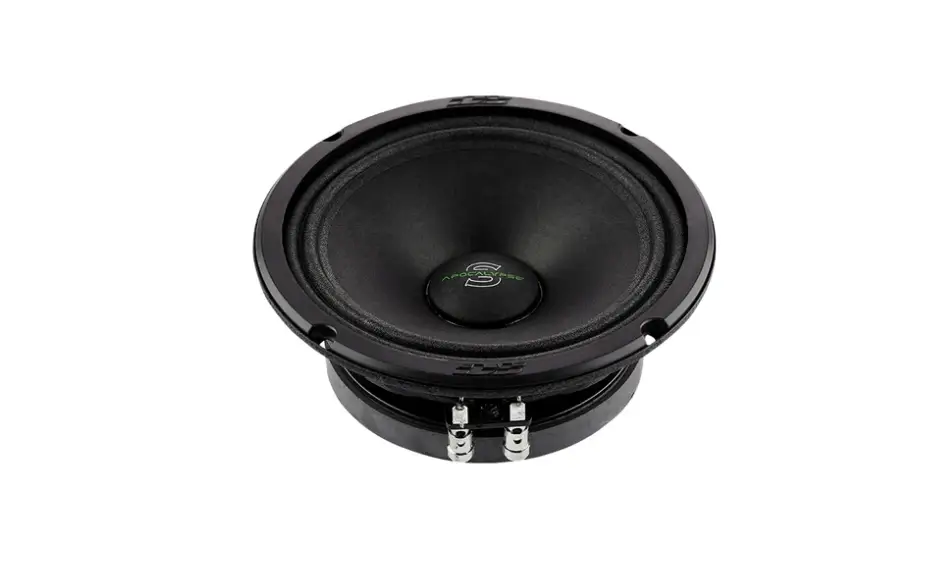

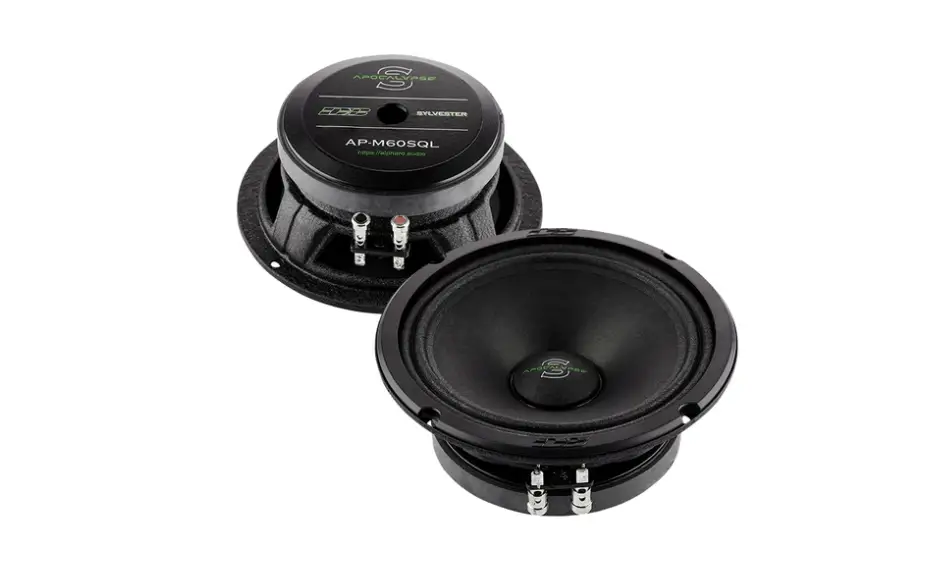

Deaf Bonce Apocalypse AP M60SQL | 6.5" Mid-Range Speakers (Pair)

The Deaf Bonce Apocalypse AP M60SQL is a 6.5" midrange pair engineered for precise vocal and instrument clarity in high‑performing car audio builds. Built for enthusiasts who demand controlled midrange presence with solid power handling, it covers 100–13,000 Hz with 150 W RMS (300 W max) and a 4-ohm load.

• Type: Midrange — focused on the central vocal/instrument band to complement tweeters and woofers without muddling the lows or sizzle in the highs.
• Size: 6.5" — a common fit in door or kick panels, balancing enclosure options with midrange authority.
• Frequency response: 100–13000 Hz — broad mid/high coverage so you can pair with a dedicated tweeter for a fuller two‑ or three‑way setup.
• RMS Power: 150 W — continuous power handling for sustained midrange clarity without clipping when driven by a suitable amplifier.
• MAX Power: 300 W — peak capability to handle transient musical dynamics without damage.
• Impedance: 4 Ohm — standard car‑audio load that pairs well with a wide range of amplifiers and maintains reasonable sensitivity.
• SPL: 97.50 dB — efficiency rating indicating how loud the driver can get with a given input power.
• Voice coil size: 1.50" — larger coil improves heat handling and dynamic response in the midrange.
• Cone: Paper — light, stiff material contributing to crisp midrange detail and transient response.
• Surround: Cloth — durable, flexible edge for long‑term performance and excursion control.
• Frame: Steel — rigid structure that helps reduce vibration and maintain voice coil alignment.
• Mounting depth: 2.37" (60.2 mm) — relatively shallow depth facilitates installation in tight panels with sufficient clearance.
• Cut-out dimension: 5.71" (145.0 mm) — hole size required for proper installation fitment.
• Vas: 5.20 L — recommended enclosure volume guidance for enclosure designer considerations.
• Fs: 110 Hz — resonance frequency affecting how the driver behaves in enclosed spaces.
• Qts: 0.45 — damping factor that influences enclosure type (sealed vs. vented) for intended midrange performance.
• BL: 7.70 — motor strength indicator tied to control and linearity of midrange motion.
• Magnet: Hybrid — strong magnetic field for stable, consistent performance across the midrange band.
• Voice coil wire: Aluminum — lightweight conductor aiding heat dissipation and efficiency.
• Gross weight: 8.62 lb (3.91 kg) — mass reflects construction robustness and packaging for Pair configuration.

Benefits: This pair is tailored for front-stage deployment in high‑fidelity systems, delivering clean midrange articulation when paired with suitable tweeters and woofers. The 4-ohm load and 97.5 dB sensitivity enable effective amp matching for strong vocal presence, while the shallow mounting depth and precise cut‑out prepare installers for a wide range of vehicle dashboards and doors. The combination of a paper cone, cloth surround, and hybrid magnet provides a balanced, controlled midrange response with reliable heat management under musical transients.
