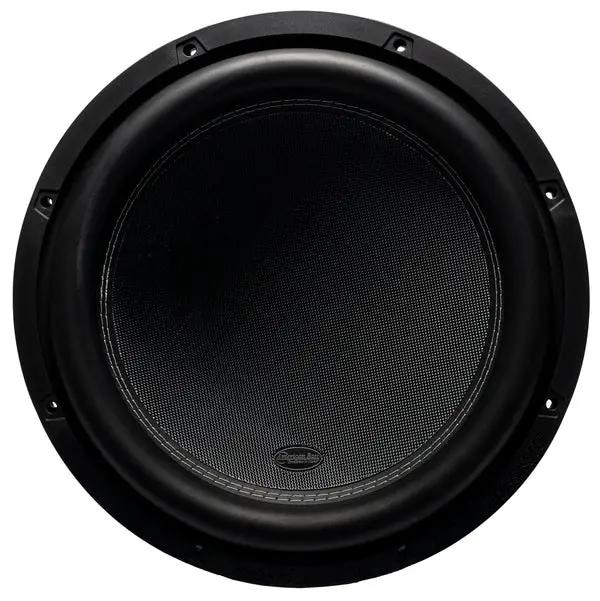

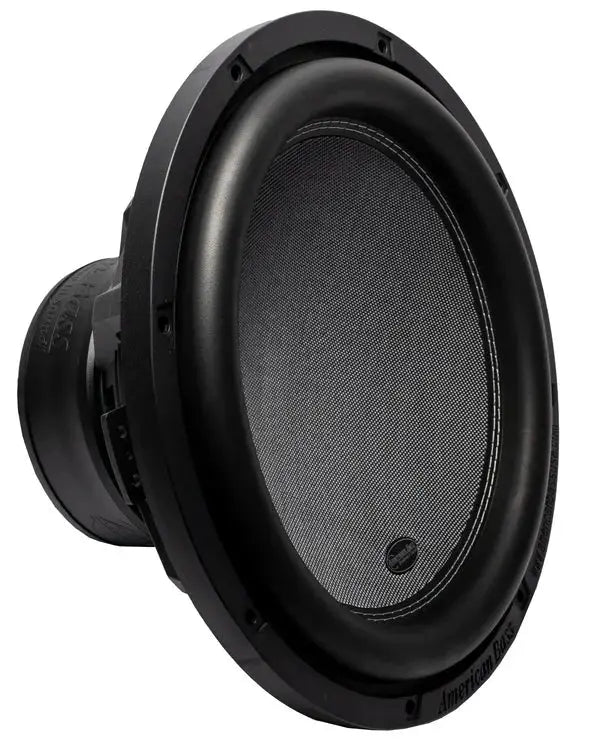

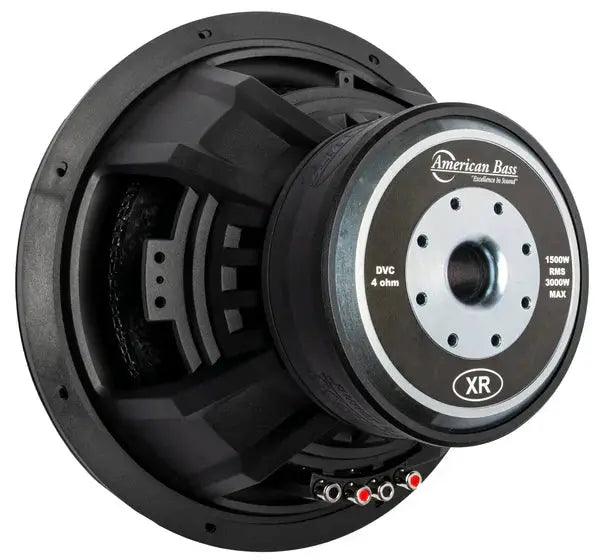

American Bass XR Series 15" Subwoofer

The American Bass XR Series 15" Subwoofer is a high‑power, dual‑2‑ohm woofer built for serious car audio enthusiasts who demand deep, controlled bass. With a 1500W RMS rating, 3000W peak, a fiberglass reinforced cone, and a cast basket, it delivers tight lows in a ported 3–3.5 ft³ enclosure, while redesigned terminals on one side streamline installation.

• RMS Power: 1500W — Enables sustained, high‑level bass performance when paired with an appropriately sized amplifier.
• Max Power: 3000W — Indicates the peak power the driver can withstand for short transients without immediate damage.
• Impedance (OHMS): D2 — Dual 2‑ohm voice coils allowing flexible wiring options to match different amplifier loads.
• Sensitivity: 86 dB — Reflects output per watt; requires sufficient input power to achieve higher listening levels.
• Mounting Depth: 8 in — Determines whether the sub will fit in shallow compartments or trunk panels.
• Cutout Size: 14 in — The circular opening needed in the mounting surface for installation.
• Ported Box Volume: 3–3.5 ft³ — Enclosure sizing that supports enhanced low‑frequency extension in a tuned ported design.
• Magnet Size: 200 oz — A large magnet provides stronger control of cone motion at high power for tighter bass.
• Voice Coil Size: 3" — A larger coil helps with heat handling and power delivery during demanding passages.
• Basket Type: Cast — Rigid frame that helps maintain alignment and reduces basket vibration under excursion.
• Recommended Amp (Pair): VFL 3K — Indicates the ideal amplification pairing to realize the sub’s high‑power potential in a typical build.

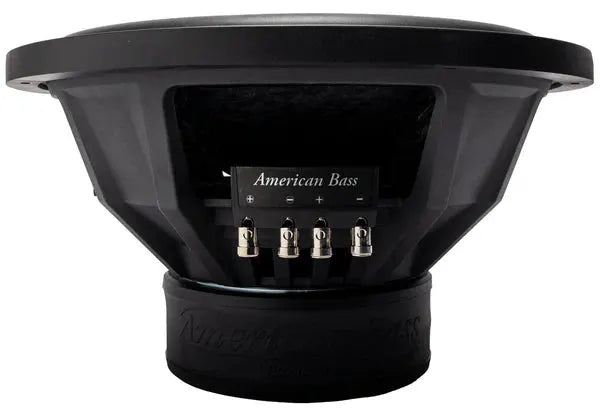

• Terminals: Side‑mounted terminals — Simplifies wiring and installation in tight trunks or custom enclosures.
• Cone Construction: Fiberglass reinforced — Stiff cone minimizes flex, improving transient response and clarity.
• Surround: Stitched rubber — Durable suspension that supports long‑term excursion reliability.

In a real car audio build, this subwoofer suits a high‑output system in a ported 3–3.5 ft³ enclosure, with a pair of VFL 3K amplifiers delivering the necessary power while maintaining control through the 200 oz magnet and rigid cast basket. The side terminals and robust construction address installation ease and long‑term reliability without compromising performance across genres.
