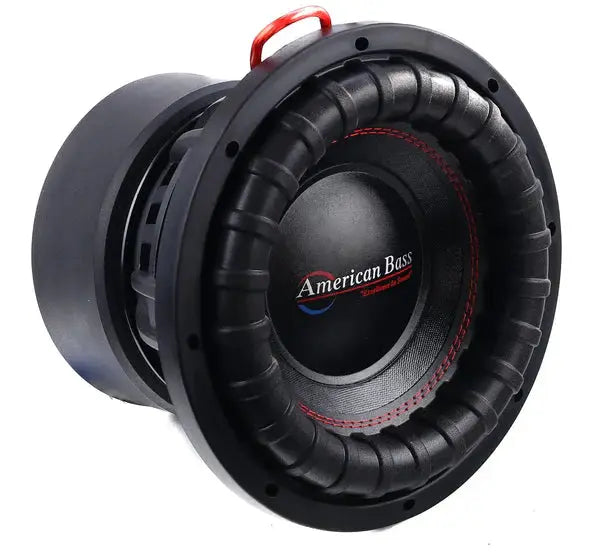

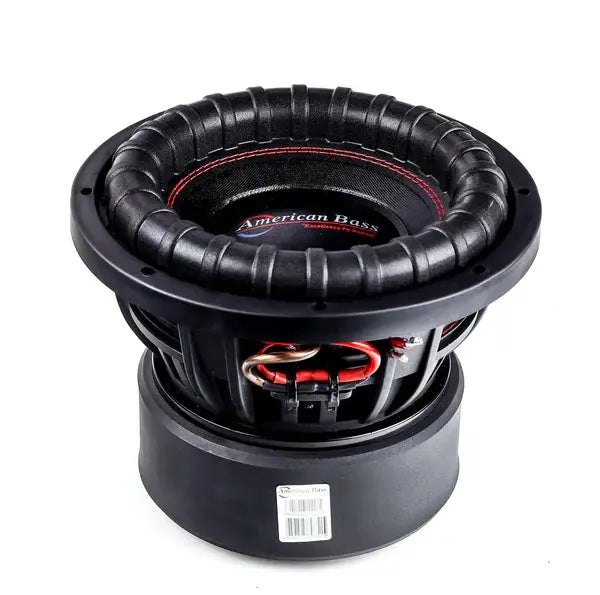

American Bass XFL Series 10" Subwoofer

The American Bass XFL Series 10" subwoofer is a high-power, dual-voice-coil driver built for serious car audio installations. It handles 1000W RMS (2000W max) with a 200 oz magnet and a cast basket, delivering tight, controlled bass in a 10" package.

• RMS Power: 1000W RMS — continuous power handling for steady output with the right amp.
• Max Power: 2000W — peak transient capability for brief, high-demand bass moments without clipping.
• Impedance (Ohms): D2/D4 — dual 2Ω or 4Ω voice coil wiring provides flexible amplifier matching and enclosure design.
• Sensitivity (dB): 83.5 — indicates how loud the driver is per watt under standard test conditions, influencing amp choice and headroom.
• Mounting Depth (in): 3.5" — depth requirement to fit in common vehicle cavities; plan clearance accordingly.
• Cutout Size (in): 9.4" — hole diameter needed in the mounting surface for proper installation.
• Ported Box (ft³): 1.25–1.5 — recommended vented enclosure volume to achieve tuned bass response and efficiency.
• Magnet Size (oz): 200 — large magnet contributes to power handling and control of cone motion under heavy bass.
• Voice Coil Size: 3" — substantial coil surface area for heat dissipation and excursion capability.
• Basket Type: Cast — rigid frame helps maintain alignment and reduces distortion during high-power play.
• Recommended Amp (Pair): VFL COMP 2K — pairing with these amplifiers provides appropriate power delivery for two units.

In a real build, this 10" XFL woofer excels in a vented enclosure around 1.25–1.5 ft³, with dual-VC flexibility and a robust motor for controlled, high-output bass. Its rigid cast basket and 200 oz magnet support stable operation under demanding music tracks, while the recommended VFL COMP 2K ensures the driver receives suitable power for musical, dynamic performance in larger vehicles.
