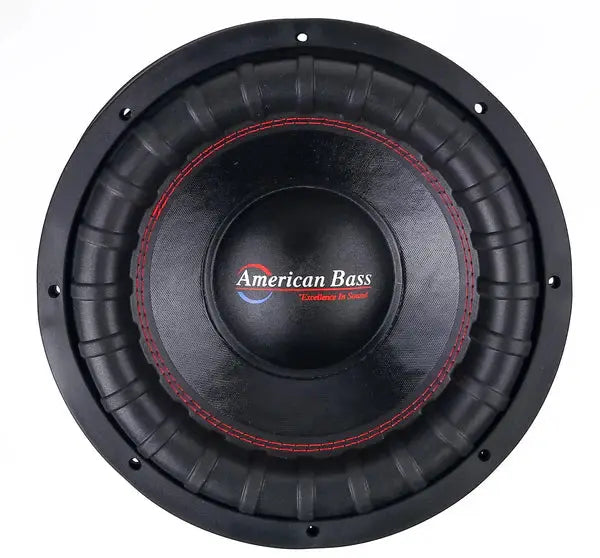

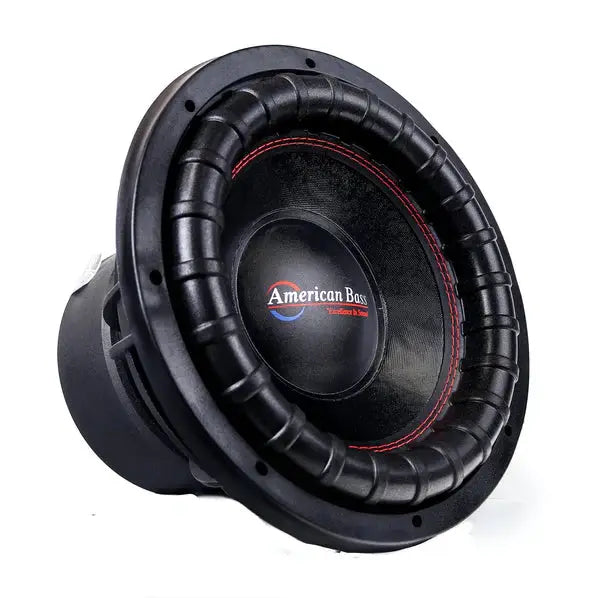

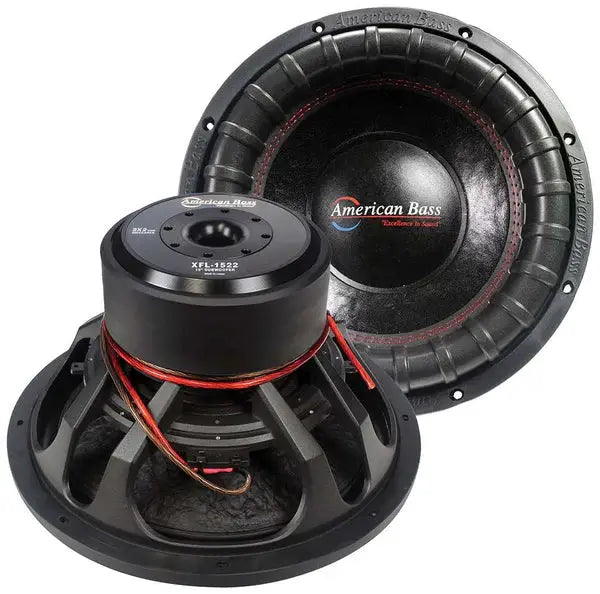

American Bass XFL 15" Subwoofer

The American Bass XFL 15" Subwoofer is a high-power 15-inch woofer built for serious car audio builds, delivering 1500W RMS and up to 3000W peak with a cast basket and a 200 oz magnet for solid control.

• RMS Power: 1500W — continuous power handling for sustained bass without clipping, enabling loud, clean bass during long listening sessions.
• Max Power: 3000W — peak capability for transient bass peaks and dynamic musical passages.
• Impedance (Ohms): D2/D4 — dual voice coils allowing flexible wiring options (2 ohms or 4 ohms per coil) to match amplifier loads.
• Sensitivity: 88.5 dB — efficiency rating indicating how loudly the woofer will play with a given input, shaping system design and placement.
• Mounting Depth: 9.33" — depth requirement helps determine fitment in shallow trunks or dash installations.
• Cutout Size: 15.6" — mounting hole diameter needed in the enclosure or mounting surface.
• Ported Box: 2.75–3.25 ft³ — recommended enclosure volume for a ported design to achieve desired bass extension and output.
• Magnet Size: 200 oz — larger magnet provides strong motor force for controlled cone movement under high power.
• Voice Coil Size: 3" — larger voice coil improves heat dissipation and power handling during heavy bass.

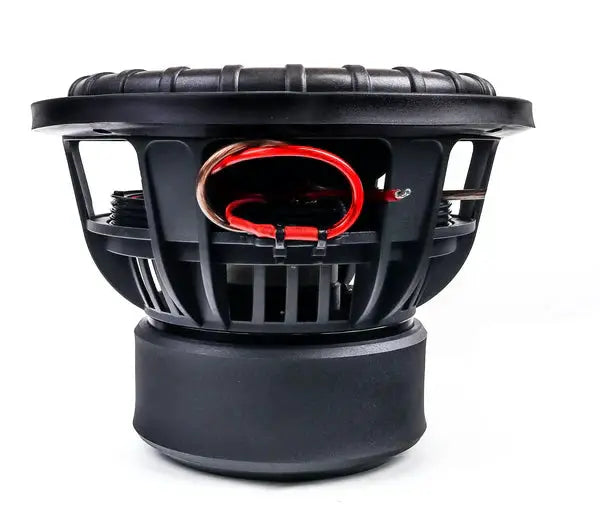

• Basket Type: Cast — rigid frame construction to minimize flex and preserve linear motion under excursion.
• Recommended Amp (Pair): VFL COMP 2K — pairing with these amplifiers is the manufacturer’s suggested setup to reach the stated power handling.

The XFL 15" is designed for high-demand, ported enclosure builds where power and control are required. In a 2.75–3.25 ft³ ported box with a 15.6" cutout and 9.33" mounting depth, it delivers deep, articulate bass with solid mechanical control. The dual D2/D4 voice coils and 200 oz magnet offer flexible wiring and robust performance with the recommended VFL COMP 2K amplifiers, making it well suited for dual-sub or high-output single-sub installations in tuned, carrier-grade systems.
