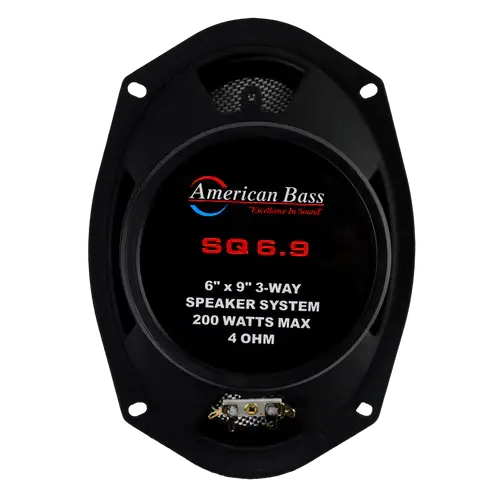

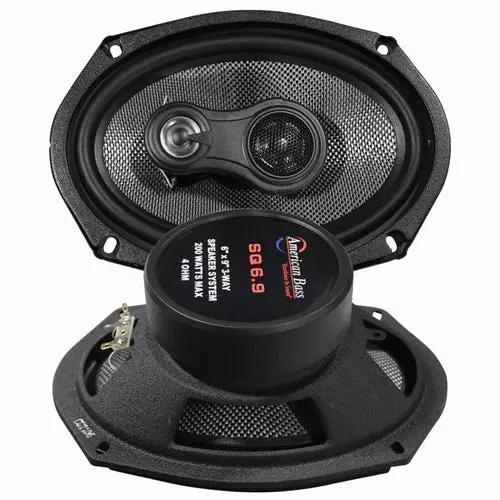

American Bass SQ 6.9 Full Range Speakers (Pair)

American Bass SQ 6.9 Full Range Speakers (Pair) deliver compact, high‑clarity full‑range sound for serious car audio builds. Built for enthusiasts who demand precise imaging and elevated highs, these 6.9-inch drivers pair a woven carbon glass fiber cone with neodymium swivel tweeters for cleaner, louder performance.

• RMS Power: 80W — continuous power handling that supports steady listening at believable listening levels without audible clipping when paired with a suitable amplifier.
• Max Power: 200W — peak power capacity for brief transients, helping preserve dynamics during fast musical passages.
• Impedance (Ohms): 4 — standard car-audio load that balances amplifier compatibility with current delivery for stronger output at a given voltage.
• Sensitivity: 92dB — higher efficiency means more output from less power, aiding loudness in typical vehicle installations.
• Mounting Depth (in): 3.25 — compact depth that facilitates installation in tighter spaces without compromising enclosure or door cleanly fitting.
• Cutout Size (in): 8.5 x 5.75 — mounting opening you’ll need to accommodate these drivers in standard panels or doors.
• Ported Box (Hz - kHz): 55Hz - 22kHz — broad frequency coverage, contributing to a wide, full sound across the audible range.
• Magnet Size (oz): 25 — substantial magnetic weight for improved control of cone motion and reduced distortion at higher excursion.
• Voice Coil Size: 1 — larger coil support helps with heat dissipation and sustained performance under demanding playback.
• Basket Type: Stamp Steel — rigid frame that enhances alignment and durability under real-world road conditions.
• Additional features: Neodymium swivel tweeters, butyl rubber surrounds, and a woven carbon glass fiber cone are included to deliver higher power handling, improved clarity, and stable high-frequency performance.

Benefits: In a typical 4-ohm, two‑way front stage, these speakers provide clear highs from the neodymium tweeters and strong midrange with the carbon glass fiber cone, while the 92 dB sensitivity helps reach higher sound levels without excessive amplifier power. The 3.25-inch mounting depth and 8.5 x 5.75-inch cutout enable versatile placement in doors or dashboards, making them suitable for compact builds without compromising bass reach or tonal balance. The robust 25 oz magnet and 1-inch voice coil add thermal and dynamic headroom, and the stamp steel basket supports rigid, consistent performance over time.
