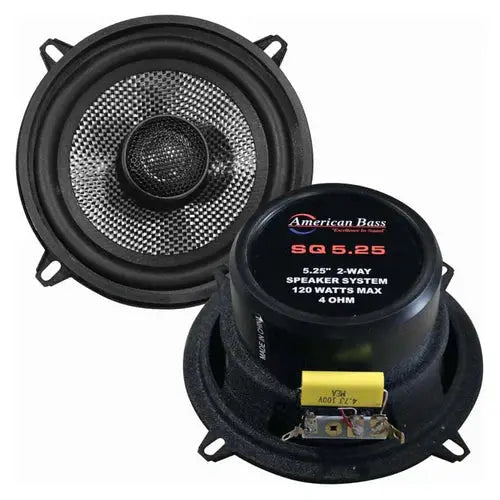

American Bass SQ 5.25 Full Range Speakers (Pair)

American Bass SQ 5.25 Full Range Speakers (Pair) deliver a compact, high-efficiency full-range solution with 60W RMS continuous power and 120W peak, built for enthusiasts who demand clear mids and extended highs from a 5.25-inch footprint. The pair leverages neodymium swivel tweeters, butyl rubber surrounds, and a woven carbon glass fiber cone for improved power handling and detail.

• RMS Power: 60W — Continuous power handling that supports steady, clean listening when paired with a compatible amplifier; designed for reliable daily use without clipping.
• Max Power: 120W — Peak power capability to handle transient musical transients without overdriving the speaker.
• Impedance (OHMS): 4 — A 4-ohm load that works with a wide range of car audio amplifiers and head units, influencing how power is delivered to the voice coil.
• Sensitivity: 88dB — Efficiency rating indicating how loudly the speaker will play from a given input; translates to usable volume with standard car audio sources.
• Mounting Depth (In): 2.5 — Very shallow chassis depth, aiding fitment in tight door cavities or shallow mounting locations.
• Cutout Size (In): 4.625 — Required hole diameter for installation; ensures proper fit within typical 5.25" mounting openings.
• Ported Box (FT³): 75Hz - 22KHz — Provided frequency range guidance for ported installations, spanning from the lower bass area up through the upper treble range.
• Magnet Size (Oz): 20 — Relatively sizable magnet for stronger control of cone movement and consistent performance at higher excursion.
• Voice Coil Size: 1 — One-inch voice coil contributing to reliable power handling and thermal management during extended listening.
• Basket Type: Stamp Steel — Robust, rigid frame that maintains voice coil alignment under dynamic motion.
• Neodymium Swivel Tweeters: Adjustable high-frequency drivers to tailor treble response and aim sound toward the listener for clearer highs and improved imaging.
• Butyl Rubber Surrounds: Durable edge material that helps maintain cone alignment and reduces unwanted flex, supporting smoother excursion and long-term durability.
• Woven Carbon Glass Fiber Cone: Higher rigidity and heat resistance for cleaner power handling and improved overall clarity across the frequency range.

Benefits: This pair is well-suited for a compact two-way front or rear setup in cars where space is at a premium. The 4-ohm load, 88dB sensitivity, and 60W RMS rating pair well with standard head units or modest external amplifiers, delivering audible detail without demanding excessive amplification. The integrated neodymium tweeters, durable surrounds, and carbon glass fiber cone work together to provide extended highs, solid midrange response, and controlled excursion in a shallow installation footprint, making it a practical upgrade for tight-door applications or dash mounts.
