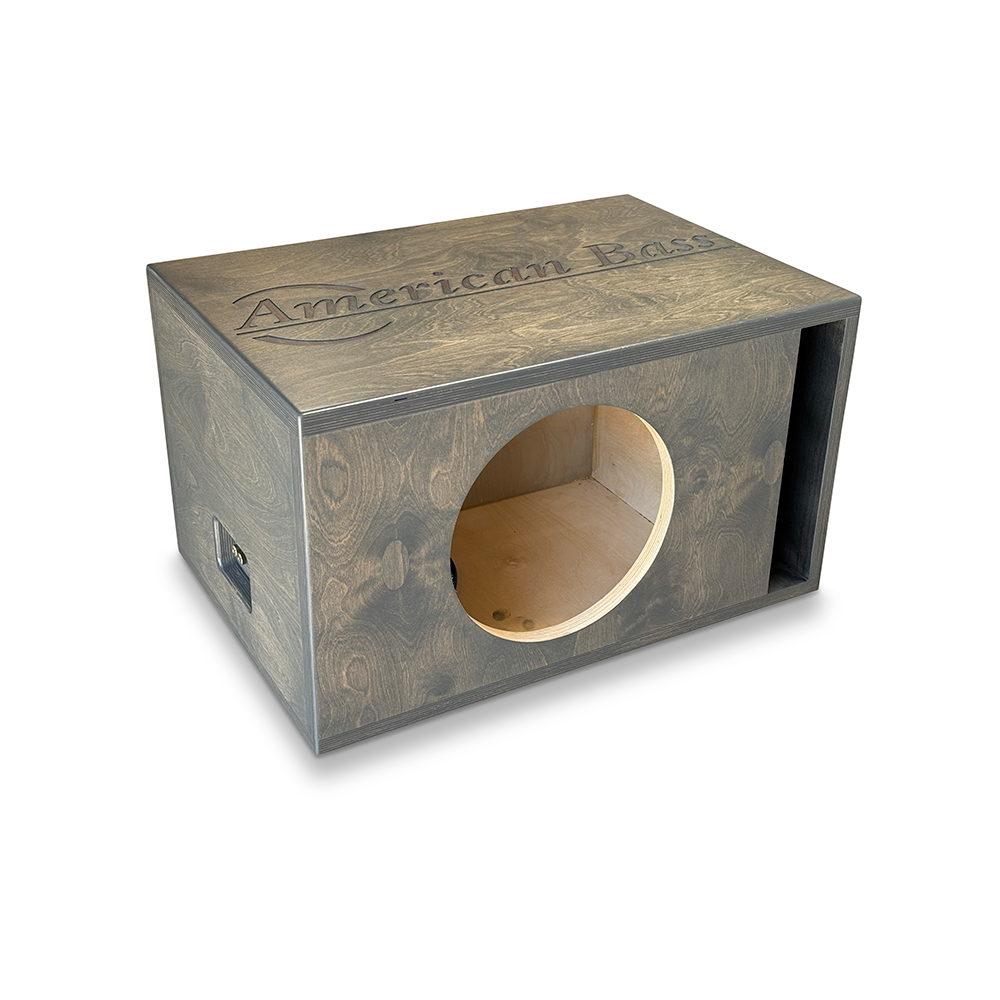

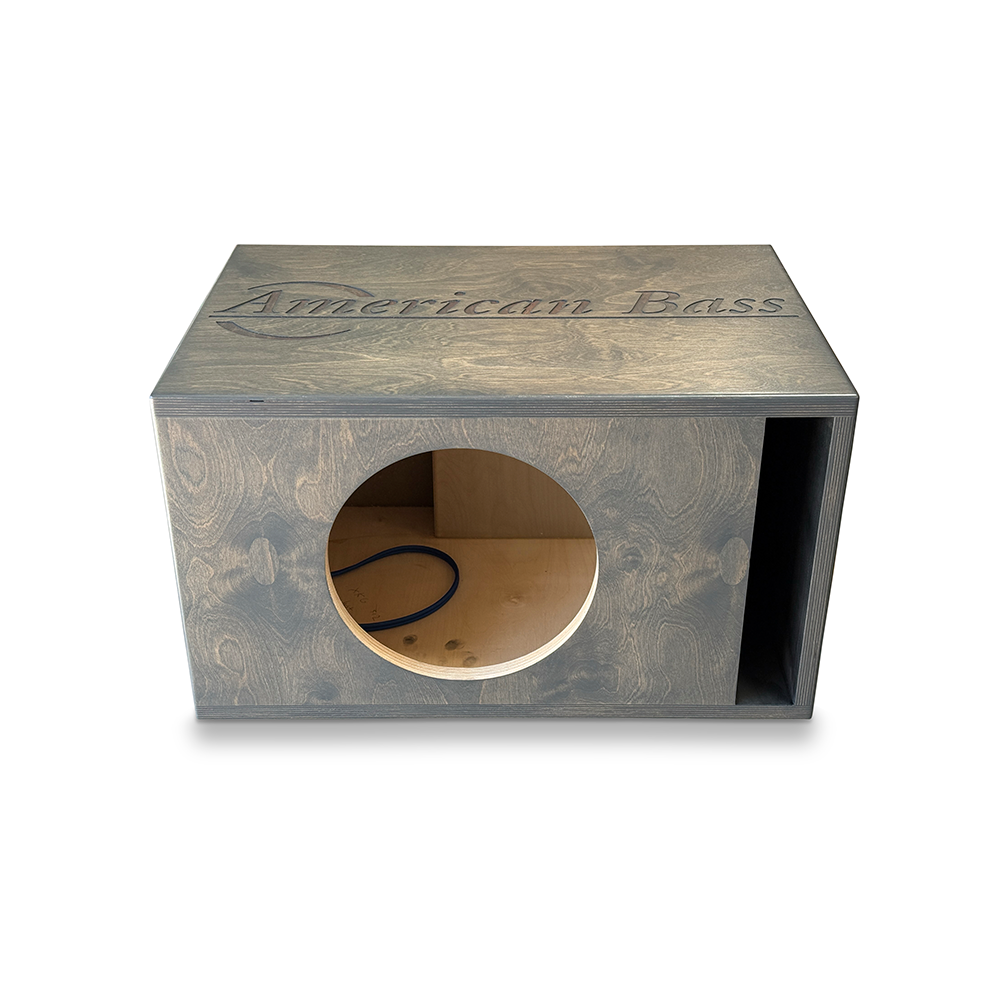

American Bass Single 10" XFL Ported Enclosure

Engineered for the American Bass XFL 10" sub, this 1.25 cu ft ported enclosure is tuned to 34 Hz for deep, controlled bass from the driver. Handcrafted in the USA from 13-ply Russian Baltic Birch with a solid 1" front baffle, it features a carbon gray finish and a zero-visible-screw exterior for a clean, show-ready appearance.

• Net Volume: 1.25 cubic feet of internal airspace designed to support the XFL 10" for strong low-end performance.
• Tuning: 34 Hz tune to maximize low-frequency extension and maintain controlled port airflow.
• Port Geometry: Port Area 17.82 square inches with an 11.497" x 1.55" port opening for tuned air movement.
• Cutout: 9.375" diameter cutout designed for precise mounting of the XFL 10" sub.
• Construction & Baffle: 3/4" (18mm) Russian Baltic Birch—13-ply with a 1" (24mm) front baffle, 17-ply.
• Finish & Exterior: Carbon gray stain with polyurethane topcoat; handcrafted in the USA with zero visible exterior screw holes.

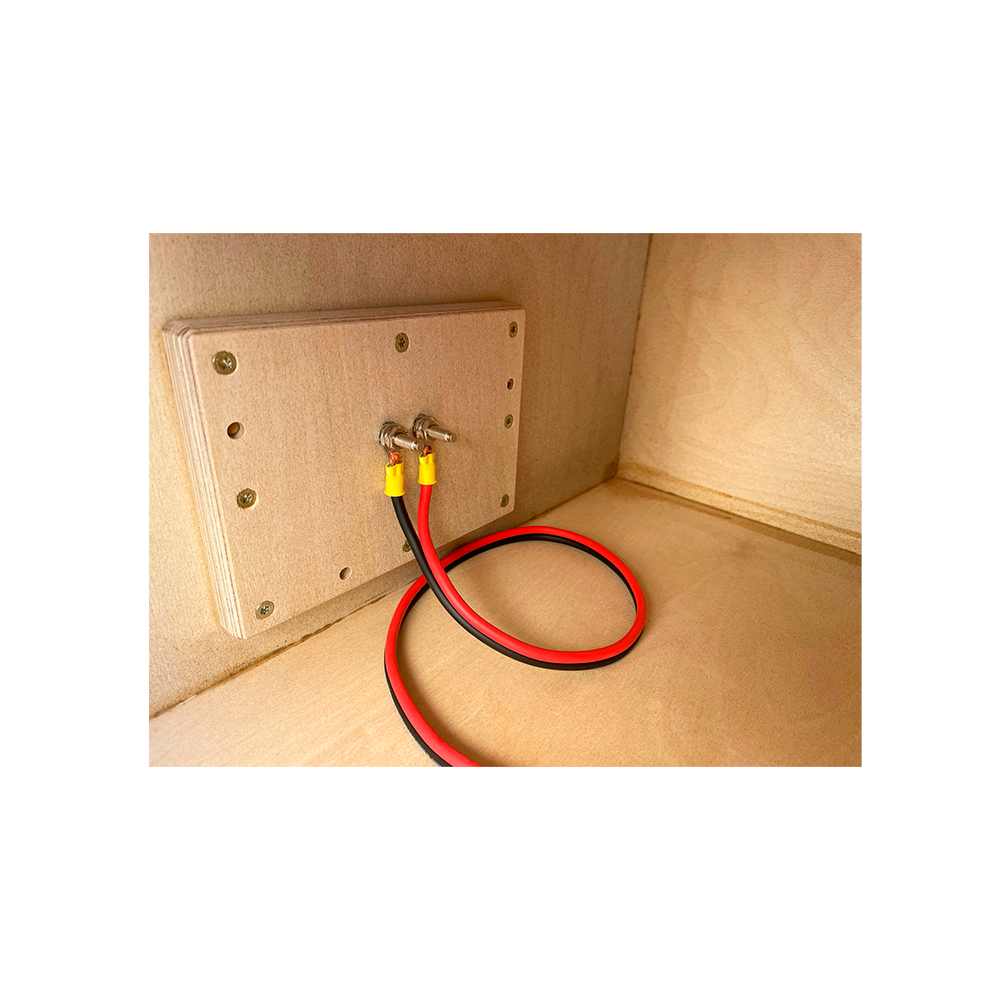

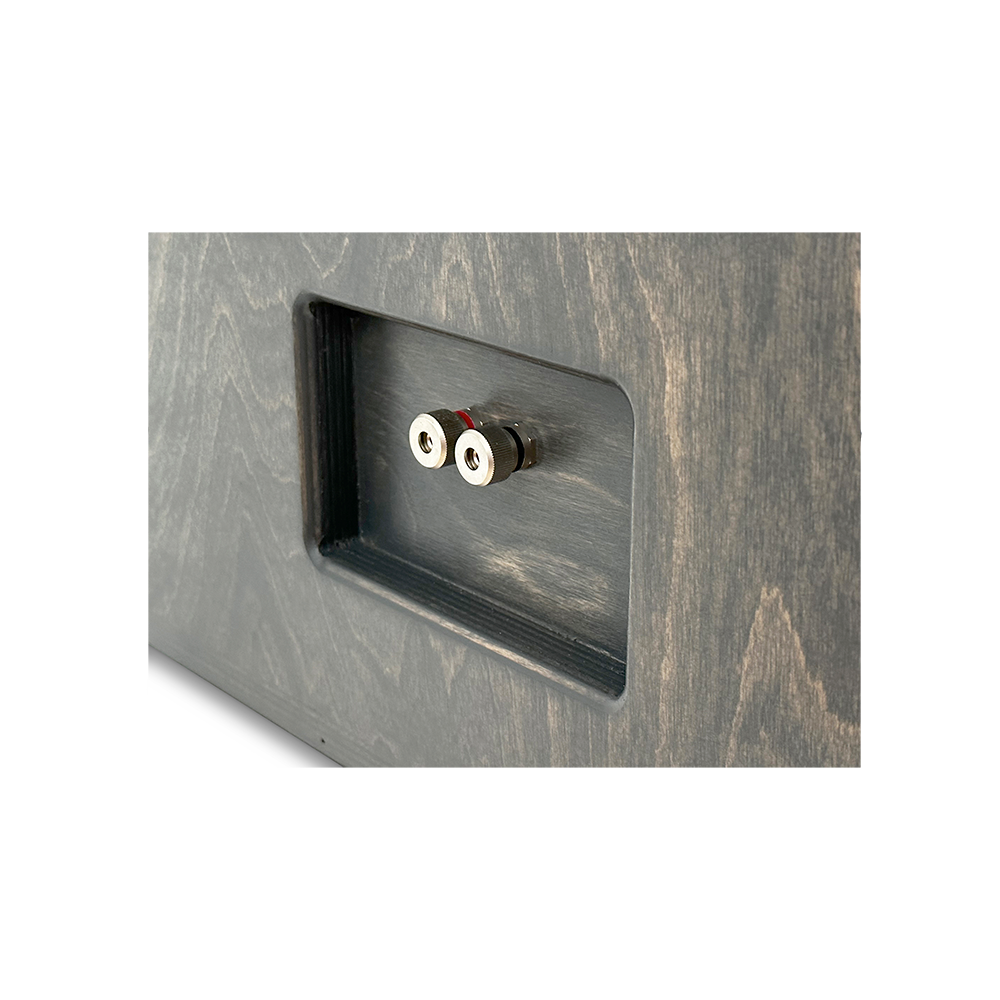

• Wiring & Power: Pre-wired 10 AWG OFC with metal binding post; Power rating up to 1750W RMS.
• Dimensions: Height 13.0", Width 22.875", Depth 14.0".
• Lead Time: Built to order; ships in 2–3 weeks.

In a real-world build, the enclosure provides the precise 1.25 cu ft airspace tuned to 34 Hz to maximize the XFL 10" sub's bass output with tight, controlled decay. The rigid Baltic Birch construction and solid front baffle minimize panel flex for repeatable performance, while pre-wired wiring and binding posts simplify installation. The exterior design offers a clean, show-quality look with no visible screws, and the box ships built to order ready for wiring the subwoofer.
