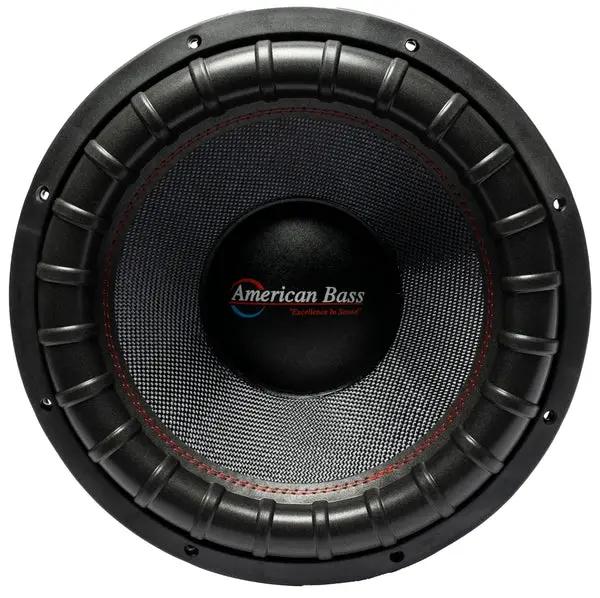

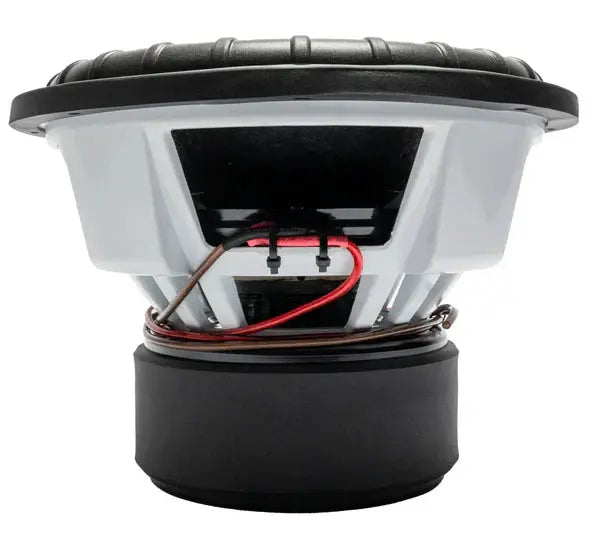

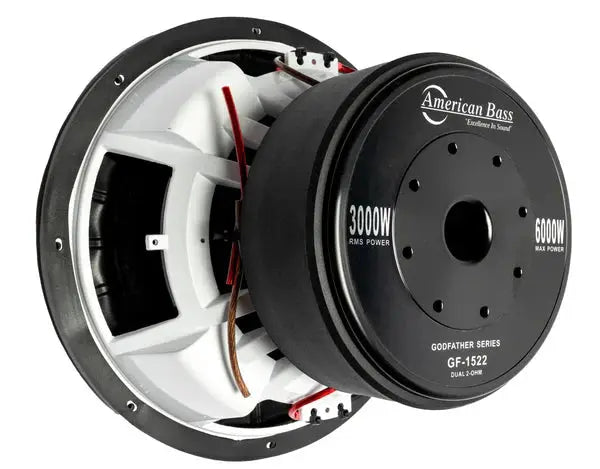

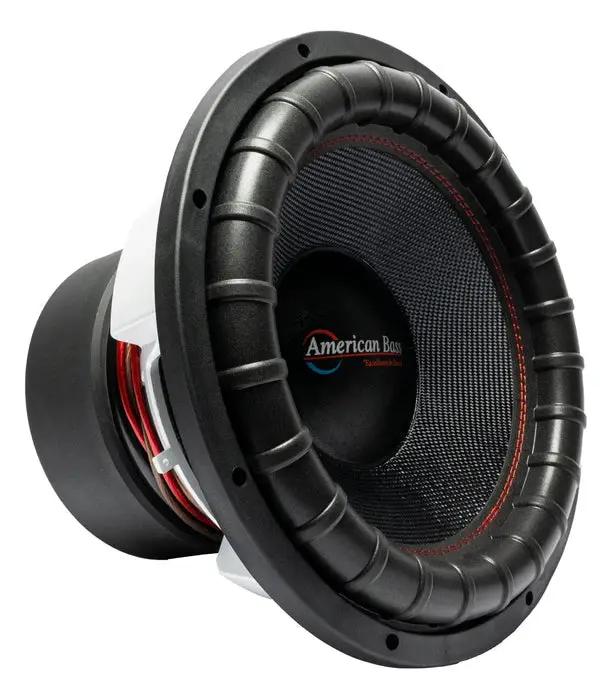

American Bass Godfather Series 15" Subwoofer

Designed for extreme SPL builds, the American Bass Godfather Series 15" Subwoofer delivers serious output with a 400 oz magnet, a 4” flat-wire wound high-temp coil, a multi spider system, and a double stitched cone, all backed by an air-cooled bottom plate for sustained performance at high power.

• RMS POWER: 3000W — represents the continuous power the driver is designed to handle; in practice, pair this with an appropriately matched high-output amplifier to achieve consistent, high-level bass without clipping.
• MAX POWER: 6000W — peak transient capability; designed to tolerate brief, high-power bursts typical in dynamic music passages without structural stress.
• IMPEDANCE (OHMS): D1/D2 — dual-voice-coil configuration allowing flexible wiring options to suit different amplifiers and install layouts.
• SENSITIVITY DB: 87/88.7 — efficiency metric indicating how much output you get per watt; higher values translate to louder response at a given input.
• MOUNTING DEPTH (IN): 9.92 — installation depth to plan clearance in the mounting location; affects enclosure compatibility and fitment in tight trunks or dashboards.
• CUTOUT SIZE (IN): 13.78 — front-baffle hole diameter required for installation; ensures a proper, flush mount with the enclosure face.
• PORTED BOX (FT³): 3 - 3.5 — recommended enclosure volume range; optimized for deep, reinforced bass with a tuned port for efficiency and extension.
• MAGNET SIZE (OZ): 400 — robust magnet contributing to BL and heat handling; supports high-power excursion and durability under demanding conditions.
• VOICE COIL SIZE: 4 — coil diameter that influences heat dissipation and linearity during high excursion.
• BASKET TYPE: CAST — rigid frame that enhances durability and alignment during heavy-duty operation and long-term use.
• RECOMMENDED AMP (PAIR): VFL 5K / VFL 6K — paired amplifiers suggested to unleash the driver’s potential in high-SPL installations while maintaining control and headroom.
• AIR-COOLED BOTTOM PLATE — helps dissipate heat during extended high-power play, supporting sustained output and reducing thermal compression.
• AMERICAN-MADE 4” FLAT WIRE WOUND HIGH TEMP COIL — advanced winding geometry for improved heat management and efficiency under demanding loads.
• MULTI SPIDER SYSTEM — multiple spiders enhance stiffness and control of cone motion for aggressive bass with better linearity.
• DOUBLE STITCHED CONE — reinforced cone edge for durability during high excursion and long-term reliability.

Benefits: In a large ported enclosure around 3 to 3.5 ft³, this 15" driver delivers high-SPL output with sustained power handling, ideal for trunk setups or dedicated installations where power and durability matter. The dual-voice-coil design and amplifier pair recommendations give you wiring and power options to tailor your system for aggressive bass without compromising control or reliability.
