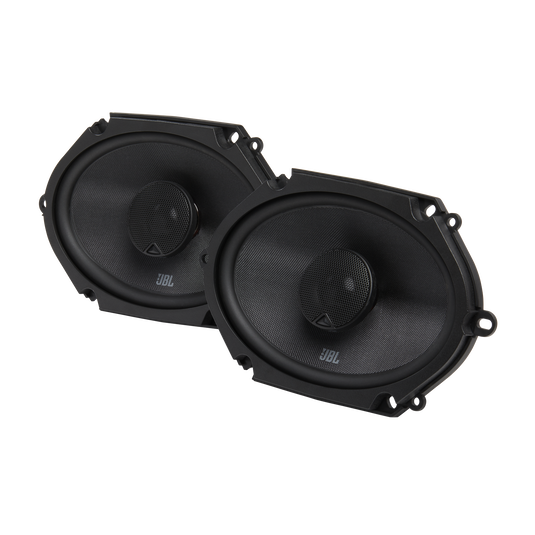

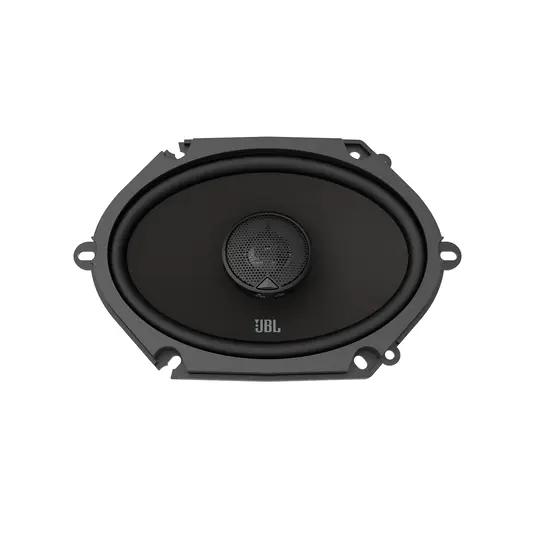

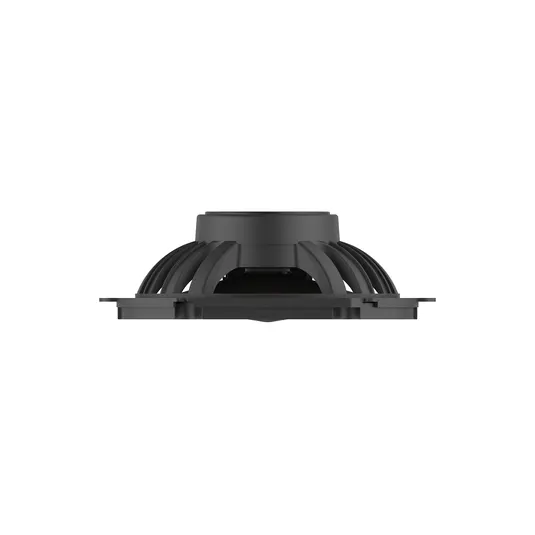

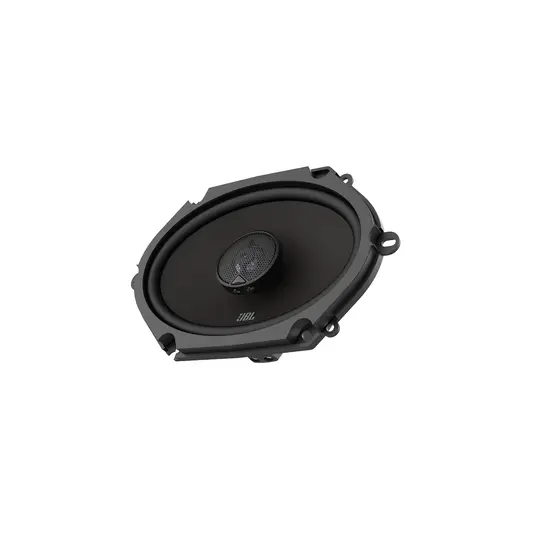

JBL Stadium 862F 6x8" 2-Way Coaxial Car Speakers

The JBL Stadium 862F 6x8" 2-Way Coaxial Car Speakers deliver 100W RMS / 300W peak power at a 3.0-ohm nominal impedance, bringing Stadium Series flagship engineering to a coaxial format. Glass-fiber Plus One™ woofer, high-resolution aluminum dome tweeter to 40kHz, UniPivot tweeter mount, and push-button level control — this is the Stadium Series experience without the component install complexity.

The woofer is built on JBL's patented Plus One™ glass-fiber cone architecture — glass-fiber reinforcement adds rigidity and reduces unwanted flex for tighter, more accurate bass reproduction with deeper extension down to 40Hz. The Plus One™ design increases effective cone area beyond a standard 6x8" driver for more bass output and musical body. Sensitivity reaches 93dB at 2.83V for exceptional output efficiency. The integrated high-resolution aluminum dome tweeter extends all the way to 40kHz, resolving ultra-fine detail in hi-res audio files that standard textile dome tweeters simply can't reproduce. The UniPivot tweeter mount lets you aim the tweeter's dispersion axis toward the listening position even after installation — a rare feature in a coaxial design. A push-button 0dB / -3dB tweeter level control lets you tune the high-frequency balance to your vehicle's acoustics with a single click. Frequency response spans 40Hz to 40kHz for extraordinary full-range coverage. Installation hardware and spacers are included for a clean, complete install.

Pair with a 4-channel amplifier rated 60–120W RMS per channel, stable at 2–4 ohms. The 3.0-ohm impedance draws slightly more current than a 4-ohm speaker, so choose an amp with adequate headroom. Mount in the factory 6x8" location using the included hardware and spacers. Use the UniPivot mount to aim the tweeter toward the driver or passenger seat for the best soundstage. Ideal for hi-res audio listeners and enthusiasts who want Stadium Series performance in a plug-and-play coaxial format.

Why Choose the JBL Stadium 862F?

• Plus One™ Glass-Fiber Cone: Rigid glass-fiber construction delivers tighter bass and more accurate midrange than polypropylene — deeper extension down to 40Hz in a 6x8" coaxial.
• Aluminum Dome Tweeter to 40kHz: Resolves ultra-fine detail from hi-res audio sources — airy, extended highs that standard tweeters can't match.
• UniPivot Tweeter Mount: Aim the tweeter toward the listening position for focused soundstage imaging — a rare feature in a coaxial speaker.
• Push-Button Tweeter Level (0dB / -3dB): One-click high-frequency tuning — no tools, no crossover box required.
• 93dB Sensitivity: Exceptional efficiency — more output per watt, more dynamic headroom from your amplifier.
• 100W RMS / 300W Peak Power Handling: Built for high-powered amplifier setups without distortion or thermal compression.
• 40Hz – 40kHz Frequency Response: Extraordinary bandwidth — from deep bass extension to ultra-high-frequency detail well beyond standard speaker range.
• Hardware & Spacers Included: Everything needed for a clean, professional install right out of the box.

Amplifier & Installation Recommendations

Pair the Stadium 862F with a 4-channel amplifier rated 60–120W RMS per channel, stable at 2–4 ohms. The 3.0-ohm impedance draws more current than a 4-ohm speaker — choose an amp with headroom. Mount in the factory 6x8" location using the included hardware and spacers. Use the UniPivot mount to aim the tweeter toward the driver or passenger seat for the best soundstage imaging. Use 14-gauge or heavier speaker wire for runs over 6 feet. A DSP processor with time alignment will further enhance the imaging and staging these speakers are capable of.

Full Specifications

Frequently Asked Questions

Q: What makes the Stadium 862F different from a standard coaxial speaker?
A: The 862F brings Stadium Series flagship features to a coaxial format — glass-fiber Plus One™ cone, aluminum dome tweeter extending to 40kHz, UniPivot adjustable tweeter mount, and push-button level control. Most coaxials at this price point offer none of these. It's a component-level experience in a drop-in coaxial package.

Q: What amplifier should I pair with the Stadium 862F?
A: A 4-channel amp rated 60–120W RMS per channel, stable at 2–4 ohms, is ideal. The 3.0-ohm impedance draws more current than a 4-ohm speaker — choose an amp with headroom. A DSP processor will further enhance imaging and staging.

Q: Can I run the Stadium 862F off my factory head unit?
A: You can, and the 93dB sensitivity will give you solid output. However, to fully unlock the 100W RMS capability and the dynamic range these speakers are capable of, an external amplifier is strongly recommended.

Q: Will the Stadium 862F fit my vehicle?
A: The 862F is designed for standard 6x8" OEM locations. Contact us at Trinity Car Audio with your vehicle's year, make, and model to confirm fitment and spacer requirements.
