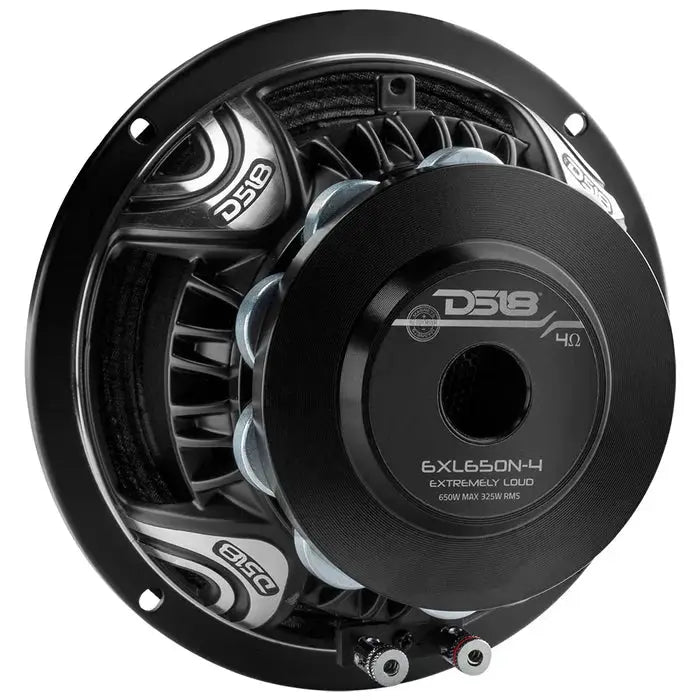

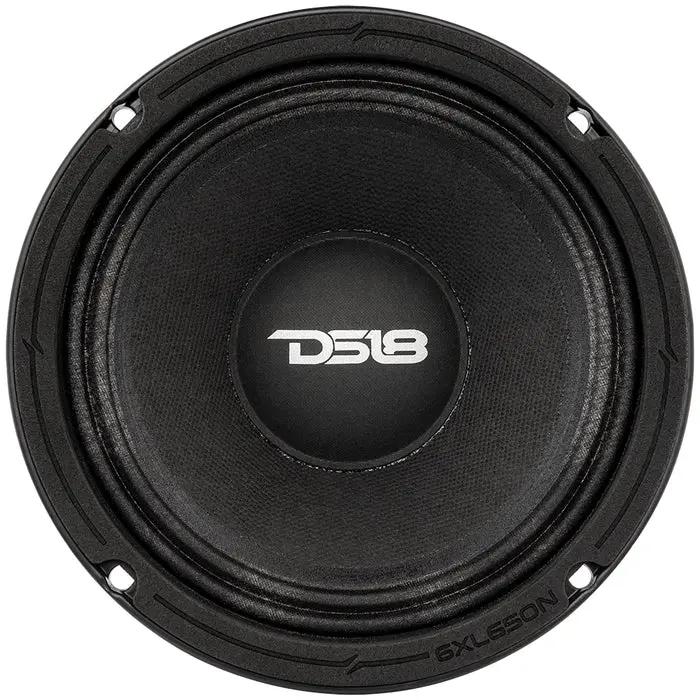

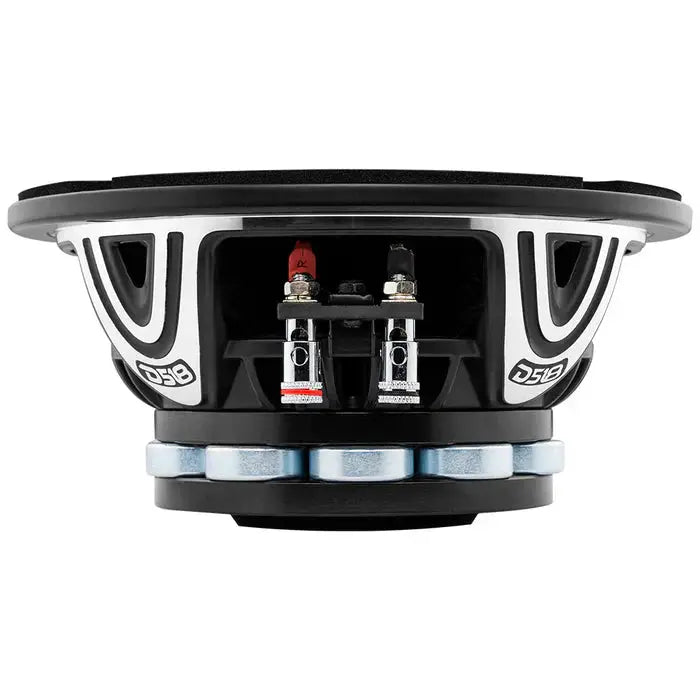

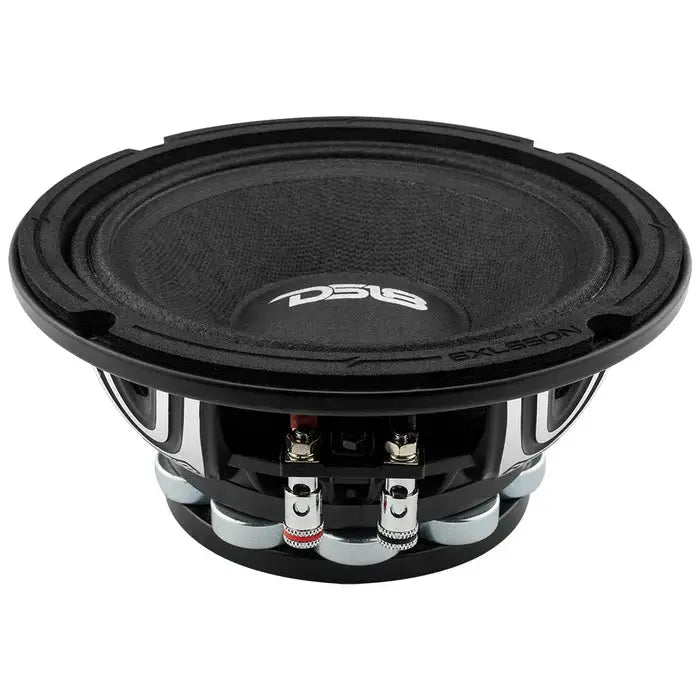

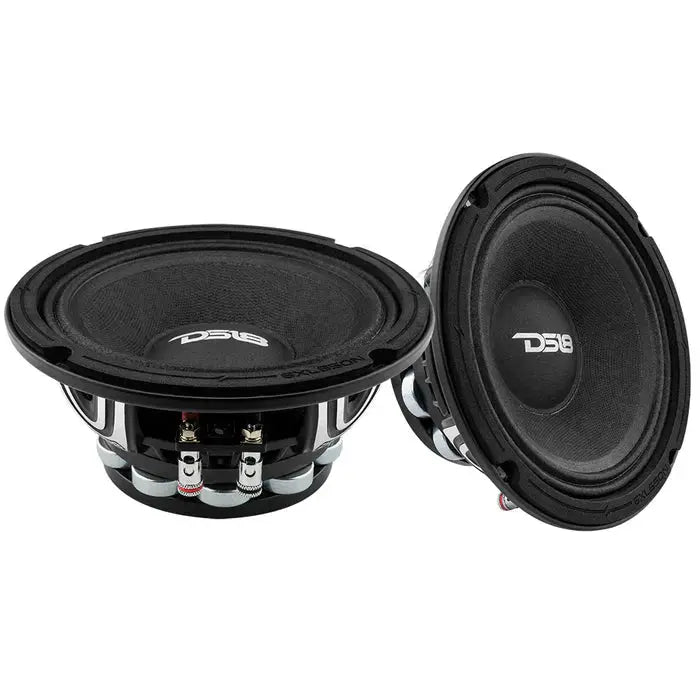

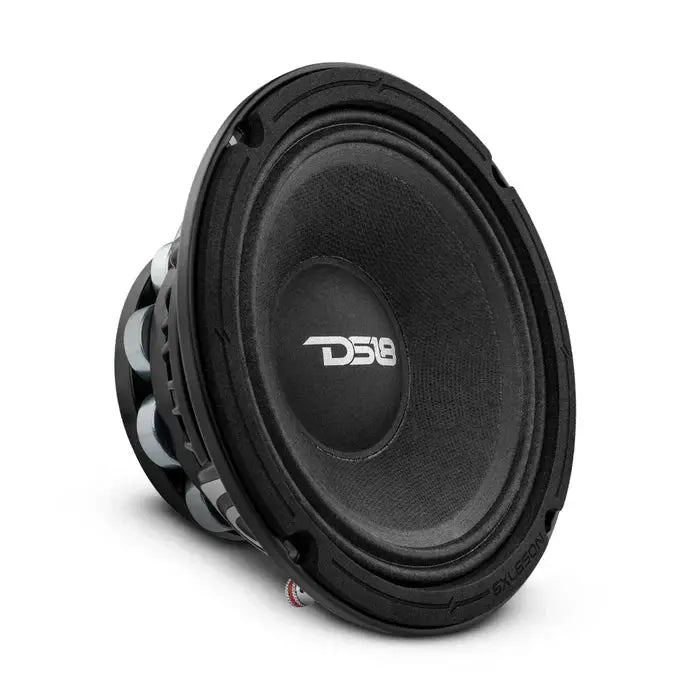

DS18 6XL650N-4 Pro 6" Midrange 325w 4 ohm (each)

The DS18 6XL650N-4 Pro is a 6.5" midrange loudspeaker with 325W RMS (650W peak) handling, built for high-demand car audio systems where midrange clarity and dynamic control matter. Neodymium rings and a rigid aluminum basket combine to deliver precise transient response in a compact package.

• Nominal Diameter: 6.5" / 165mm — fits common door and kick-panel mounting cutouts, enabling straightforward installation in many vehicles.
• Nominal Impedance: 4 Ohms — a standard load for many high-power amplifiers, balancing current draw with performance.
• RMS Power Handling: 325 Watts — continuous power capability supports sustained midrange clarity without excessive distortion when driven by a suitable amplifier.
• MAX Power Handling: 650 Watts — headroom for brief peak dynamics, allowing dynamic transients to come through without clipping.
• Sensitivity: 98.5 dB (1W/1m) — higher sensitivity means more output with less input power, aiding efficient system design.
• Frequency Response: 60Hz - 12.5kHz — broad midrange to upper frequencies, enabling detailed vocal and instrument reproduction.
• Recommended Hi Pass Crossover: 100 Hz — low-cut helps protect the voice coil and improves integration with subs and other drivers.
• Magnet Material: Neodymium — compact, high-strength magnet for precise control and reduced magnetic footprint.
• Voice Coil: 2" / 50.8 mm Kapton former, CCAW winding — robust thermal stability under high-power conditions.
• Basket: Aluminum, satin black — rigid frame that minimizes flex and contributes to cleaner transient response.
• Weight (Magnet): 11.4 oz — magnet mass contributing to magnetic efficiency in a compact package.
• Displacement: 0.34 L / 0.012 ft3 — internal volume affecting bass/midrange extension and enclosure tuning.
• Thiele & Small Parameters: Vas 5.86 L; Xmax 3.7 mm; Fs 100 Hz; Qms 4.385; Qes 0.256; Qts 0.242; Mms 11.278 — parameters used for enclosure design and system tuning.

In a complete car audio install, the 6XL650N-4 Pro excels as a high-power midrange or center-channel element in a multi- speaker setup, delivering articulate vocal presence, detailed instrumentation, and controlled dynamics. Its Neodymium magnet, vented aluminum basket, and polished terminals help maintain signal integrity and reliable connections through extended listening sessions, while the 100 Hz crossover recommendation ensures clean integration with subwoofers and treble drivers. The result is a precise, energetic midrange that complements a high-performance system without sacrificing clarity.
