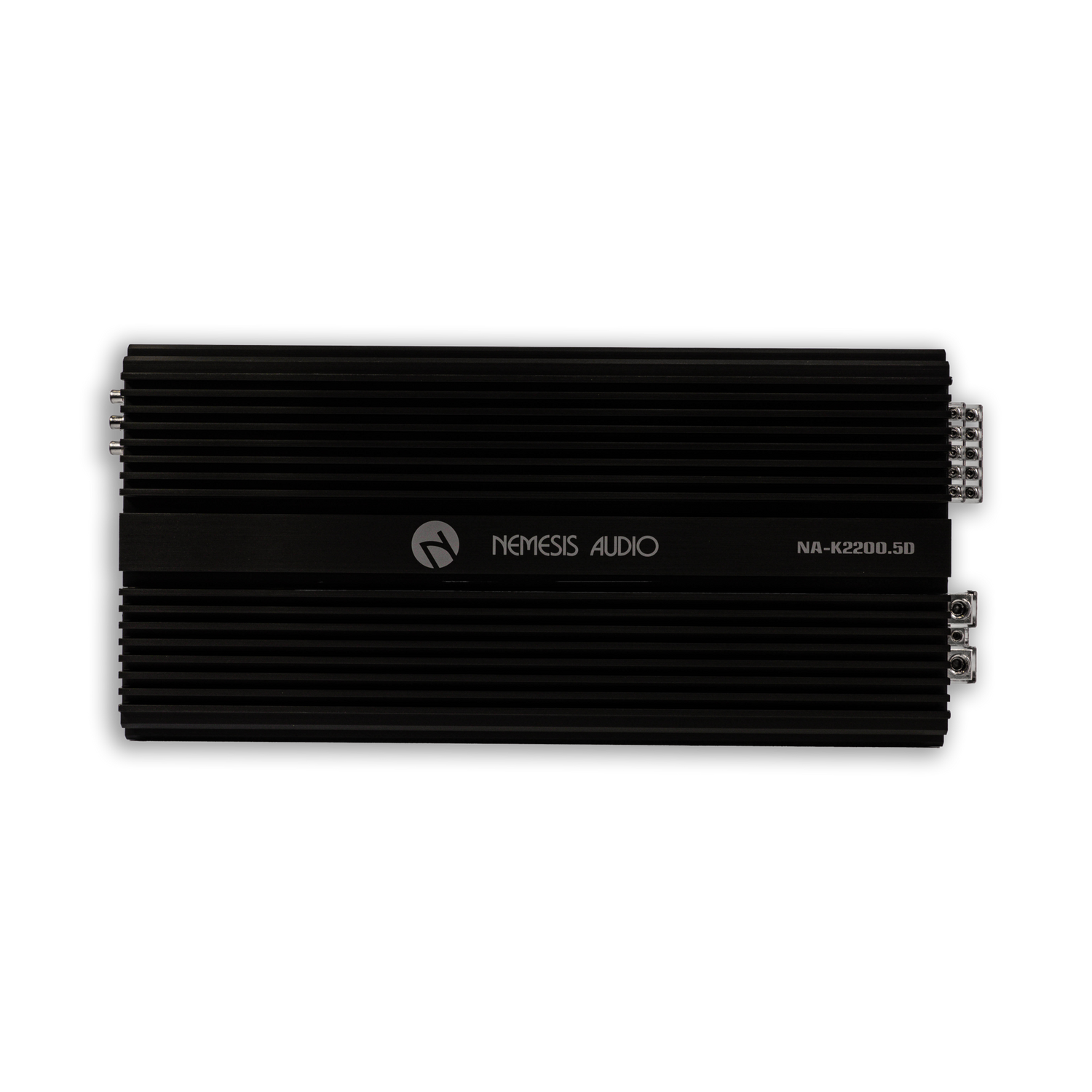

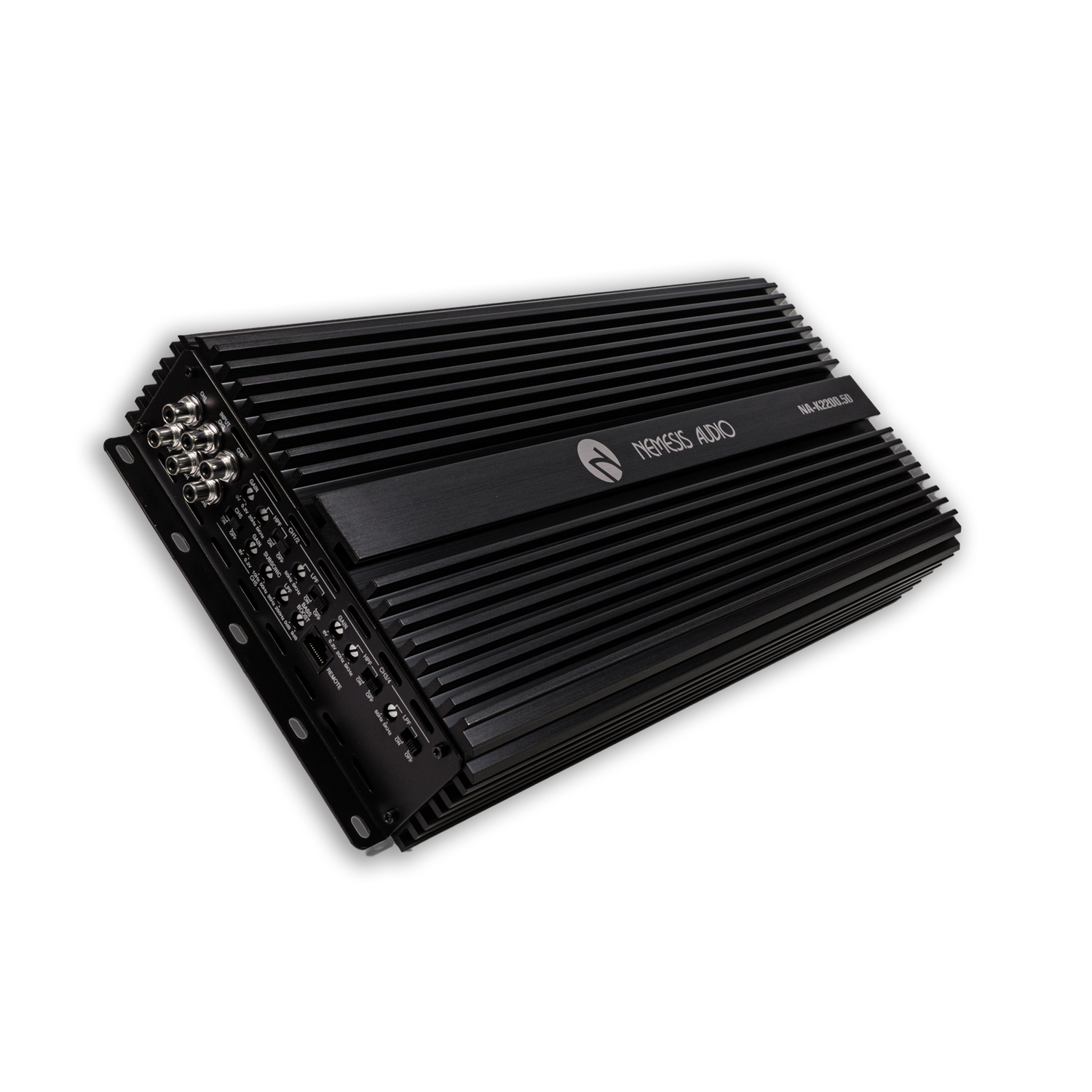

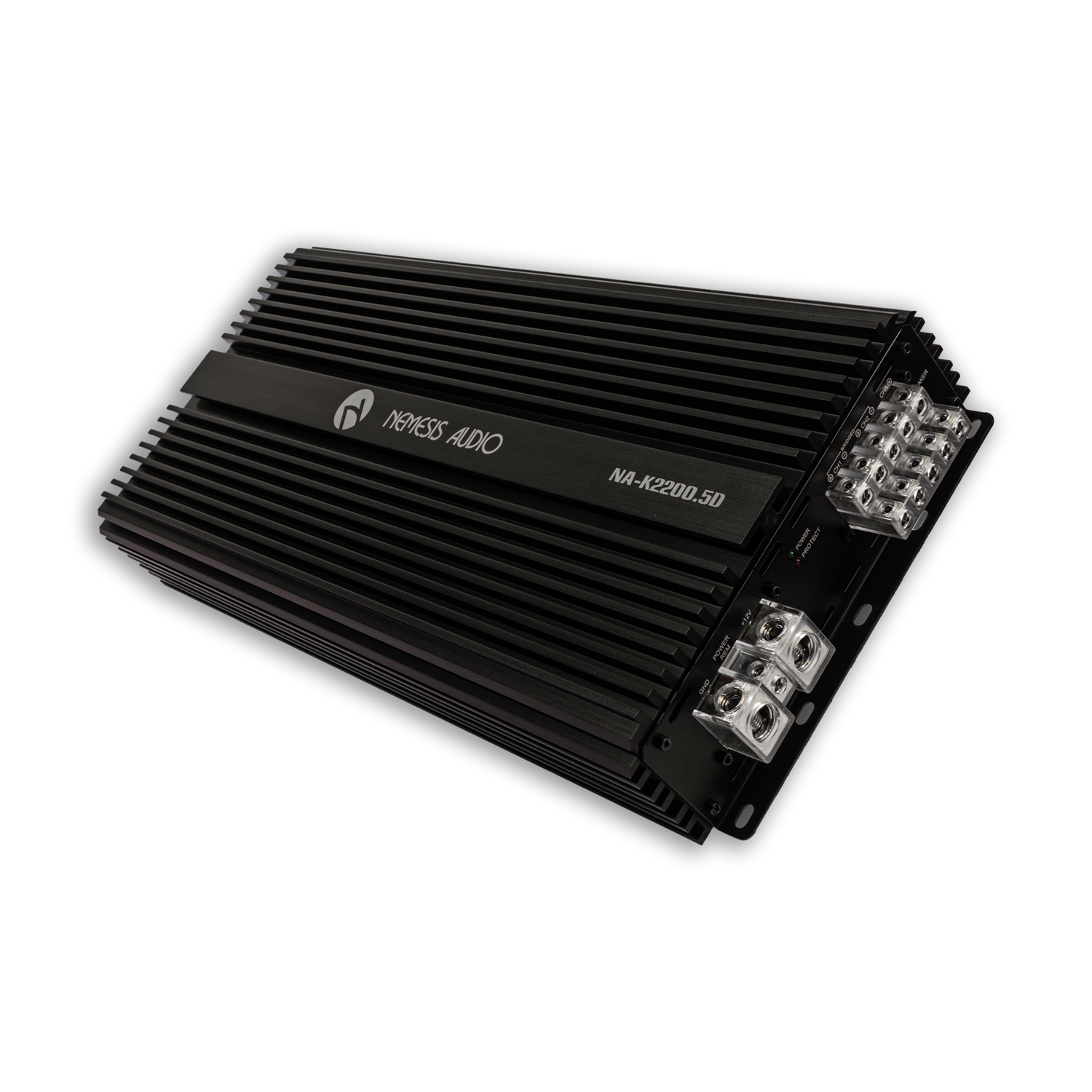

Nemesis Audio NA-K2200.5D 2200W 5-Channel Class D Monoblock Car Amplifier Made In Korea Team Series

Made in Korea
2200W 5CH
4-Ohm RMS Power: 125Wx4 + 600Wx1
2-Ohm RMS Power: 190Wx4 + 1100Wx1
1-Ohm RMS Power: 1,500Wx1
4-Ohm RMS Bridged Power: 380Wx2 + 600Wx1
Frequency Response: 10Hz-30KHz for CH1-4; 10Hz-250Hz for CH5
Signal to Noise Ratio: 95dB <
Damping Factor: 200dB <
Efficiency (4-Ohm, 100Hz) : 75% for CH1-4; 90% for CH5
Input Sensitivity: 6V-0.2V
Subsonic Filter: 10Hz-50Hz @ 24dB/Oct
Bass Boost: 0-9dB @ 45Hz
Low Pass Filter: 50Hz-5KHz for CH1-4
35Hz-250Hz for 5CH
High Pass Filter: 20Hz-5KHz
Audiophile Grade Tiffany RCA Input & Output
0 Gauge Power & Ground Input
Working Voltage: 10V-16V
Tested Voltage & THD: 14.4V & Less than 1%
Remote Gain Control with Clipping Indicator
4 Way Protection Circuits (Thermal, High & Low Voltage, Short & DC)
Dimensions (LxWxH): 450x220x68mm
