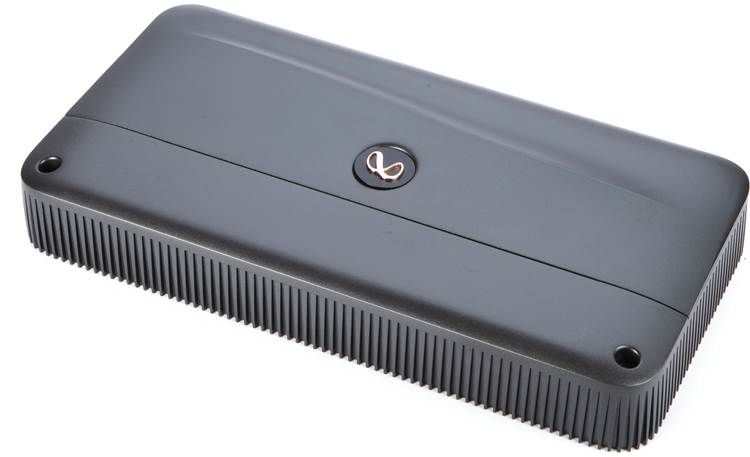

Infinity Reference 7005A 5-Channel Amplifier
Infinity Reference 7005A 5-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Infinity Reference 7005A 5-Channel Amplifier
Highlight title
Text to highlight a key feature of your product
Description
Description
Streamlined for power
Looking for power for your entire system? Infinity's sleek Reference 7005A five-channel amplifier will add firepower and excitement to your music without losing its cool. This power plant will pump out 50 watts RMS to each of your front and rear speakers, plus up to 500 watts RMS to a sub. For a high-performance system, you can bridge the amp to 3-channel mode to power front speakers with 150 watts RMS each, while still driving the sub with 500 watts. The sub channel's Class D design ensures that its high output will put minimal strain your vehicle's electrical system.
Works in almost any vehicle
Speaker-level inputs and signal-sensing turn-on allow this amplifier to work in almost any system, even if you're keeping your car's factory radio. Wiring adapters are included with the amp for just that application. Separate high- and low-pass filters on the front and rear channels maximize your speaker system's performance. The subwoofer channel features a low-pass filter, bass boost, and phase switch, so you can make the bass sound great in your vehicle. A wired remote lets you control the bass from your front seat.

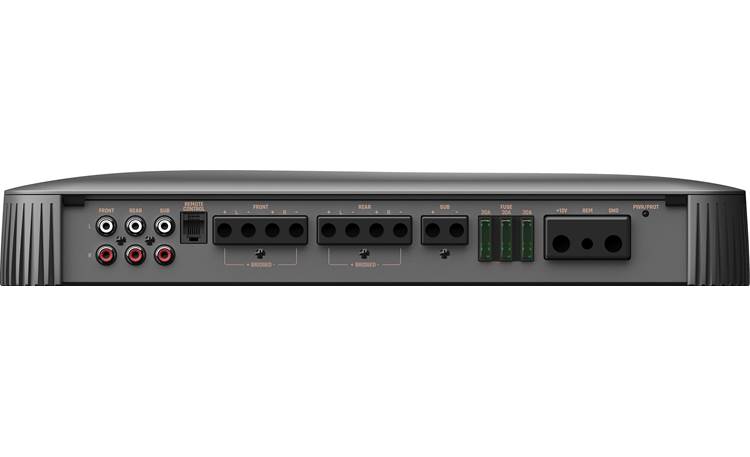

Infinity Reference 7005A connection panel
Product highlights:
- Featured in our article: Best multi-channel car amplifiers for 2024
- 5-channel car amplifier
- 50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohms
- 75 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
- 150 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms
- front and rear channels:
- Class AB amp technology
- variable high- and low-pass filters (32-320 Hz, 12 dB/octave)
- subwoofer channel:
- Class D amp technology
- low-pass filter (32-320 Hz, 12 dB/octave)
- bass boost (0-12 dB at 45 Hz)
- phase switch (0, 180 degrees)

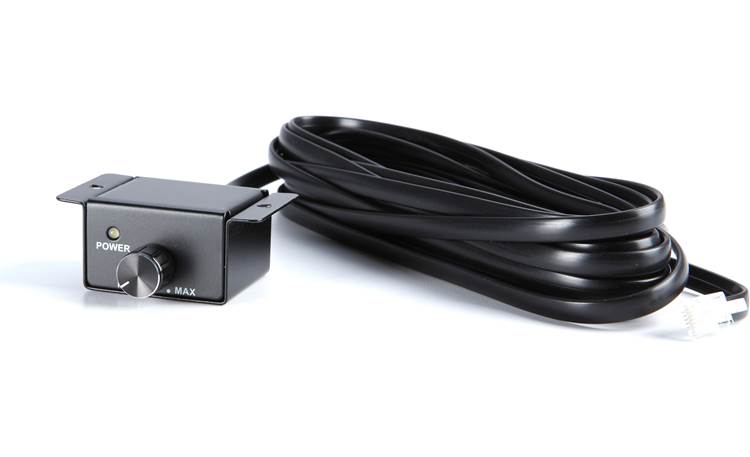

- wired remote bass control module included
More Info:
- preamp and speaker-level inputs
- bare wire to RCA adapters included for high-level input
- wiring and hardware not included with amplifier
- 4-gauge power and ground leads recommended
- fuse rating: 30A x 3
- dimensions: 14-3/16"W x 2-3/16"H x 7-1/8"D
- warranty: 1 year
What's in the box:
Infinity Reference 7005A owner's manual
- 5-Channel amplifier
- Six 30A fuses (3 installed/3 spares)
- 4 Speaker wire to RCA adapters
- RBC Remote level control w/ attached 16.5' cable (RJ-25 terminated)
- Four 2-1/8" screws
- Two 3/8" screws
- Logo badge w/ adhesive backing
- Owner's manual (Eng/Span/Fren/Others)
