DS18

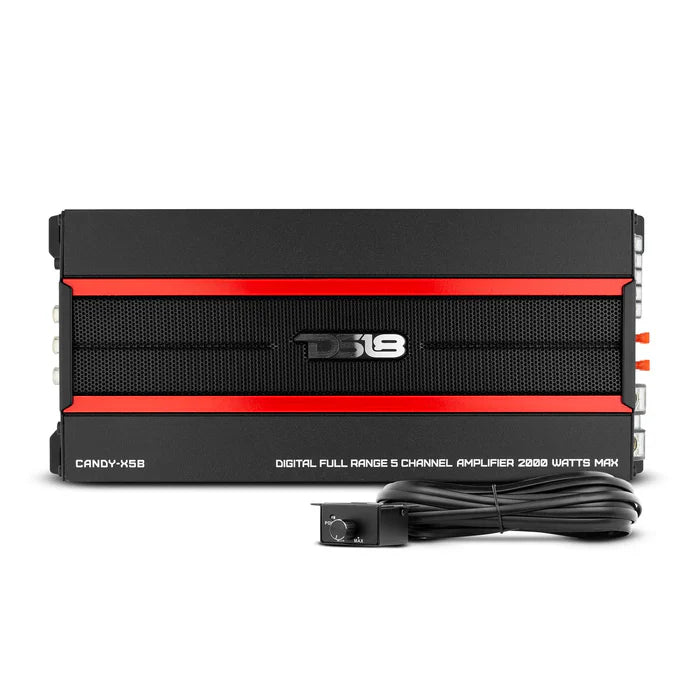

DS18 CANDY-X5B Full Range 5-Channel Class D Car Amplifier 2000 Watts

Sale price $299.99 Regular price $319.99
Shipping calculated at checkout.

Highlight title

Text to highlight a key feature of your product

Description

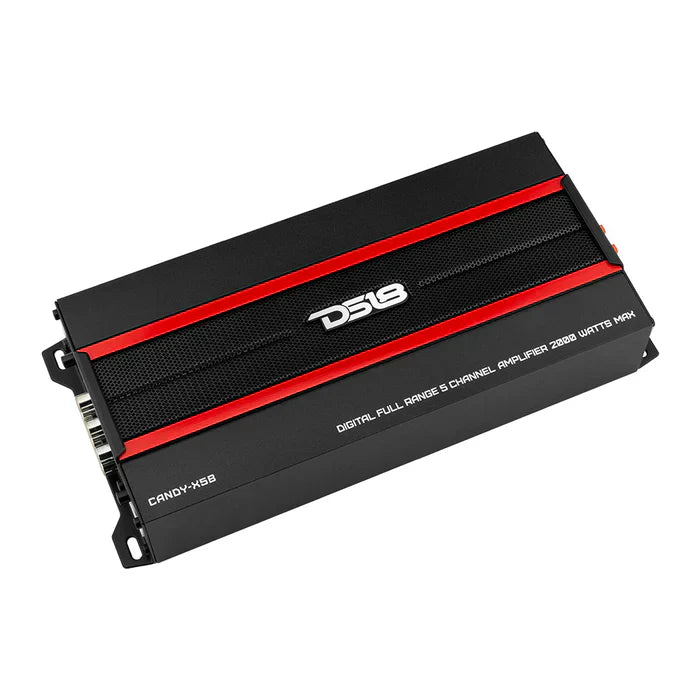

DS18 CANDY-X5B


Compact Full-Range Class D 5-Channel Car Amplifier 2000 Watts

Are you ready for a symphony of sound that's as sweet as it is powerful? DS18's CANDY-X5B is more than an amplifier; it's a treat for your ears, designed to leave you craving more.
What's truly enchanting about the CANDY-X5B is its compact design. It defies the constraints of space, allowing you to mount it virtually anywhere in your vehicle without sacrificing on space or your system’s performance.
These compact amplifiers are available in various configurations, from 2-channel stereo to 6-channel setups, ensuring that your audio system setup is not just easy but an exhilarating experience. Packing a staggering 2000W of MAX Power: this powerhouse amplifier delivers 4 x 120W + 1 x 320W at 2 Ohms, 4 x 80W + 1 x 200W at 4 Ohms, and a formidable 2 x 240W when bridged at 4 Ohms, all operating at 14.4 volts. The CANDY-X5B transforms your interior into an acoustic paradise.

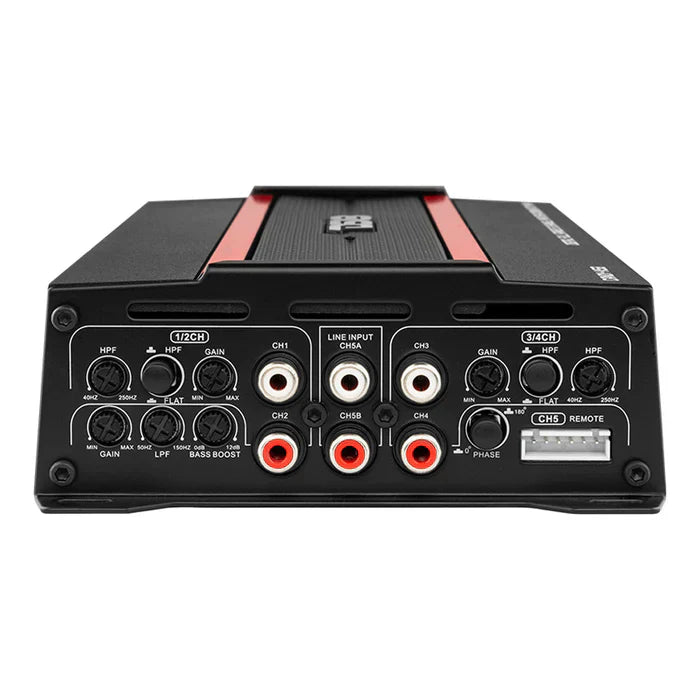

With high-grade components designed to withstand the test of time, the CANDY-X5B delivers crystal clear sound whenever you want, making every session an auditory adventure. Its frequency response of 20Hz - 20KHz ensures that every note shines, while the low pass filter allows you to sculpt your sound with finesse. The bass boost function elevates your low-end experience from 0dB to a mouthwatering +12dB. The CANDY-X5B also comes with RCA and Hi/Lo inputs for easy integration into any factory audio system.
Elevate your audio journey with sweet power from the CANDY-X5B and treat your ears to the audio they deserve!

SPECS

SKU
CANDY-X5B
Total Watts (Peak)
2000W
RMS Power @ 4 Ohm
80W x 4 + 220W (Sub)
RMS Power @ 2 Ohm
125W x 4 + 360W (Sub)
RMS Power @ 1 Ohm
500W (Sub)
RMS Power @ 4 Ohm Bridge
250W x 2


AUDIO

Frequency Response
20Hz-20Khz
Signal to Noise Ratio
>80 dB
Efficiency @ 4ohm
N/A
Damping Factor
N/A
Input Impedance
10K ohm
Channel Separation
50 dB
Total Harmonic Distortion (THD)
0.07%
Low Level Input Range
0.2-6V
High Level Input
No
Selectable X-Over
HPF/FLAT (Fixed LPF Sub)
X-Over Filter Range
40-250Hz (50-150Hz Sub)
Bass Boost Range
0dB~12dB (Sub)
Bass Boost Frequency
Fixed 40Hz
Infrasonic Filter
No
Phase Selector
0 - 180? (Sub)


FEATURES

Amplifier Class
Digital
Amplifier Type
Stereo Full Range + Subwoofer
Number of Channels
5
Minimum Impedance
2 ohm / 1 ohm (Sub)
Led Indicator
Power / Protection

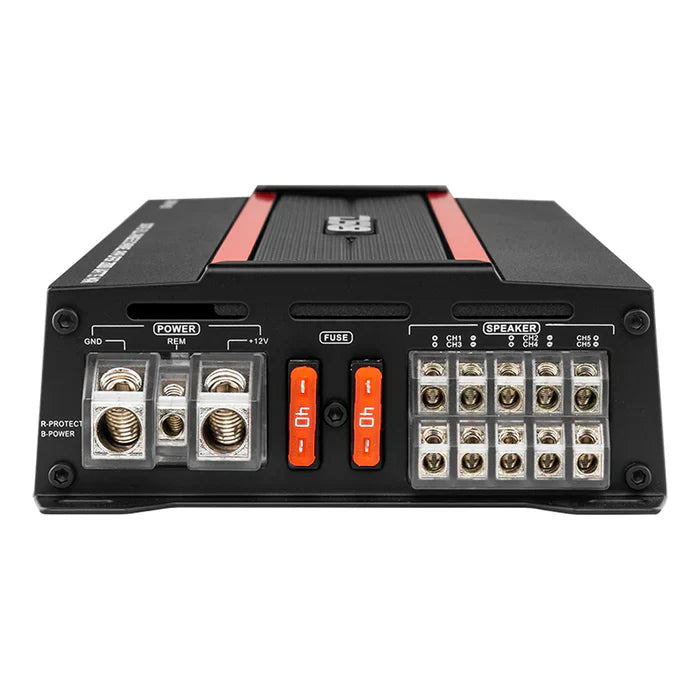

Power Input Terminal Size
4Ga
Fuse Size
40A x 2

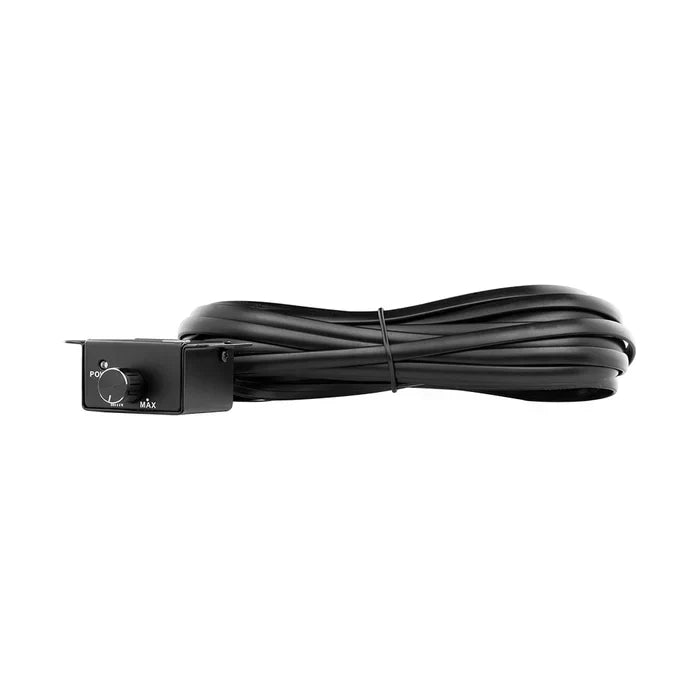

Remote Level Control
Yes / Remote Dash Mount
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes (>180?F)
Over-Load Protection
Yes
DC Output Protection
No
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (9-16v)
Clipping Protection
No
Body Color / Finish
Black Matte


MEASUREMENT

Overall Length
11" / 280mm
Overall Width
5" / 127mm
Overall Height
1.87" / 47.5mm
Heatsink Length
9.96" / 253mm
Gross Single Unit Weight
5.5
