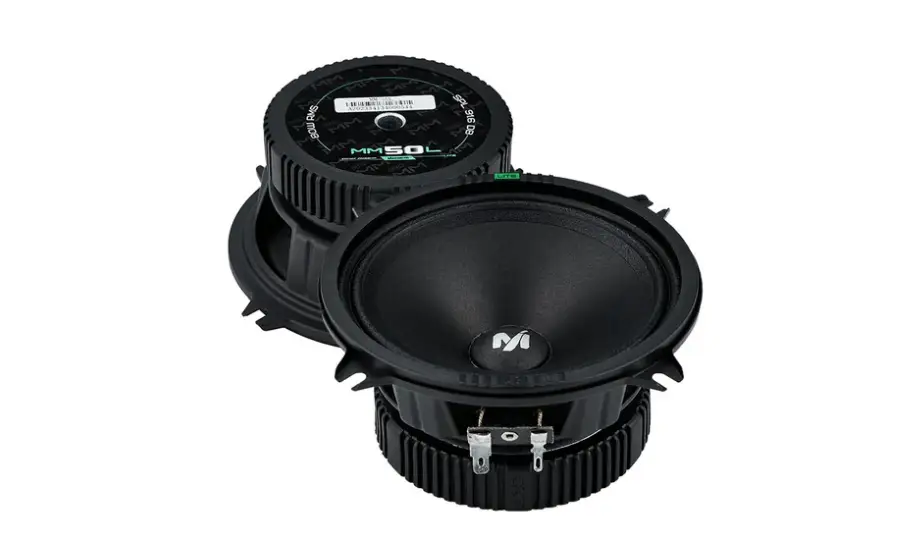

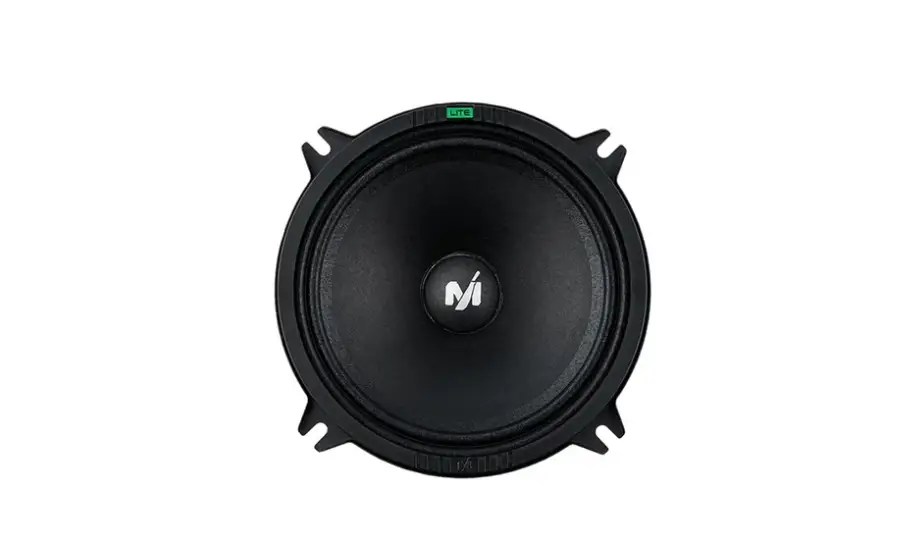

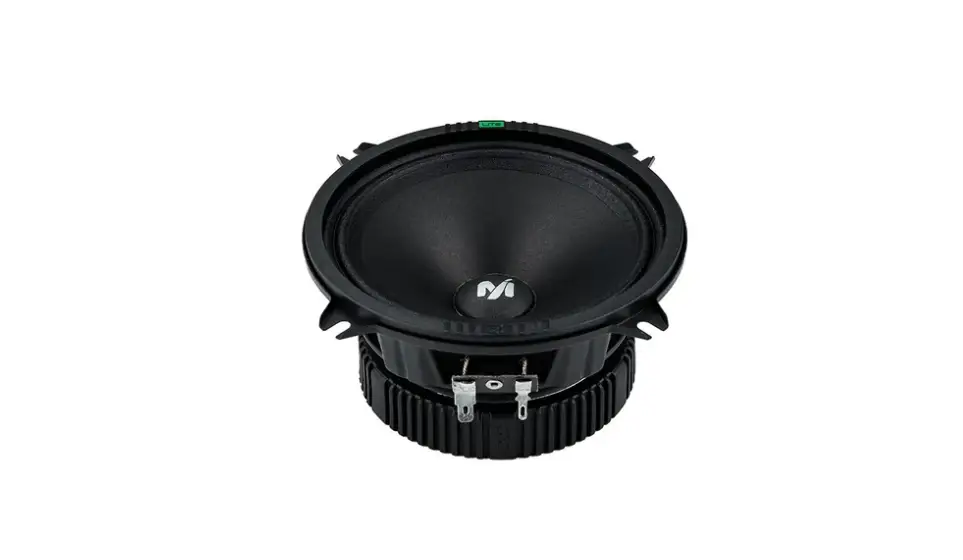

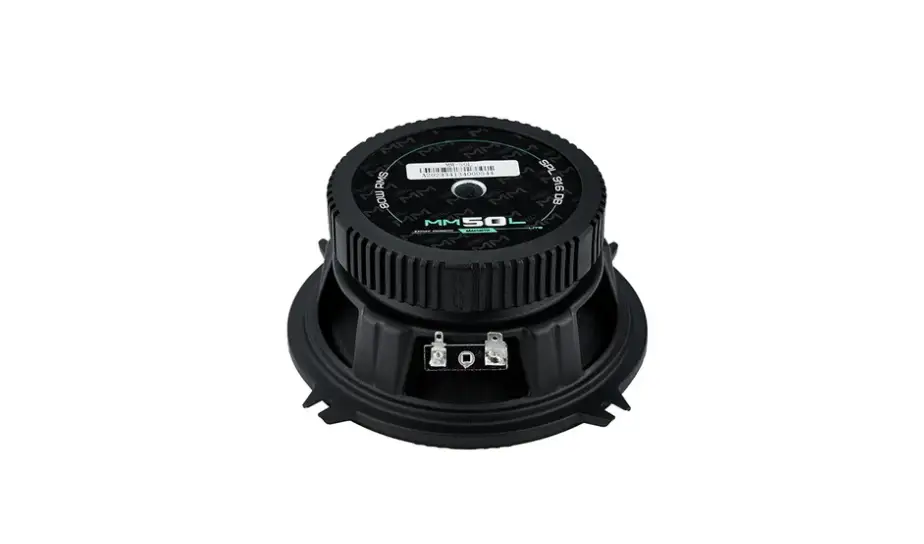

Deaf Bonce Machete MM-50L | 5.2" Mid-Range Speakers (Pair)

The Deaf Bonce Machete MM-50L are 5.2-inch midrange drivers designed to reproduce 120–16000 Hz with 4 Ω impedance for precise vocal and midrange detail in a car audio installation. This pair-based design targets clean dialogue, instrument timbre, and seamless blending with tweeters and woofers in a high-performance front stage.

• Size: 5.2" diameter; defines the mounting footprint and enclosure design considerations for midrange placement.
• Type: Midrange; concentrates midband reproduction between roughly 120 Hz and 16 kHz for clear vocals and instrument detail.
• Frequency response: 120–16000 Hz; covers the essential vocal range and upper harmonic content for a natural, present midrange.
• Package quantity: Pair; ships as a matched two-driver set for stereo front-stage installation.
• Voice coil size: 1.00 inch; larger coils can improve heat handling and linearity under midrange excitation.
• Cone: Paper; lightweight construction that supports fast transient response and detailed midrange delivery.
• Magnet: Ferrite; provides a compact, durable magnetic system common in midrange designs.
• Voice coil wire: CCAW; copper-clad aluminum wire reduces moving mass while maintaining current handling.
• Surround: Cloth; durable, helps control excursion and long-term reliability.
• RMS Power: 98 W; continuous power handling indicates how much average power the driver can sustain without distortion.
• MAX Power: 160 W; peak power capability for brief transients and dynamic content.
• Frame: Steel; rigid frame supports mounting stability and reduces resonance.
• Impedance: 4 Ohm; typical for integration with a wide range of car audio amps and crossover designs.
• SPL: 91.60 dB; sensitivity rating relates to output per watt at 1 m, informing how loud the driver will get with a given amp.
• Fs: 116.00 Hz; resonant frequency that influences how the midrange blends with bass drivers and the overall enclosure design.
• Qts: 0.71; electrical Q affecting how the driver behaves in a given enclosure and crossover setup.
• BL: 4.39; motor strength indicating drive force and control under signal, affecting transient response.
• Vas: 3.45 L; enclosure volume guidance helps shape the optimal cabin or door panel enclosure for coherent midrange performance.

In a car audio build, MM-50L serves as the midrange engine of a multi-driver front stage, delivering vocal clarity and midband detail that supplements tweeters and woofers. With 98 W RMS and 4 Ω impedance, pairing these drivers with a suitable amplifier yields controlled, musical output without excessive current draw. The 5.2" footprint and sturdy steel frame offer mounting flexibility in door panels or dash locations, while the paper cone and cloth surround provide a balanced transient response and durable long-term reliability. Electrical parameters (Fs, Qts, BL, Vas) guide crossover design and enclosure choices to minimize artifacts and achieve a smooth, coherent midrange blend across the system.
