BOX SPECS
CUBIC FT 2.5-3.5 CUBIC FT PER SUBWOOFER TUNING 28-33HERTZ PORT AREA
12-16 SQ INCHES OF PORT AREA PER CUBIC FT
MOUNTING DEPTH 11.25 INCHES CUTOUT 14.2363 INCHES
DISPLACEMENT 0.28 CUBIC FT -
Trim Ring Removal Instructions
The Resilient Sounds V2 trim ring is a decorative and functional piece used to enhance aesthetics and secure the surround. Please note it is not meant to be removed unless doing a recone and doing so may void your manufacturer warranty. However, should you choose to remove it here is the process and tools you will need.
-Phillips Screwdriver
-Pliers
-Heat Gun
-Pry Tool
-Personal Protective Equipment (PPE)
1. You will need a phillips screwdriver to remove the 4 screws securing the trim ring to the frame. There may be residual adhesive on the screws preventing them from coming all the way out and you may need pliers once unscrewed to free the screws.
2. There may be excess adhesive protruding from the surround that may have adhered to your trim ring. So next you will utilize a heat gun going around the trim ring with a pry tool slightly breaking the adhesive free. The Frame and Trim Ring will be hot! USE CAUTION! Be sure to use a tool that won't damage your trim ring or frame and do not pry too much at once as you may break the ring.
3. By this point your ring should be free from the frame. Handle it with care as it may still be hot. When reinstalling the ring ONLY hand tighten the screws.
If you have any questions regarding the process send an email to:
Info@resilientsounds.com

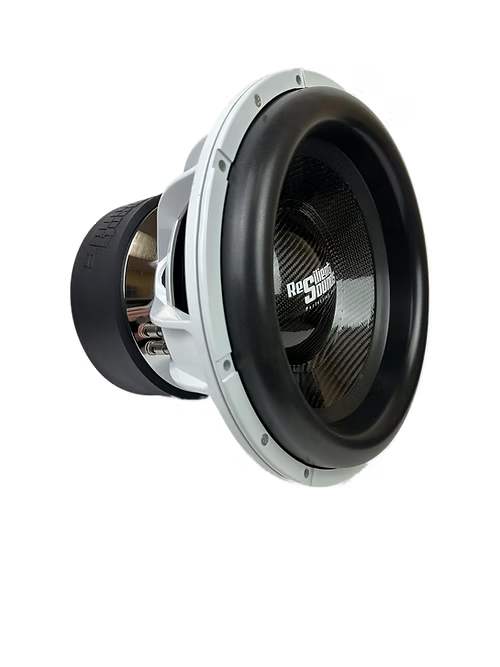

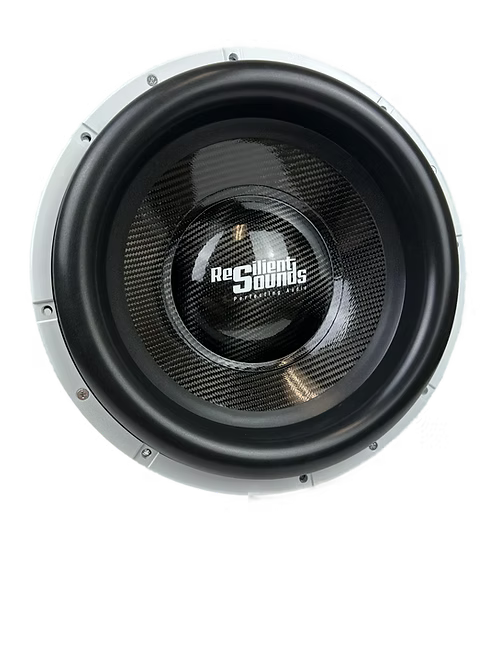

Resilient Sounds Platinum V2 Series 15" Subwoofer
Resilient Sounds Platinum V2 Series 15" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Highlight title
Text to highlight a key feature of your product
Description
Description
• 13% larger motor
• 20% longer 3” 8 layer coil
• BL^2/RE increased by as much as 50% (plat 12V1 vs Plat 12V2)
• 10” spider pack with insulated dual leads.
• Carbon fiber cones and dust caps will come standard with the platinum line.
• New high roll tooled surrounds.
• Cast aluminum frame
• conservative rated at 2,500RMS/5,000Watts
• XMAX 35MM
•For mounting Resilient Sounds V2 models with trim rings, we recommend a hex head screw(Last picture) that avoids flaring to prevent cracking the trim ring.
