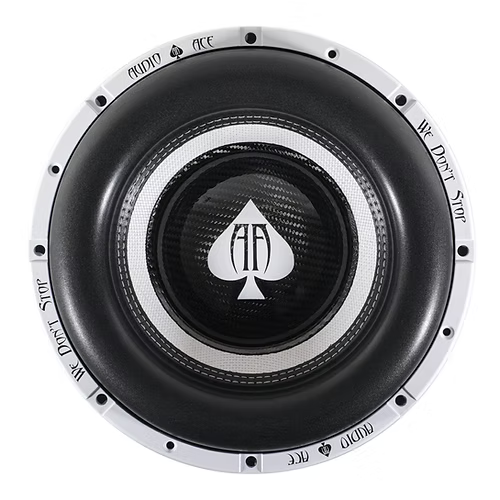

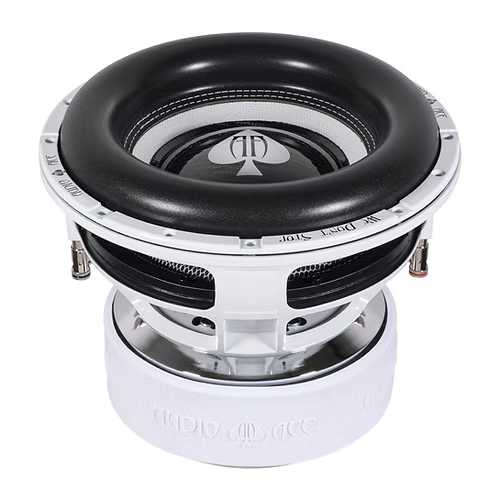

Audio Ace Jester Series 12" Subwoofer Dual 2 Ohm

Built with the Goal of achieving a high level of SQ/SPL. The JESTER is conservatively rated at 3,000RMS. Designed with a low FS and a strong motor structure allows the Jester to be versatile enough to sound great across a wide range of music. Whether you are looking to be one of the loudest vehicles in your town, or just wanting to enjoy the bass in your daily driver at EXTREME sound levels, the Jester is a Perfect Choice!

12" High Performance Subwoofer

Dual 2 ohm coil

Heavy Duty Die Cast Aluminum Basket

3" BACCAW 4 Layer Voice Coil

300 Oz Magnet Structure

4 Layer 10" Spider

47.6Lbs Total

Electrical Parameters

Re 3.60

Le 3.009

L2 7.645

R2 19.44

Cmes 523.52

Lces 38.54

Res 41.07

Fs 35.4

Mms 454.545

Mmd 443.672

Rms 21.141

Cms .044

Kms 22.53

Bl 29.466

Qtp .470

Loss Factors

Qms 4.787

Qes .420

Qts .386

Qtp .400

Misc Parameters

Vas 12.8560

n0 .131

Lm 83.37

Lnom 83.83

Sd 452.39

Mounting Depth 8.5 inches

Cutout Diameter 11.25 inches

Box Recommendation

2-2.6 Cubic foot ported

14-16 squared inches of port per cubic foot

28-34hz tuning

Optimal in ported 4th and 6th order enclosures

Not recommended for sealed application
