Rockford Fosgate

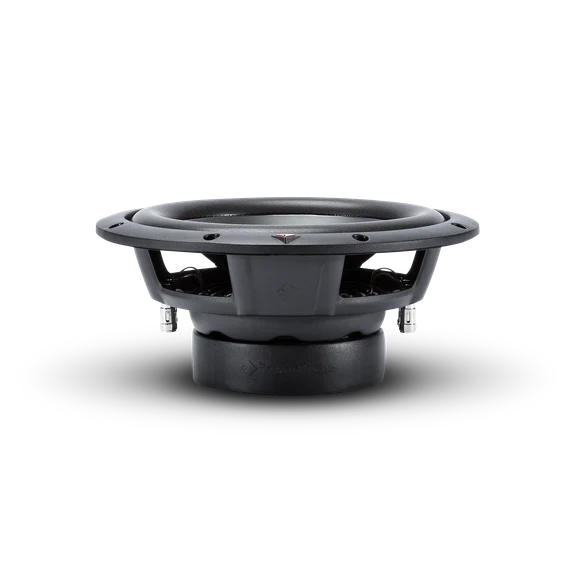

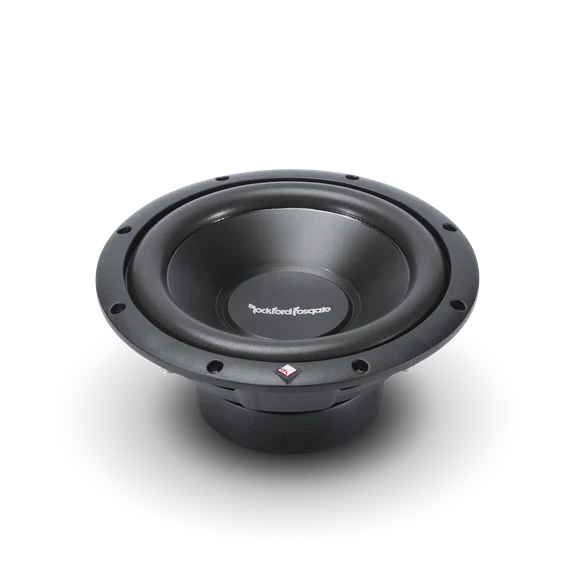

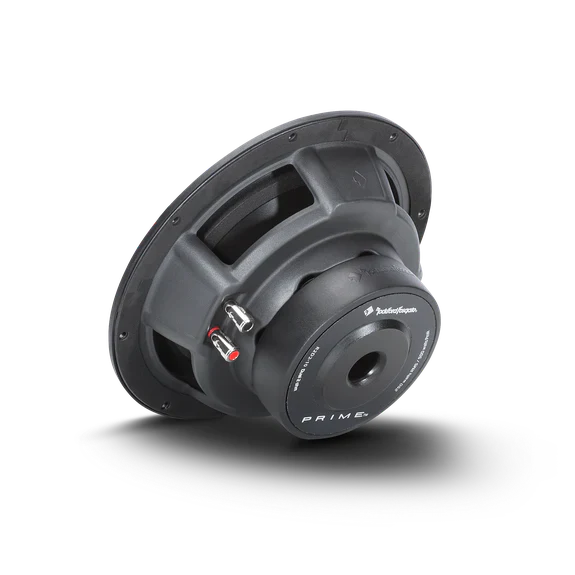

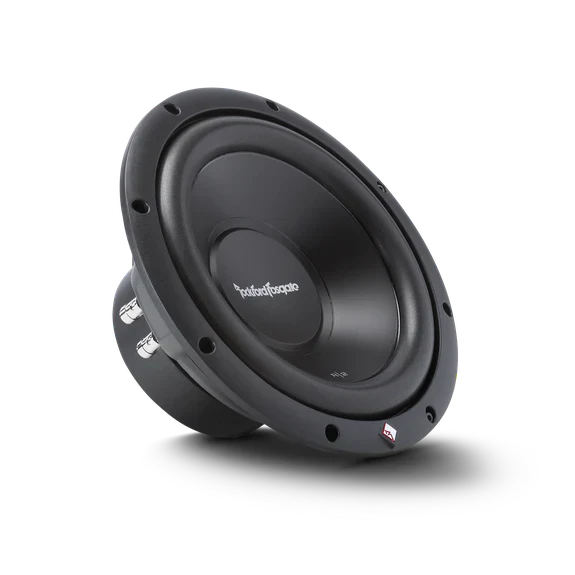

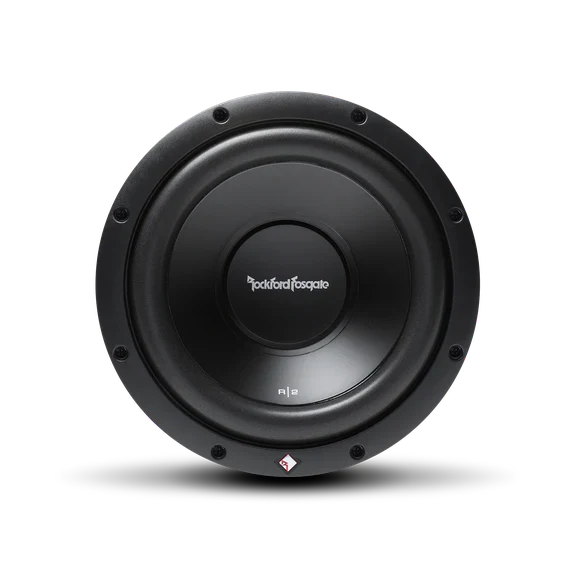

Rockford Fosgate Prime R2 Series 10" Subwoofer

Regular price $109.99
Shipping calculated at checkout.

Coil Configuration

Highlight title

Text to highlight a key feature of your product

Description

Car Audio Fanatics who want Rockford Fosgate quality can rely on the Prime Series 10" subwoofers to get the job done, and the Dual Voice Coil provides awesome installation flexibility. These drivers can pump out the bass due to their mica injected polypropylene cone, and their stamp-cast baskets with spider venting - typically reserved for more expensive models - keep the motor running cool! These R2 subwoofers are optimized for sealed and vented enclosures.



FEATURES AT A GLANCE

  • Linear spider with embedded 16 AWG tinsel leads
  • 12 AWG compression terminals
  • Mica injected polypropylene cone
  • Anodized aluminum voice coil former
  • Optimized for both sealed and vented enclosures
  • StampCast basket with integrated spider venting
  • 1 Year Warranty
  • Integrated PVC trim ring
CEA-2031 Compliant
CEA-2031 Guidelines
Size
10"
Subwoofer Type
Standard
Voice Coil Type
Dual Voice Coil
Nominal Impedance
Dual 2-Ohm
Speaker Connector
Dual 12 AWG compression
Voice Coil Diameter
2" (51 mm)
Le (mH)
3.9
Fs (Hz)
34.6
Re (Ohms)
3.84
Sd (cm2)
339.8
Qts
0.47
Qes
0.50
Qms
6.93
Vas (Liters)
39
Xmax (mm)
6.5
SPL (dB @ 1w/1m)
86.9
Magnet Weight (oz)
43 oz. (1.22 kg.)
Power Handling (Watts RMS)
250 Watts RMS
500 Watts Max
Woofer Displacement
0.039 cu. ft. (1.1 Liters)
Cutout Diameter
9.125 in. (232 mm)
Mounting Depth
4.319 in. (109 mm)
Shipping Weight
8.8 Lbs. (3.99 kg)
Sealed Box Volume (Vb)
0.59 cu. ft. (16.7 Liters)
Vented Box Volume (Vb)
1.4 cu. ft. (39.6 Liters

CEA-2031 Compliant
CEA-2031 Guidelines
Size
10"
Subwoofer Type
Standard
Speaker Connector
Dual 12 AWG compression
Nominal Impedance
Dual 4-Ohm
Voice Coil Diameter
2" (51 mm)
Voice Coil Type
Dual Voice Coil
Le (mH)
3.9
Xmax (mm)
6.5
Fs (Hz)
34.9
Re (Ohms)
7.83
Sd (cm2)
339.8
Qts
0.53
Qes
0.58
Qms
6.44
Vas (Liters)
38.4
SPL (dB @ 1w/1m)
86.6
Power Handling (Watts RMS)
250 Watts RMS
500 Watts Max
Magnet Weight (oz)
43 oz. (1.22 kg)
Woofer Displacement
0.039 cu. ft. (1.1 Liters)
Cutout Diameter
9.125 in. (232 mm)
Mounting Depth
4.319 in. (109 mm)
Shipping Weight
8.8 Lbs. (3.99 kg)
Sealed Box Volume (Vb)
0.59 cu. ft. (16.7 Liters)
Vented Box Volume (Vb)
1.4 cu. ft. (39.6 Liters)
