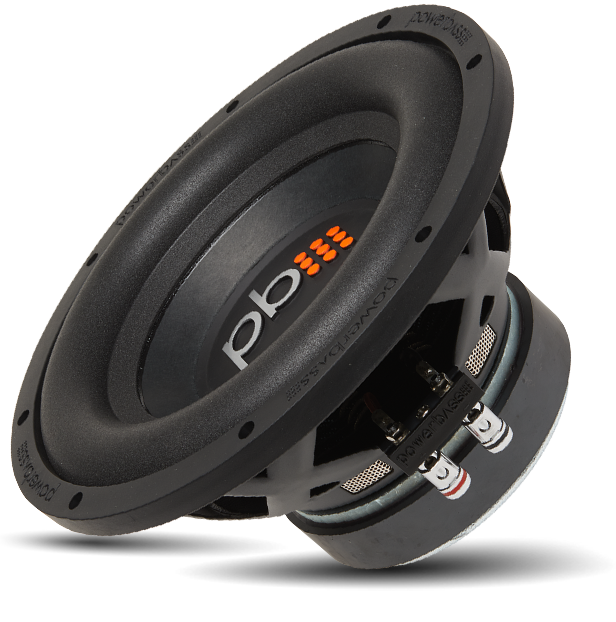

S-1004 10" SUBWOOFER BIG BASS SOUND AT AN AFFORDABLE PRICE
Our improved S-Series subwoofers bring value to a whole new level. This year we rounded out the line by adding a couple of 8-inch subwoofers. You will be impressed with the oversized motor structure for high-power handling and greater reliability during heavy hitting bass passages.
PowerBass S-Series woofers featuring a 4-layer wool/paper cone now sport a treated non-resonant finished, stamped steel basket that is custom tooled with our distinctive X design. A 2” BASV voice coil former (1.5" on the 8") is used on the 10 and 12-inch models and like the entire Autosound range, we also offer a Large Roll foam surround for precise linear movement of the cone, which equals loud bass.
The S Series subwoofers are well-suited for small sealed or ported enclosures and use dual 4-ohm and single 4-ohm voice coils for multiple bass applications. Now more than ever, our S-Series woofers provide lots of value without sacrificing hard-hitting performance.
- 10" Single 4-Ohm Subwoofer
- 275 watt RMS/550 Watts Max
- Proprietary DDC Coated Paper/Wool Cone
- Pressed 4-Layer Large Roll Foam Surround
- 2" Vented BASV Voice Coil Former
- Perimeter Aero-Vent Voice Coil Cooling Vents
- Non Resonance DDC Coated Stamped Steel Basket
- Rubber Mounting Gasket/Trim Ring
- Chrome Push Terminals
- Optimally Designed for Both Small Sealed or Ported Enclosures
Specifications
- Subwoofer Frequency Range: 33 Hz - 500 Hz
- Inputs: Single Coil
- Fs: 33.5 Hz
- Cutout Diameter: 9 1/8 (230.1mm)
- BL: 11.6
- Nominal Impedance: Single 4-ohm
- Voice Coil Size: 2 in
- Material: Pressed Wool / Paper
- Sensitivity (1W / 1M): 86 dB
- Motor Structure: 116 oz
- Mounting Depth: 5.25 in
- Xmax: 9 mm
- Spl: 86.6 dB
- No: 0.29%
- Qts: 0.4
- Qes: 0.43
- Qms: 5.12
- Mms: 94.2 g
- Cms: 270 uM/N
- Vas: 43.8 Ltr
- SD: 330.06 sqCM
- Test Impedance: 3.2-ohms
- VC Impedance: 4-ohm
- Size: 10 in
- Sensitivity: 86 dB
- Frequency Response: 33 Hz - 500 Hz
- Voice Coil Size: 2 in
- Power Handling (RMS/Peak): 275 / 550 watts
