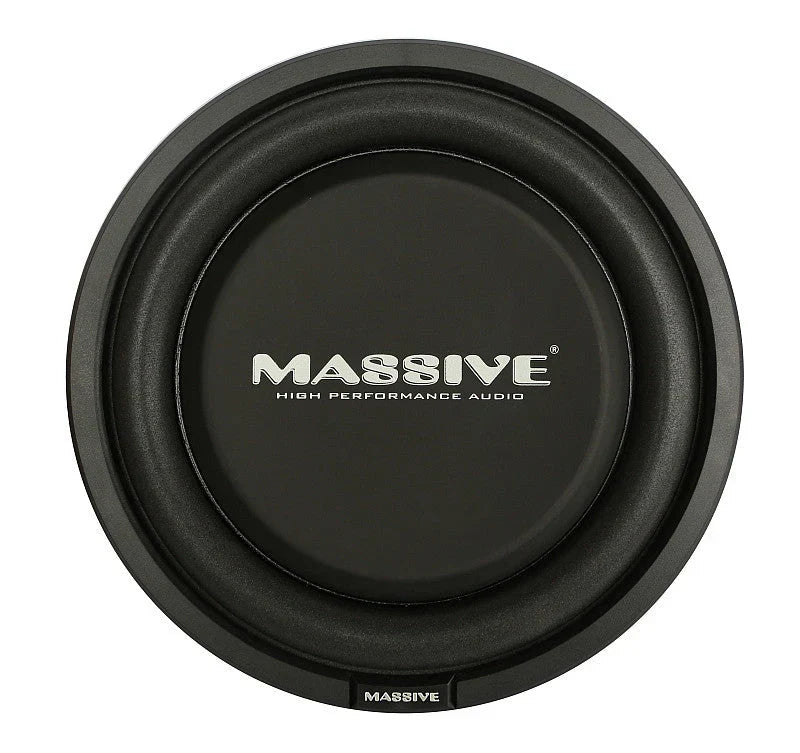

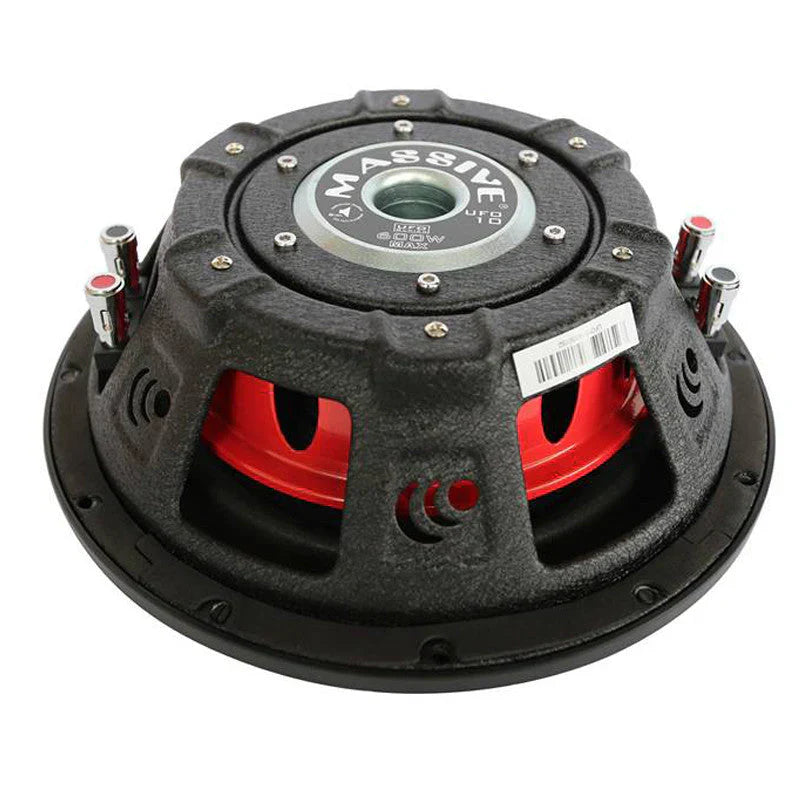

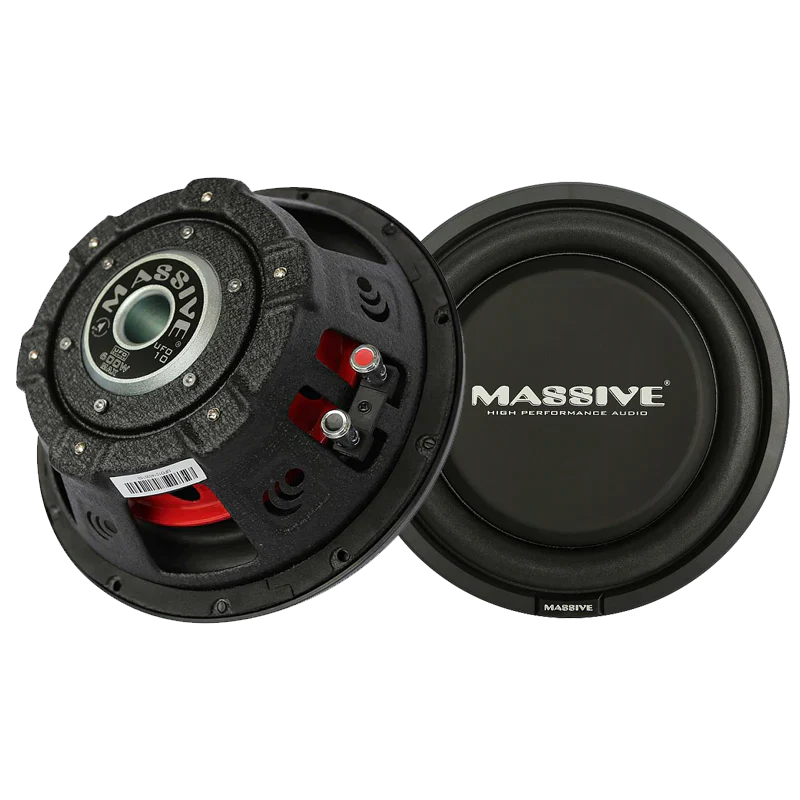

Massive Audio UFOv2 10" Shallow Mount Subwoofer

The Massive Audio UFOv2 10" Shallow Mount Subwoofer is a compact, high‑performance woofer designed to deliver deep bass in spaces with limited mounting depth. Its 3.1" total depth and flat‑cone approach unlock room under rear seats and behind-seat enclosures without sacrificing low‑end output.

• Size: 10". A true 10" driver footprint that blends deep bass with a compact install footprint.
• RMS Watts: 300 W. Provides steady, controlled power handling for clean bass performance in daily driving and loaded systems.
• Peak Watts: 600 W. Headroom for brief transients and dynamic musical peaks while maintaining reliability.
• Cone: PP Injection. A molded polypropylene cone contributes to stiffness and low distortion while keeping the cone lightweight for fast transients.
• Voice Coil: 2.5" Dual 4 Ohm. Dual windings offer wiring flexibility and impedance options to suit different amplifier setups.
• Surround: Pressed Foam. Durable edge suspension that supports linear cone excursion and reduces unwanted flex or rubbing at high playback levels.
• Magnet: High Flux Y30 Strontium. A compact, high‑strength magnet design enables a smaller motor width while preserving motor force for strong bass in tight enclosures.
• Terminals: 5 Way Binding Push. Flexible wiring options for multi‑coil configurations and secure, persistent connections.
• Basket: Heavy Gauge Steel. Rigid frame to resist flex and maintain speaker alignment under extreme bass demands.
• Tinsel Leads: Poly Cotton Spider With Woven Round. Robust leads and spider assembly help minimize mechanical noise and keep the cone under control during deep excursions.
• X‑Max: 8 mm. Substantial excursion for strong low‑end output without excessive enclosure size.
• SPL: 86 dB. Measured efficiency indicating usable output for typical car audio listening levels with appropriate power.
• Box (Sealed): 0.77 ft³. Sealed enclosures provide tight, accurate bass response with controlled cone motion for precise musical transients.
• Box (Ported): 12"H x 14"D x 11"W; Round Port 3" x 8". Ported design supports deeper bass extension; ported volume listed as 0.9 ft³ after displacement at 38 Hz with 14 square inches of port area.

The UFOv2 family is built for installations where space is at a premium yet bass performance remains a priority. Its shallow depth, flat cone, and vented cooling path help maintain performance and reliability in automotive and architectural applications, while the 2.5" voice coil and woven lead assembly keep thermal and mechanical behavior under control during sustained bass notes.
